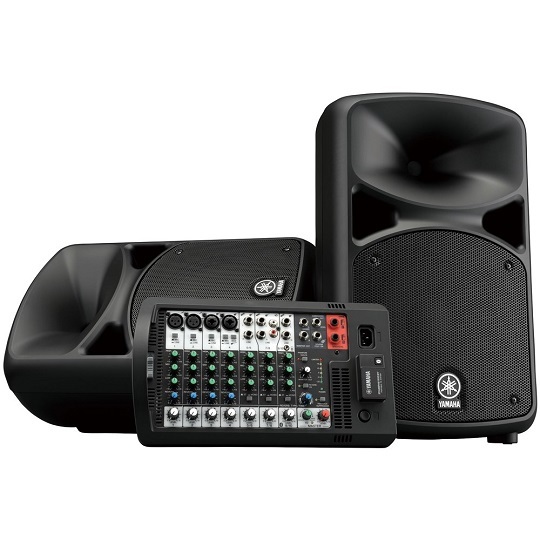

Yamaha StagePAS 600BT Portable PA with Bluetooth

SKU: STAGEPAS600BT

Have a Question

An Ideal Compact PA for Small-to-midsized Venues

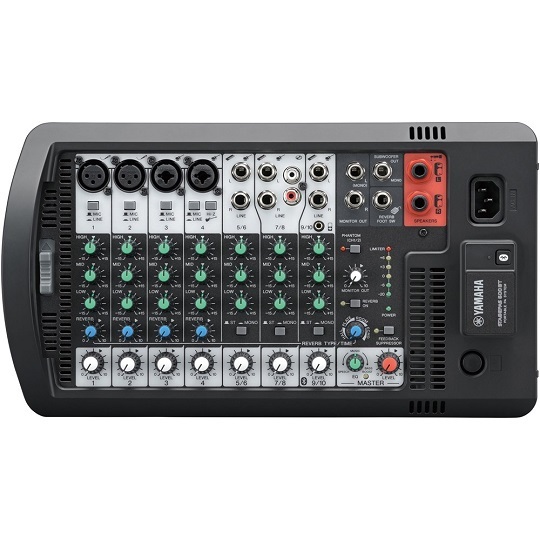

Whether you're a public speaker, singer-songwriter, or in a band; the Yamaha StagePas 600BT is your all-in-one PA solution for pristine sound in small-to-midsized venues. The StagePas 600BT offers extensive connectivity. Equipped with Bluetooth wireless audio connectivity, the 600BT can stream audio to your StagePas system from any Bluetooth-paired device such as a smartphone, tablet, or laptop up to 33 feet away. The StagePas 600BT offers 3-band EQ on each channel. Four mic/line inputs feature XLR jacks, with phantom power on channels 1–2 and 1/4" XLR combo inputs on channels 3–4; channel 4 is switchable to hi-Z for instruments with passive pickups.

In addition, there are three stereo line input channels switchable for mono operation, plus support for RCA and 1/8" stereo mini inputs. Monitor and subwoofer outputs on the 600BT provide easy expandability. For shows that require a monitor mix or extended low end, simply connect powered speakers such as Yamaha’s DXR Series full-range speakers or DXS Series subwoofers.

Bluetooth connectivity for setup flexibility

At Musiclab, we've found the StagePas 600BT's Bluetooth connectivity handy for effortlessly incorporating backing tracks, loops, intermission music, or even software instruments into your live performance setup without a cable — while placing the device for maximum access/safety. Audio is routed to channels 9/10 on the StagePas 600BT's mixer. Couldn't be simpler!

Lightweight and portable

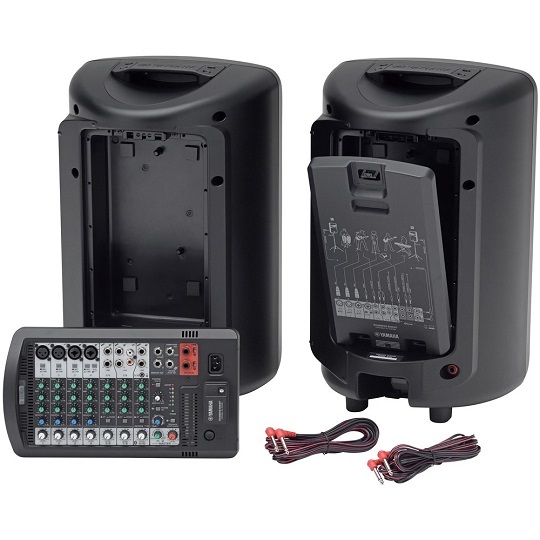

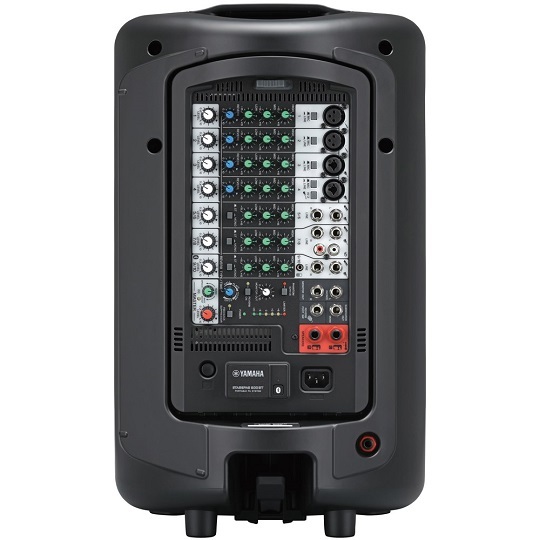

The StagePas 600BT consists of two lightweight speakers and a detachable powered mixer, a pair of speaker cables, and a power cable, for a complete portable sound reinforcement solution that you can set up easily in virtually any environment. The mixer also fits into one of the speaker enclosures, making for easy transport and a smaller footprint while in use.

Excellent sound quality without hassles

Advanced Yamaha technologies help the StagePas achieve excellent professional sound quality without hassles. Built-in feedback suppression targets problem frequencies before they become audible. With one-knob control, Yamaha Master EQ optimizes audio to match its environment. Channels 1 through 4 are equipped with independent sends for the four studio-grade reverb types (Hall, Plate, Room, and Echo), which are derived from Yamaha's acclaimed SPX series effects processors. You can also turn Reverb on and off via an optional footswitch — perfect for when an event host is speaking between songs.

Intelligent power management

With the StagePas 600BT delivering 680 watts of power, you are sure to be heard clearly throughout small-to-midsized venues. Intelligent DSP and advanced limiting protect the system and ensure the most efficient power usage. What's more, custom designed waveguides help the StagePas achieve broad sound distribution for maximum coverage.

Yamaha StagePas 600BT Portable PA with Bluetooth Features:

Full stereo operation with 680 watts of power; ideal for small-to-midsized venues
1-Knob Master EQ; 3-band EQ on each channel
One Button Intelligent Feedback Suppression
Best-in-class sound quality
High-quality SPX digital reverb
Class 2 Bluetooth v4.1 audio streaming

		STAGEPAS 400BT	STAGEPAS 600BT
Outline
Type		Powered mixer with 2 passive speakers	Powered mixer with 2 passive speakers
Mixing capability	Mixing channels	8	10
	Input channel functions	Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8	Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
	Output channel functions	Feedback suppressor, 1-Knob Master EQ™	Feedback suppressor, 1-Knob Master EQ™
I/O	Inputs	4 mono mic / line + 4 mono / 2 stereo line	4 mono mic / line + 6 mono / 3 stereo line
	Phantom power	+30V (CH1, 2)	+30V (CH1, 2)
	Outputs	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF	SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
	Bluetooth	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m	Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
	Control and others	Reverb foot switch	Reverb foot switch
Input Channel Function	Hi-Z	CH4	CH4
	EQ HIGH	HIGH Shelving: 8 kHz	HIGH Shelving: 8 kHz
	EQ LOW	LOW Shelving: 100 Hz	LOW Shelving: 100 Hz
	EQ MID	-	MID peaking: 2.5 kHz
On-board processors	DSP	SPX digital reverb (4 program, parameter control)	SPX digital reverb (4 program, parameter control)
On-board amplifiers	Maximum output power @4ohms	400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)	680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
General specifications
Speaker type		Two-way bass-relfex speakers	Two-way bass-relfex speakers
Frequency range (-10dB)		55 Hz - 20 kHz	55 Hz - 20 kHz
Nominal coverage	H	90°	90°
Nominal coverage	V	60°	60°
Floor Monitor Angle		50°	50°
Components	LF	8" (20 cm) cone	10" (25 cm) cone
Components	HF	1" (2.54 cm) voice coil compression driver	1.4" (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis)		125 dB SPL / speaker	129 dB SPL / speaker
Power requirements		100 V - 240 V 50 Hz/60 Hz	100 V - 240 V 50 Hz/60 Hz
Power consumption		30 W (Idle), 70 W (1/8 Power)	35 W (Idle), 100 W (1/8 Power)
Pole socket		34.8-35.2 mm pole socket with StageLok™	34.8-35.2 mm pole socket with StageLok™
Accessories		Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties	Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options		Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF	Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others		Handle: 1 x Top	Handle: 1 x Top
Dimensions (W x H x D)		Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm	Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight		18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)	25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
