Yamaha STAGEPAS 400BT is a 400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
An Ideal Compact PA for Intimate Venues
Whether you're a public speaker, singer-songwriter, or in a band; the Yamaha STAGEPAS 400BT is your all-in-one PA solution for pristine sound in smaller venues. The STAGEPAS 400BT offers extensive connectivity. Equipped with Bluetooth wireless audio connectivity, the 400BT can stream audio to your StagePas system from any Bluetooth-paired device such as a smartphone, tablet, or laptop up to 10 metres away. The STAGEPAS 400BT offers 2-band EQ on each channel. Four mic/line inputs feature XLR jacks, with phantom power on channels 1–2 and 1/4" XLR combo inputs on channels 3–4; channel 4 is switchable to hi-Z for instruments with passive pickups.
In addition, there are two stereo line input channels switchable for mono operation, plus support for RCA and 1/8" stereo mini inputs. Monitor and subwoofer outputs on the 400BT provide easy expandability. For shows that require a monitor mix or extended low end, simply connect powered speakers such as Yamaha’s DXR Series full-range speakers or DXS Series subwoofers.
Bluetooth connectivity for setup flexibility
At Musiclab, we've found the STAGEPAS 400BT's Bluetooth connectivity handy for effortlessly incorporating backing tracks, loops, intermission music, or even software instruments into your live performance setup without a cable — while placing the device for maximum access/safety. Audio is routed to channels 7/8 on the STAGEPAS 400BT's mixer. Nice and Easy!
Lightweight and portable

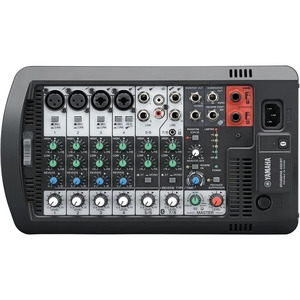

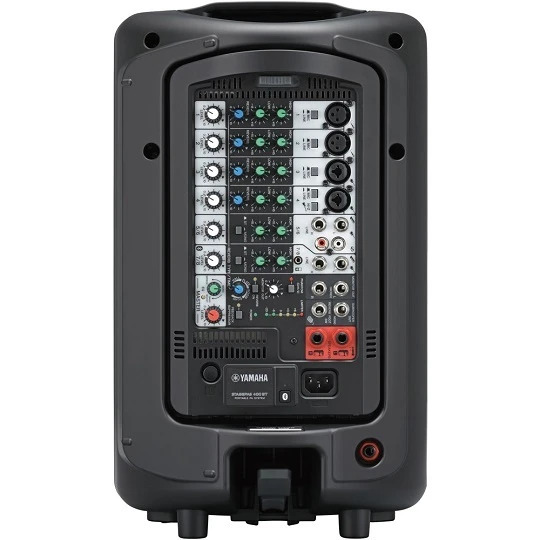

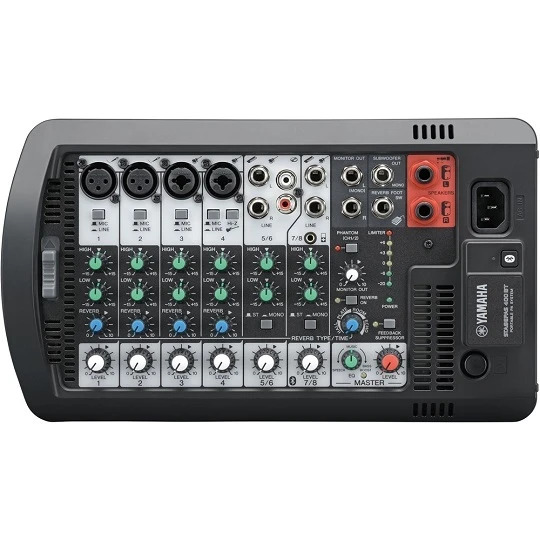

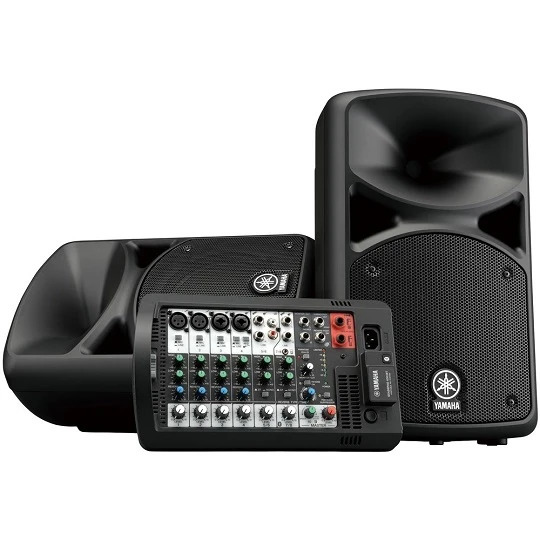

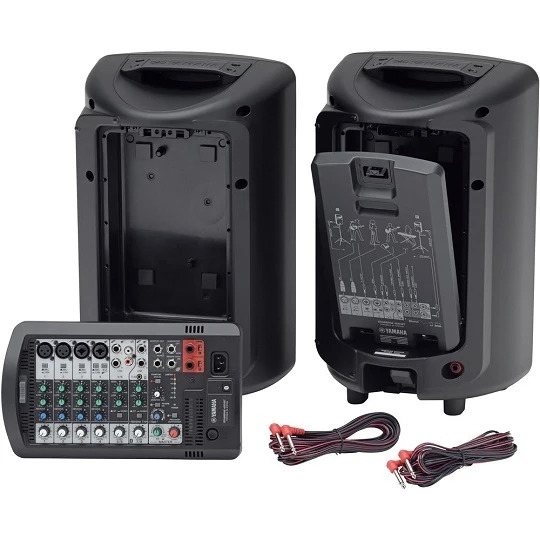

The STAGEPAS 400BT consists of two lightweight speakers and a detachable powered mixer, a pair of speaker cables, and a power cable, for a complete portable sound reinforcement solution that you can set up easily in virtually any environment. The mixer also fits into one of the speaker enclosures, making for easy transport and a smaller footprint while in use.
Excellent sound quality without hassles
Advanced Yamaha technologies help the STAGEPAS achieve excellent professional sound quality without hassles. Built-in feedback suppression targets problem frequencies before they become audible. With one-knob control, Yamaha Master EQ optimizes audio to match its environment. Channels 1 through 4 are equipped with independent sends for the four studio-grade reverb types (Hall, Plate, Room, and Echo), which are derived from Yamaha's acclaimed SPX series effects processors. You can also turn Reverb on and off via an optional footswitch — perfect for when an event host is speaking between songs.
Intelligent power management
With the STAGEPAS 400BT delivering 400 watts of power, you are sure to be heard clearly throughout smaller venues. Intelligent DSP and advanced limiting protect the system and ensure the most efficient power usage. What's more, custom designed waveguides help the STAGEPAS achieve broad sound distribution for maximum coverage.
400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
- 400W (200W + 200W) power output
- High quality speakers (LF:8" woofer/ HF:1" voice coil compression driver)
- Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
- Bluetooth® audio streaming
- 1-Knob Master EQ™ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 2-band channel EQ
- Switchable stereo/ mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
- Optional reverb footswitch
|STAGEPAS 400BT||STAGEPAS 600BT|
|Type||Powered mixer with 2 passive speakers||Powered mixer with 2 passive speakers|
|Mixing capability||Mixing channels||8||10|
|Input channel functions||Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8||Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10|
|Output channel functions||Feedback suppressor, 1-Knob Master EQ™||Feedback suppressor, 1-Knob Master EQ™|
|I/O||Inputs||4 mono mic / line + 4 mono / 2 stereo line||4 mono mic / line + 6 mono / 3 stereo line|
|Phantom power||+30V (CH1, 2)||+30V (CH1, 2)|
|Outputs||SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF||SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF|
|Bluetooth||Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m||Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m|
|Control and others||Reverb foot switch||Reverb foot switch|
|Input Channel Function||Hi-Z||CH4||CH4|
|EQ HIGH||HIGH Shelving: 8 kHz||HIGH Shelving: 8 kHz|
|EQ LOW||LOW Shelving: 100 Hz||LOW Shelving: 100 Hz|
|EQ MID||-||MID peaking: 2.5 kHz|
|On-board processors||DSP||SPX digital reverb (4 program, parameter control)||SPX digital reverb (4 program, parameter control)|
|On-board amplifiers||Maximum output power @4ohms||400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)||680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)|
|Speaker type||Two-way bass-relfex speakers||Two-way bass-relfex speakers|
|Frequency range (-10dB)||55 Hz - 20 kHz||55 Hz - 20 kHz|
|Floor Monitor Angle||50°||50°|
|Components||LF||8" (20 cm) cone||10" (25 cm) cone|
|HF||1" (2.54 cm) voice coil compression driver||1.4" (3.56 cm) voice coil compression driver|
|Maximum output level (1m; on axis)||125 dB SPL / speaker||129 dB SPL / speaker|
|Power requirements||100 V - 240 V 50 Hz/60 Hz||100 V - 240 V 50 Hz/60 Hz|
|Power consumption||30 W (Idle), 70 W (1/8 Power)||35 W (Idle), 100 W (1/8 Power)|
|Pole socket||34.8-35.2 mm pole socket with StageLok™||34.8-35.2 mm pole socket with StageLok™|
|Accessories||Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties||Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties|
|Options||Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF||Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF|
|Others||Handle: 1 x Top||Handle: 1 x Top|
|Dimensions (W x H x D)||Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm||Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm|
|Weight||18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)||25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)|
Yamaha StagePas 400BT Portable PA with Bluetooth Features:
- Full stereo operation with 400 watts of power; ideal for intimate venues
- 1-Knob Master EQ; 2-band EQ on each channel
- One Button Intelligent Feedback Suppression
- Best-in-class sound quality
- High-quality SPX digital reverb
- Class 2 Bluetooth v4.1 audio streaming
