Yamaha MG20XU Mixer with USB and FX

SKU: MG20XU

$799.00
RRP $1,069.00
SAVE $270.00
Share:



Quality and power in studio or on stage.

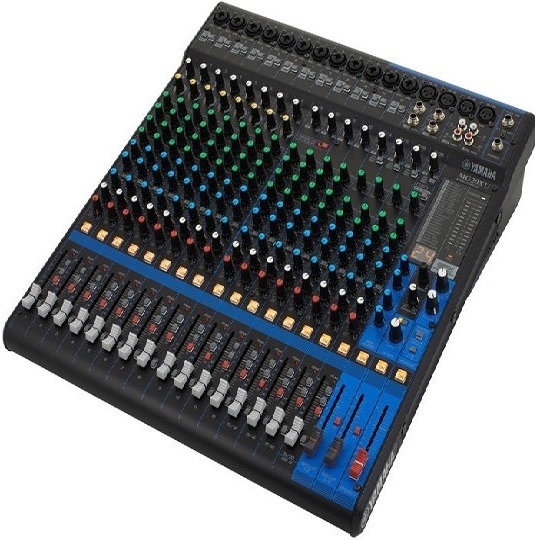

The Yamaha MG20XU is a 20 channel analogue mixer designed for both home recording studios as well as live sound applications. It features 16 “D-Pre” mic preamps, 12 mono and 4 stereo line inputs, 4 aux outputs, 4 group busses as well as 1 stereo bus. Each mic input features a 80Hz HPF, 3 band EQ with sweepable mid, level and pan controls as well as 48v Phantom Power for recording condenser microphones. Channels 1 to 8 also include Yamaha’s “One Knob Compression”. The 3 stereo channels can either accept ¼” jack or RCA plugs and include a 3 band EQ, level and pan controls.

The MG16XU’s effects engine features 24 effects, adjustable on each channel via an effects send. There is both a stereo XLR and TRS output for connecting to PA or monitor speakers as well as a headphone output. There is also an additional monitor output as well as USB for recording 24bit/192kHz to a computer. The MG20XU is ideal for those needing a simple yet comprehensive analogue mixer that is robust and affordable.

Includes Cubase AI software.

Features

  • 20 Channels
  • 16 Microphone inputs (XLR/jack) with +48V phantom power
  • Channels 1-8 with built-in compressor
  • 3 Band EQ with sweepable mids
  • High-Pass filter and 26 dB pad switch
  • SPX Effect processor with 24 programs
  • 4 Stereo inputs (jack) with 3-band EQ
  • XLR output
  • 2 Group BUS outputs
  • 4 AUX sends on each channel
  • USB with 2 stereo inputs/outputs (compatible with iPad version 2 or higher, Camera Connection Kit required)
  • Dimensions: 444 x 130 x 500 mm
  • Weight: 7.1 kg
  • Includes a rack mount kit and Cubase AI DAW software as download
Incl. Effects Unit Yes
19" Rack Compatible Yes
Mic Preamps 16
Stereo Inputs 4
Aux 4
Phantom power Yes
Integrated Power Supply Yes
Parametric No
Digital Interface Yes

SKU MG20XU
Brand Yamaha

Mixer

  • 20 Channels
  • 16 Microphone inputs (XLR/jack) with +48V phantom power
  • Channels 1-8 with built-in compressor
  • 3 Band EQ with sweepable mids
  • High-Pass filter and 26 dB pad switch
  • SPX Effect processor with 24 programs
  • 4 Stereo inputs (jack) with 3-band EQ
  • XLR output
  • 2 Group BUS outputs
  • 4 AUX sends on each channel
  • USB with 2 stereo inputs/outputs (compatible with iPad version 2 or higher, Camera Connection Kit required)
  • Dimensions: 444 x 130 x 500 mm
  • Weight: 7.1 kg
  • Includes a rack mount kit and Cubase AI DAW software as download
