Yamaha DXS12MkII 12" Powered PA Subwoofer

SKU: DXS12MKII

Have a Question

Yamaha DXS12 MkII 12" Powered Subwoofer

For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, heart-stopping bass that defies its lightweight construction. Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure. Listeners will need to search for the source of this much low frequency performance.

DXS12 MkII 12" Subwoofer Features at a glance:

12" powered subwoofer with 1020W class-D power amplifier
High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
42Hz-150Hz frequency range is ideal for small to medium-sized applications
Built-in D-XSUB processing allows you to extend the frequency response even lower
Plywood cabinet is durable and acoustically optimized for minimal distortion
Cardioid mode for bass management onstage
Selectable X-OVER (80/100/120 Hz)
M20 and Ø35 mm dual pole sockets
Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)

Buy your Yamaha DXS12 MKII Subwoofer PA Spearker at the right price, from your Yamaha experts in Brisbane - Musiclab!

For more detailed information, please visit the manufacturer's website.

Yamaha DXS12 MkII 12" Powered Subwoofer Tech Specs:

Speaker type 12" powered subwoofer, Band-pass type
Frequency range (-10dB) 42 Hz - 150 Hz
Components LF 12" cone, 2.5" voice coil
Output power Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis) 134 dB SPL

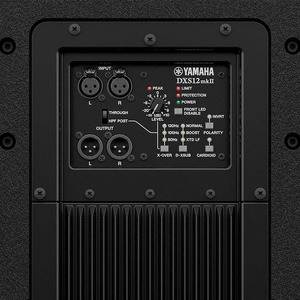

I/O connectors INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors D-XSUB: BOOST,XTENDED-LF, OFF
Cooling Natural convection
Power requirements 100V – 240V, 50Hz/60Hz
Power consumption 100W
Pole socket 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions W 400 mm (15.75")
H 567 mm (22.32")
D 570 mm (22.44")
Net weight 30.0 kg (66.1lbs)
Others Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black

SKU	DXS12MKII
Model #	DXS12MKII
Brand	Yamaha

5 Years

Yamaha DXS12 MkII 12" Powered Subwoofer Features:

12" powered subwoofer with 1020W class-D power amplifier
High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL
42Hz-150Hz frequency range is ideal for small to medium-sized applications
Built-in D-XSUB processing allows you to extend the frequency response even lower
Plywood cabinet is durable and acoustically optimized for minimal distortion
Cardioid mode for bass management onstage
Selectable X-OVER (80/100/120 Hz)
M20 and Ø35 mm dual pole sockets
Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS122)
