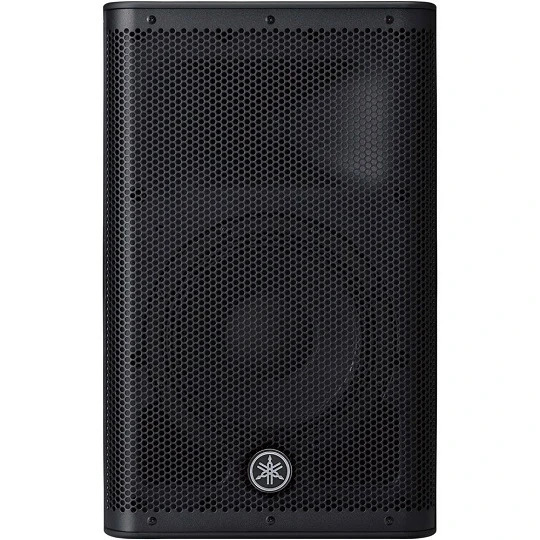

Yamaha DXR10 MKII 2-Way 10 inch Powered Speaker

SKU: DXR10MKII

$1,169.00
RRP $1,399.00
SAVE $230.00
Share:

or 4 payments of $292.25 with Info



Yamaha DXR10mkII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 132dB with its impressive 1100W of power, with exceptional high resolution clarity.




The Yamaha DXR10mkII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 132dB with its impressive 1100W of power, with exceptional high resolution clarity. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound. If you need more bottom end, the Yamaha DXR10mkII also pairs well with Yamaha DXS15mkII and DXS18mkII subwoofers for added low end punch and power.

The Yamaha DXR mkII Series powered loudspeakers have more SPL and feature a larger, yet much lighter 1.75 inch Neodymium HF compression drivers for extremely clear voice reproduction and musicality. Yamaha worked in tight collaboration with touring loudspeaker specialists NEXO, adding deep industry insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

The Yamaha DXR10 mkII features 48bit DSP processing for high definition sound quality, and Yamaha's proprietary FIR-X tuning which simultaneously optimises frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.



For more information on Yamaha DXR, please visit the manufacturer's website.





• Speaker type 10 inch 2-way, Bi-amp powered speaker, Bass-reflex type

• Frequency range (-10dB)56Hz - 20kHz

• Nominal coverage H 90°, V 60°

• Components LF Diameter: 10" cone, Voice Coil: 2 inch, Magnet: Ferrite

• HF Diaphragm: 1.75", Type: 1" throat compression driver, Magnet: Neodymium

• Crossover FIR-X tuning (linear phase FIR filter)

• Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)

• Maximum output level (1m; on axis) 132dB SPL

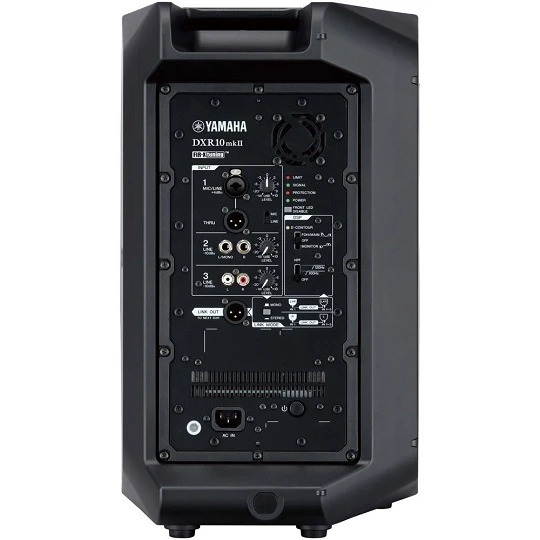

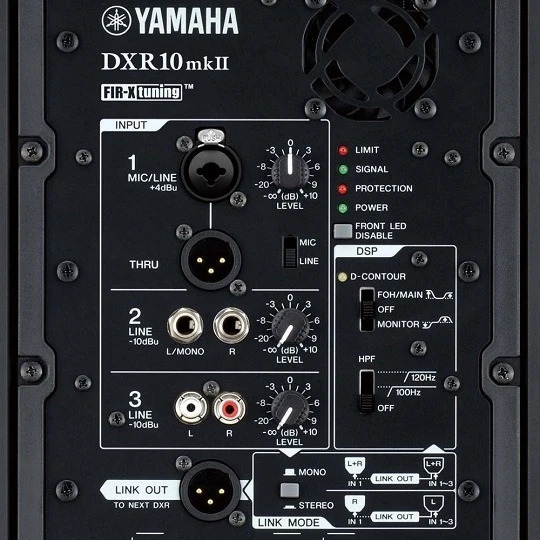

• I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1

• Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF

• Power requirements 100V - 240V, 50Hz/60Hz

• Power consumption 90W

• Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)

• Pole socket 35mm with 2-way features (0 or 7 degrees)

• Dimensions W 305mm (12") x H 502mm (19 6/8") x D 310mm (12 2/8")

• Net weight 13.9kg (30.6lbs)

• Accessories UB-DXR10 (U-bracket)

• Others Material: ABS (Matte Finish, Black)



SKU DXR10MKII
Model # DXR10MKII
Barcode # 4957812643382
Brand Yamaha



2 Years
