Yamaha AG06MK2 Live Streaming Mixer (Black)



The next generation AG series mixers brings in a new standard of live streaming mixers to help broadcast your message to the world. Featuring USB-C connectivity to power its improved circuitry, a new 4-pole (TRRS) mini I/O connector for even more flexible connectivity, and a new mute switch for crucial streaming moments.

With a surprisingly easy setup process with a variety of devices, the AG06MK2 lets you produce online content with high-resolution sound, either for real-time broadcast over digital streaming platforms such as TWITCH, YOUTUBE LIVE, or producing on-demand podcasts and videos. The AG06MK2 will elevate your production value considerably with background music, sound effects, and a level of sound quality that can’t be matched with a conventional computer / headset configuration.



Flexible Connections and LOOPBACK Functionality:

Including 2 XLR microphone and line in combo jacks with Yamaha’s well-loved microphone preamps featuring +48v phantom power, Hi-Z guitar/stereo line inputs, stereo RCA jacks, a headset input, a 4-pole mini I/O jack, and 2 pairs of monitor outputs, the AG06MK2 range of inputs and outputs allows for flexible recording and streaming. The USB-C connection also allows for high resolution 2-In/2-Out 24-bit, 192kHz recording and streaming. Connecting to a device allows you to use the LOOPBACK function which enables live broadcasting of all the microphones, instruments, and other audio sources along with background music from your PC / Mac or *IOS device.

*Apple Camera Connection Kit/ Lightning to USB Camera Adapter required.

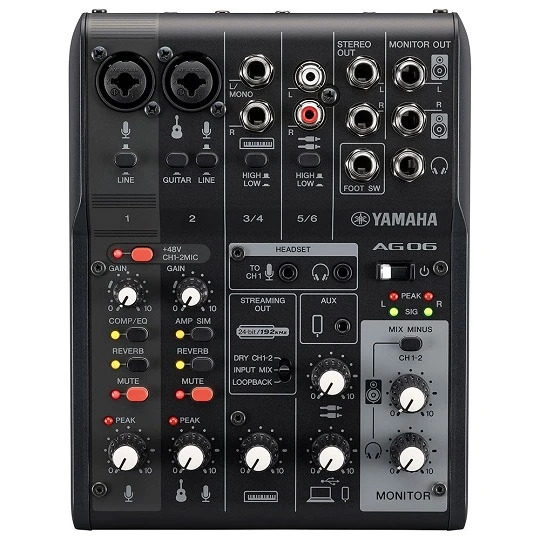

Intuitive Control and 1-TOUCH DSP Buttons:

AG06MK2 model features controls on the front panel for simple manual control of your voice, background music, and other audio content or sound effects. The mute switch allows you to mute your input for convenient streaming and can be controlled by an optional FC-5 footswitch to keep you hands-free. The 1-TOUCH COMP/EQ and REVERB allows you to add zero-latency professional sounding DSP processing to your sound at a press of a button as well as a 1-TOUCH amp simulator.



AG Controller App:

With the AG Controller app available on Win/Mac and IOS, you can access, and edit the compressor, EQ, high-pass filter, reverb, and amp simulator parameters of your 1-TOUCH DSP. The SIMPLE mode gives you easy and intuitive control of your AG06MK2, while DETAILED mode allows you more detailed adjustment of the DSP effects.



Durable and Portable Ready to Use:

The tough metal body of the AG06MK2 is extremely portable and easy to place on a keyboard, on a guitar case, or even on a mic stand using the optional BMS-10A adapter. With an optional power bank, you can power the AG06MK2 virtually anywhere. Cubase AI Digital Audio Workstation (DAW) and WaveLab Cast software is included with the AG06MK2 giving you a streamlined but powerful music production and live streaming tools for making high-quality recordings and broadcasts right out of the box.



For more detailed information on the Yamaha AG06MK2, please visit the manufacturer's website.
