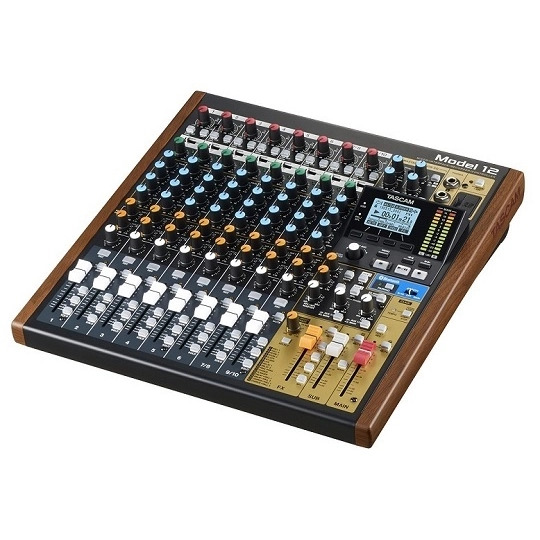

Tascam Model 12 Multitrack Recorder w/ Integrated USB Audio Interface & Analogue Mixer
SKU: MODEL-12
Tascam All-in-One Recording Flexibility
TASCAM's Model 12 is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers. Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs. The Model 12 supports your creative process, production, and workflow from start to finish including podcasting.
The Model 12's intuitive internal 12-track recorder records WAV files of up to 24-bit/48 kHz audio quality directly to an SD card, with 10-track playback. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported directly into a DAW for further editing or production. Furthermore, an onboard USB Type-C connector facilitates connecting a computer to the Model 12 for playback and recording utilizing a wide range of popular DAW's. Basic external DAW control (Faders, Mutes, Pans, Solos, Record arm, Play, Record, Stop, FF/Rew, Jog) using HUI/MCU protocol emulation is integrated for tactile control of most major DAW's.
A dedicated click output with TAP TEMPO allows the tempo to be monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to monitor the tempo when recording. The Model 12 also features standard MIDI in/out connectors allow connection with a wide range of keyboards, drum machines, controllers, and other sources that employ MIDI connectors. The Model 12 can also be used for synchronized operation of multi-track recorders and other external devices like drum machines.
The Model 12 incorporates several features for podcasting and internet streaming like mix-minus, smartphone input, multiple mic-ready channels, Bluetooth pairing, dual headphone monitoring, and internal multi-track recording. Use the Model 12 as a versatile live production recorder, USB audio interface and live streaming tool. Additionally, the Model 12's seamless integrated workflow facilitates less focus on the technical and more on the creative. The comfortable, familiar feel of the Model 12's 60mm faders and 1-knob compressor, 3-band EQ, and TASCAM’s high-quality reverb effects allow fast tweaking of mixes and tones.
TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamps with EIN (Equivalent Input Noise) of -128dB ensure natural low noise and high-grade sound quality. Additionally, Hi-Z line level inputs are included on all channels for direct instrument input. The compact Model 12 also packs 8 XLR mic inputs (with +48V support), 10 TRS line inputs, a 3.5mm (1/8") TRRS input (for Smartphone) and Bluetooth 5.0 input to handle any small format recording or live production environment. Selectable PFL/AFL modes and solo in place (SIP) allow for flexible monitoring of individual channels, eliminating the need to mute each single channel when dialling in the perfect mix.
Tascam 12 Features at a Glance:
-
10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
-
TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
-
1-knob compressor and 3 band EQ installed on all input modules
-
Equipped with 60mm faders
-
Selectable PFL/AFL modes and the in-place solo (SIP)
-
Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
-
Dual headphone output with individual volume and source selection
-
TASCAM FX equipped
-
Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
-
12 in / 10 out USB audio interface function (USB Type-C connector)
-
Built-in metronome function
-
Bluetooth® 5.0 input with AAC and SBC codec support
-
Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
-
Supports simple DAW control (HUI/MCU protocol emulation)
-
Click output with TAP TEMPO support
-
Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
-
Smartphone input with mix-minus function
Buy your Tascam Model 12 at the right price from your Tascam experts in Brisbane - Musiclab!
For more information, please visit the manufacturer's website.
Tascam Model 12 Specs:
Recording section
- Supported Media SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB)
- Class 10 or higher required.
- File System SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
- Recording File Format WAV(BWF)
- Playback Format WAV, BWF
- Sampling Frequency 44.1k / 48k Hz
- Bit Depth 16 / 24 bit
- Maximum Recordable ChannelNumber 12ch (10ch + 2 stereo mix)

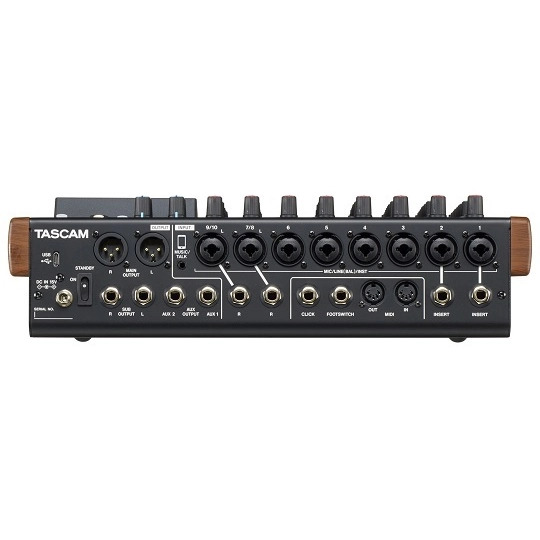

- Audio Inputs
- MIC IN CH1 to 6, 7, 9
- Connector XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
- Maximum Input Level +10dBu
- Nominal Input Level -8dBu
- Minimum Input Level -58dBu
- Gain Adjustable Range 0 to 50dB
- Input Impedance 1.8k ohm
- Phantom Power supply +48V
- LINE IN CH1 to 6, 7/8, 9/10
- Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
- Maximum Input Level +22dBu
- Nominal Input Level +4dBu
- Gain Adjustable Range -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
- Input Impedance 22k ohm
- INST IN CH1 to 6, 7, 9
- Connector 1/4" (6.3mm) TS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
- Maximum Input Level +13.8dBV
- Nominal Input Level -4.2dBV
- Gain Adjustable Range -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7 and 9)
- Input Impedance 1M ohm
- INSERT CH 1 and 2
- Connector 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
- Return (Ring)
- Maximum Input Level +18dBu
- Nominal Input Level 0dBu
- Input Impedance 5k ohm
- Send (Tip)
- Maximum Output Level +18dBu
- Nominal Output Level 0dBu
- Output Impedance 100 ohm
- MUSIC/TALK CH 9/10
- Connector 1/8" (3.5mm) TRRS jack (for Smartphone, Unbalanced)
- Maximum Input Level +8dBV
- Nominal Input Level -10dBV
- Input Impedance 10k ohm
- Outouts
- MAIN OUTPUT
- Connector XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
- Maximum Output Level +22dBu
- Nominal Output Level +4dBu
- Output Impedance 200 ohm
- SUB OUT, AUX OUT
- Connector 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
- Maximum Output Level +16dBu
- Nominal Output Level -2dBu
- Output Impedance 200 ohm
- PHONES OUT PHONES 1 and 2
- Connector 1/4" (6.3mm) Stereo Phone jack
- Maximum Output Level 45mW + 45mW (32 ohm loaded)
- FOOTSWITCH Compatible with TASCAM RC-1F Foot Switch
- Connector 1/4" (6.3mm) TRS Phone jack
- CLICK Metronome click
- Connector 1/4" (6.3mm) TRS Phone jack
- USB Audio for connection with PC
- Connector USB Type-C
- Format USB2.0 High-Speed, Mass-storage class/USB Audio Class
- Sampling Rate 44.1k / 48k Hz
- Bit Depth 16 / 24 bit
- Maximum INPUT 12ch
- Maximum OUTPUT 10ch
- Bluetooth® to MAIN or CH 9/10
- Version 5.0
- Output Class Class 2 (Transmission range: approx. 33 ft. / 10 m)
- * Transmission range may vary, depending on surroundings.
- Supported Profile A2DP
- Supported A2DP Codecs SBC, AAC
- A2DP Content Protection SCMS-T
- Channel EQ
- Low-Cut 100Hz, -18dB / Octave
- Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
- Mid-Peaking +15dB / -15dB, 100Hz to 8kHz Variable, MID Band Q Fix, 0.5
- Low-Shelving +15dB / -15dB, Cut off frequency = 80Hz
- Master section EQ
- Hi-Shelving +15dB / -15dB, Cut off frequency = 10kHz
- MID-Peaking +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5/5
- Low-Shelving +15dB / -15dB, Cut off frequency = 60Hz
- Internal Effects
- Type
- HALL 1
- HALL 2
- ROOM 1
- ROOM 2
- PLATE
- STUDIO
- LIVE
- DELAY 1
- DELAY 2
- PING PONG
- CHORUS
- FLANGER
- DELAY + HALL 1
- DELAY + HALL 2
- CHORUS + HALL 1
- CHORUS + HALL 2
- *Fx type and settings can be stored in the library slot
- Power AC 100 to 240V, 50/60Hz
- Power Consumption 16W
- Dimensions 343(W) × 360(H) × 98.8(D)mm
- 13.5(W) × 14.2(H) × 3.9(D)inch
- (including knob height and protrusion)
- Weight 4.3 kg / 9.5 lb
- Operating Temperature 5 to 35 °C / 41 to 95 °F
- Include Items AC adapter, Owner's manual (with warranty)
Audio Performance
- Frequency Response 20Hz to 20kHz (+0.5/-0.5 dB, MIC IN to MAIN OUT)
- S/N ratio -103dBu (MAIN OUT, MAIN fader: nominal posirion)
- Equivalent Input Noise -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Total Harmonic Distortion 0.004% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)
- Crosstalk -95dB, channels / input and output
- (1kHz, PAN fully counter clockwise / fully clockwise)
- Maximum Gain 74dB (MIC to MAIN OUT)
- 50dB (MIC to INSERT OUT)
- 74dB (MIC to SUB OUT)
- 75dB (MIC to AUX 1/2 OUT)
- 24dB (USB/SD to MAIN OUT)
- (EQ flatten, PAN fully counter clockwise / fully clockwise)
Supported PC
Windows
- Compatible Computers Windows-compatible computer with a USB2.0 port
- CPU Dual core / 2GHz or faster
- Memory 2GB or more
- Driver USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
- Screen Resolution 1280 × 800 Dots or more
Mac
- Compatible Computers Apple Mac computer with a USB2.0 port
- CPU Dual core / 2GHz or faster
- Memory 2GB or more
- Driver Core Audio
- Screen Resolution 1280 × 800 Dots or more
SKU | MODEL-12 |
Barcode # | 043774034499 |
Brand | Tascam |
Tascam Model 12 Features:
- 10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
- TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
- 1-knob compressor and 3 band EQ installed on all input modules
- Equipped with 60mm faders
- Selectable PFL/AFL modes and the in-place solo (SIP)
- Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
- Dual headphone output with individual volume and source selection
- TASCAM FX equipped
- Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
- 12 in / 10 out USB audio interface function (USB Type-C connector)
- Built-in metronome function
- Bluetooth® 5.0 input with AAC and SBC codec support
- Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
- Supports simple DAW control (HUI/MCU protocol emulation)
- Click output with TAP TEMPO support
- Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
- Smartphone input with mix-minus function
