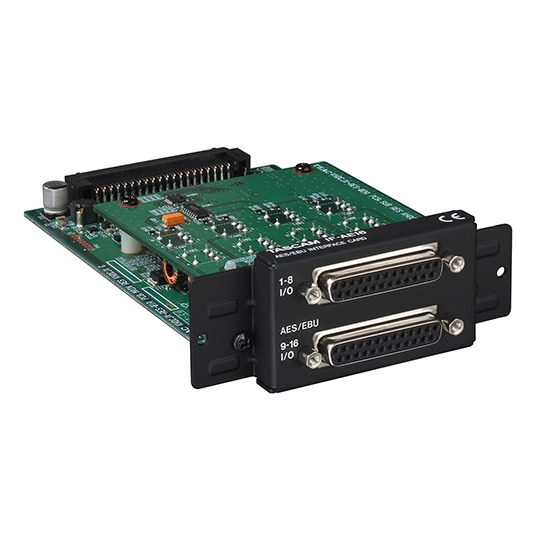

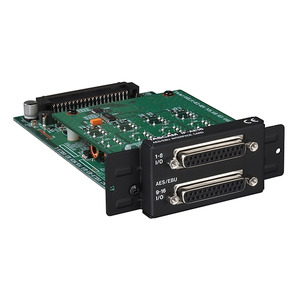

Tascam IF-AE16 16-In/Out AES/EBU Interface Expansion Card

For Sonicview 24 / Sonicview 16 / DA-6400

SKU: IF-AE16

$1,499.00
RRP $1,899.00
SAVE $400.00
Share:

or 4 payments of $374.75 with Info



16-In/Out AES/EBU interface expansion card for Tascam Sonicview 24 / Sonicview 16 / DA-6400




Tascam IF-AE16 16-In/Out AES/EBU Interface Expansion Card



The Tascam IF-AE16 is an optional 16-in/16-out AES/EBU interface card for the TASCAM expansion slot system. The IF-AE16 will convert sampling rates for each input and supports virtually all sampling frequency rates. It is compatable with the Sonicveiw 24, Sonicveiw 24xp, Sonicveiw 16, Sonicveiw 16xp, DA-6400, and DA-6400dp.

Buy your Tascam IF-AE16 16-In/Out AES/EBU Interface Expansion Card from your local Tascam experts at Musiclab Brisbane!

For more information on the Tascam IF-AE16, please visit the Tascam website.



IF-AE16 Specifications:



Formats and channels:

  •     16 channels at 44.1/48kHz, 24-bit

  •     16 channels at 88.2/96kHz, 24-bit (double speed)



Connector:

  •     D-Sub 25-pin



Locking screws:

  •     No. 4-40 UNC (inch type)



Output format:

  •     AES3-2003/IEC60958-4 (AES/EBU)



Input format (detected automatically):

  •     AES3-2003/IEC60958-4 (AES/EBU)

  •     IEC60958-3 (S/PDIF)*



    * Data format only. Physical formats comply with AES3-2003/IEC60958-4 (AES/EBU).



Input frequencies:

  •     44.1/48/88.2/96 kHz (when sampling rate converter OFF)

  •     32–192 kHz (when sampling rate converter ON)



Dimensions:

  •     107(W) × 40(H) × 161.5(D) mm (including protrusions)



Weight:

  •     222g



SKU IF-AE16
Model # IF-AE16
Brand Tascam

Please refer to the maunfacture's website.



IF-AE16 Features



  • 16-in/16-out AES/EBU interface

  • Built-in sampling rate converter for each input pair supporting 32k - 192kHz sampling rates * Settings can be made for each pair of channels

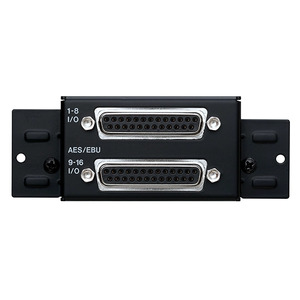

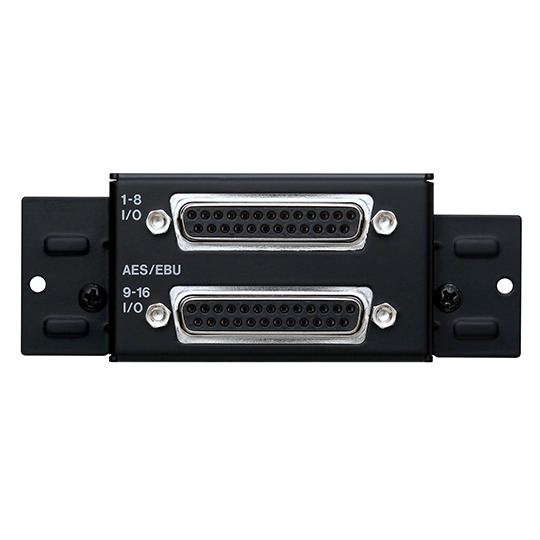

  • Two D-sub 25pin connectors for channels 1-8 and 9-16

  • S/PDIF also supported as an input data format

  • Input/output connector pin assignments* conform to AES59-2012 * AES59-2012, used by many pro audio devices, utilizes the "TASCAM standard" pinout

  • Compatible with the TASCAM Expansion Slot system
