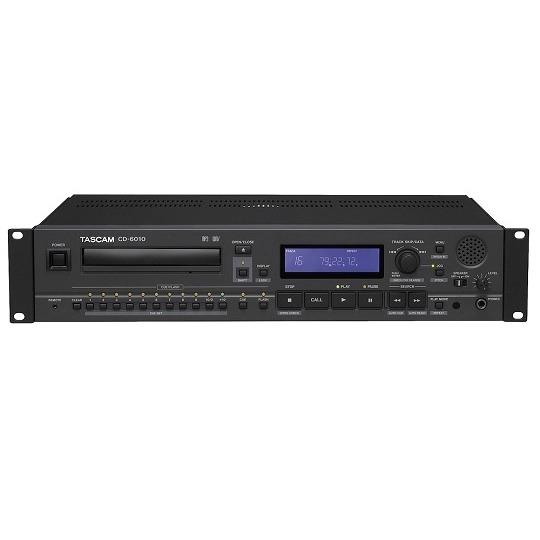

Tascam CD-6010 Professional Broadcast - Touring CD Player

SKU: CD-6010

$1,749.00
Share:

or 4 payments of $437.25 with Info

The Tascam CD-6010 offers top-of-the-line CD playback for any scenario. Designed with the Broadcast market in mind, this CD-player utilizes a tray-loading design, safety features and an emergency release function to accommodate all situations.




Top of the Line Broadcast Spec CD Player

The CD-6010 offers top-of-the-line CD playback for any scenario. Designed with the Broadcast market in mind, this CD-player utilizes a tray-loading design, safety features and an emergency release function to accommodate all situations. By employing the CD-5010B drive, rated highly among audiophiles, the CD-6010 offers high-quality sound that is rarely matched in rack-mounted players. With CD’s still so widely used in the Broadcast, Installation, and Touring markets, the CD-6010 is specified.

Another unique feature of the CD-6010 is a monitoring speaker on the front of the unit – perfect for cuing-up tracks straight from the unit if installed in a remote area or closet. The CD-6010 also has 20 points of cue memory, 20 tracks of flash start, and supports Auto Cue, Auto Ready and Incremental Play. Furthermore, it features ±16% pitch control for CD playback speed and up to 100 discs of program memory.

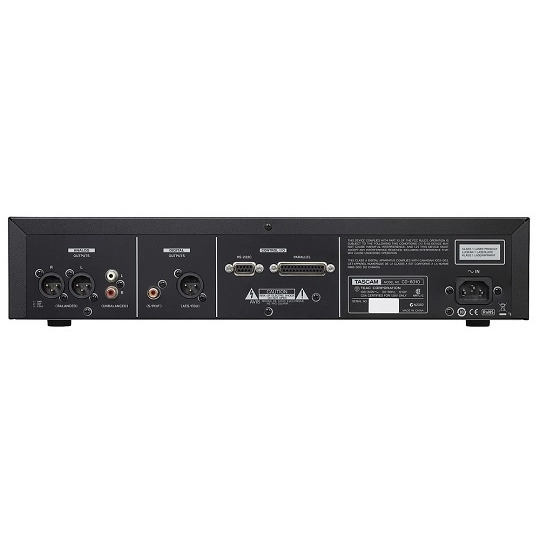

A complete compliment of interface ports are found on the rear panel. Both XLR balanced outputs and RCA unbalanced analogue outputs are provided, as well as SPDIF and AES/EBU digital outputs. The CD-6010 can be controlled through RS-232C, parallel control, or an optional RC-3F footswitch.

With its variety of ease-of-use, safety and bonus features, the CD-6010 is a prime 2U rack-mountable CD player for any professional application.



Equipped with a highly-durable TASCAM-manufactured CD drive that achieves high durability and operational efficiency

The CD-drive, the heart of a CD-player, is equipped with a highly-durable tray-type drive by TASCAM, tuned specifically for the CD-5010B. The open/close and disc loading movements have been tuned to have rapid response times in order to perfect operational efficiency. By installing the same drive as the high-end model CD-9010CF/CD-9010, a high level of durability and operational efficiency was also achieved with the CD-6010.



High sound quality playback achieved through the installation of high quality parts and meticulously-crafted circuit design

Sound quality playback of the CD-6010 also meets the demands of broadcasting settings with high demands in terms of the sound quality. Every single part used has undergone numerous listening tests at TASCAM acoustic evaluation facilities, resulting in the selection of superior parts. For the DAC, Asahi Kasei Electronics-manufactured AK4480 D/A converters have been employed, with a JRC NJM5532 employed for the operational amplifiers. In addition, these parts have been installed as part of a circuit design that balances operational efficiency and high sound quality. The power supply unit also employs a unit equivalent to that of the CD-9010CF/CD-9010.



Cue point flash-start function enables flash start form a point of selection

A feature of the CD-6010 is its usability supportive of various settings.The remote controller is not only compatible with a regular spec controller, but also compatible with the RC-SS20 and the RC-20, and is equipped with a D-sub 9 pin, RS-232C serial control terminal, and D-sub 25 pin parallel control terminal, allowing various external controls. In terms of functionality, a CD flash start playback can be performed using the main device’s number keys. In addition, a cue point start flash is also possible.
Furthermore, all the functions required for a professional CD-player have been covered.



Built-in monitor speaker enable disk checking and searching operations

In order to improve the monitoring efficiency of its operation, the CD-player contains a built-in monitor speaker, a first for TASCAM products. This means that search operations and checking can be conducted solely with the main device alone, even when the mixer has been muted. The CD-6010 is a new standard of CD player developed for broadcasting operations featuring high durability and versatility.



Tascam CD-6010 Features at a Glance:

  •     Highly reliable tray CD player for broadcast, installation or touring applications
  •     Audio CD-R/RW, MP3 (192 KBit/s) and WAV playback
  •     Flash start capability for up to 20 tracks
  •     Numeric keys for track selection and flash start
  •     Frame accurate search
  •     Memory for up to 20 cue points
  •     Skip back function (jump back a few seconds during playback)
  •     Auto cue, auto ready, incremental playback, intro check functions
  •     Resume function
  •     Index search for audio CDs
  •     Directory search for MP3 CDs
  •     Playback modes include Single, All and Program (up to 99 tracks)
  •     Memory for playback programs of up to 100 CDs
  •     Repeat modes include Single, All and A–B
  •     Selectable interval time between tracks
  •     ±16% pitch control
  •     Key original function (change speed only)
  •     Fade in/out (up to 10 seconds, in 0.5-second steps)
  •     Time display (track elapsed / track remain / total remain)
  •     Power-on play (timer function)
  •     Relay play with multiple units
  •     Fader start / event start
  •     Lock function to avoid accidental operation
  •     Anti-shock memory
  •     XLR balanced analogue output (output level may be customized by technical support)
  •     RCA unbalanced analogue output
  •     Coaxial digital output (SPDIF)
  •     XLR AES/EBU digital output
  •     Mono output
  •     Serial control (RS-232C, D-sub 9-pin)
  •     Parallel control port (D-sub 15-pin)
  •     Headphones output with dedicated volume control
  •     Switchable monitor loudspeaker
  •     Last mode memory (Playback mode / Program / Repeat mode / Time display)
  •     End Of Message notification
  •     Backlit LC display
  •     Removable power cable
  •     Rack-mountable chassis (2 U)
  •     Wireless remote control included (receiver can be disabled if required)

    Available as options:

  •         Footswitch for several functions (RC-3F)
  •         Direct play remote control (RC-20)
  •         Flash start remote control for instant access to 20 tracks, announcements or effects (RC-SS20)

For more detailed information, please visit the manufacturer's website.

Buy your Tascam CD-6010 Professional CD Player at the right price, from your Tascam and broadcast specialists in Brisbane - Musiclab!



Tascam CD-6010 Professional CD Player Specs:

Media and formats

  • Device type    CD player
  • Compatible discs    Compact discs (12cm/8cm, including CD-R discs)
  • Playable disc types    CD-A, CD-ROM (ISO9660 LEVEL 1/2/JOLIET format)
  • Playable file formats    Audio CD (CD-DA), MP3 (MPEG Audio Layer III), WAV

MP3 playback specifications:

  •   Audio Modes    stereo/mono
  •   Sampling Frequency    32 kHz/44.1 kHz/48 kHz
  •   Bit Rate    32 kbps–320 kbps and VBR

WAV playback specifications:

  •   Sampling Frequency    32 kHz/44.1 kHz/48 kHz
  •   Sampling Bit Rate    16 bit

Audio CD playback specifications

  •   Sampling Frequency    44.1 kHz
  •   Sampling Bit Rate    16 bit
  • Number of Channels    2

Analog audio outputs

  • Analog outputs (unbalanced)    RCA pin jacks
  •   Output impedance    200 Ω
  •   Standard output level    −10 dBV (0.32 Vrms)
  •   Maximum output level    +6 dBV (2.0 Vrms)
  • Analog outputs (balanced)    XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  •   Output impedance    100 Ω
  •   Standard Output level    +4 dBu (1.23 Vrms)
  •   Maximum Output level    +24 dBu (12.28 Vrms)
  • PHONES connector    6.3-mm standard stereo jack
  •   Maximum output power    45 mW + 45 mW or more (THD+N 0.1% or less, 32 Ω load)

Digital audio outputs



  • Digital output connector (COAXIAL)    RCA pin jack
  •   Supported signal formats    IEC 60958-3 standard for consumer use,IEC 60958-4 for professional use
  •   Output impedance    75 Ω
  •   Output level    0.5 Vpp
  • Digital output connector (XLR)    XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  •   Supported signal formats:    IEC 60958-3 standard for consumer use, IEC 60958-4 for professional use
  •   Output impedance    110 Ω

Control inputs and outputs:

  • REMOTE connector    2.5-mm TRS jack
  • RS-232C connector    D-sub 9-pin (female)
  • CONTROL I/O PARALLEL    D-sub 25-pin (female)

Audio performance:

  • Frequency response    20 Hz–20 kHz ±0.5 dB (JEITA)
  • S/N ratio    95 dB or more (JEITA)
  • Dynamic range    95 dB or more (JEITA)
  • Distortion    0.005% or less (JEITA)
  • Channel separation    95 dB or more (1 kHz, JEITA)

Power supply and other specifications:



  • Power supply    AC 100-240 V, 50-60 Hz
  • Power consumption    12.5 W
  • Dimensions (W x H x D)    483 mm x 94 mm x 306 mm
  • Weight    4.9 kg
  • Operating temperature range    5–35 °C
  • Installation angle    15° or less



SKU CD-6010
Model # CD-6010
Brand Tascam

Tascam CD-6010 Professional CD Player Features:

  •     Highly reliable tray CD player for broadcast, installation or touring applications
  •     Audio CD-R/RW, MP3 (192 KBit/s) and WAV playback
  •     Flash start capability for up to 20 tracks
  •     Numeric keys for track selection and flash start
  •     Frame accurate search
  •     Memory for up to 20 cue points
  •     Skip back function (jump back a few seconds during playback)
  •     Auto cue, auto ready, incremental playback, intro check functions
  •     Resume function
  •     Index search for audio CDs
  •     Directory search for MP3 CDs
  •     Playback modes include Single, All and Program (up to 99 tracks)
  •     Memory for playback programs of up to 100 CDs
  •     Repeat modes include Single, All and A–B
  •     Selectable interval time between tracks
  •     ±16% pitch control
  •     Key original function (change speed only)
  •     Fade in/out (up to 10 seconds, in 0.5-second steps)
  •     Time display (track elapsed / track remain / total remain)
  •     Power-on play (timer function)
  •     Relay play with multiple units
  •     Fader start / event start
  •     Lock function to avoid accidental operation
  •     Anti-shock memory
  •     XLR balanced analogue output (output level may be customized by technical support)
  •     RCA unbalanced analogue output
  •     Coaxial digital output (SPDIF)
  •     XLR AES/EBU digital output
  •     Mono output
  •     Serial control (RS-232C, D-sub 9-pin)
  •     Parallel control port (D-sub 15-pin)
  •     Headphones output with dedicated volume control
  •     Switchable monitor loudspeaker
  •     Last mode memory (Playback mode / Program / Repeat mode / Time display)
  •     End Of Message notification
  •     Backlit LC display
  •     Removable power cable
  •     Rack-mountable chassis (2 U)
  •     Wireless remote control included (receiver can be disabled if required)

    Available as options:

  •         Footswitch for several functions (RC-3F)
  •         Direct play remote control (RC-20)
  •         Flash start remote control for instant access to 20 tracks, announcements or effects (RC-SS20)
