Solid State Logic UF1 DAW Control Centre
SKU: SS-UF1
Solid State Soligic UF1 DAW Control Centre

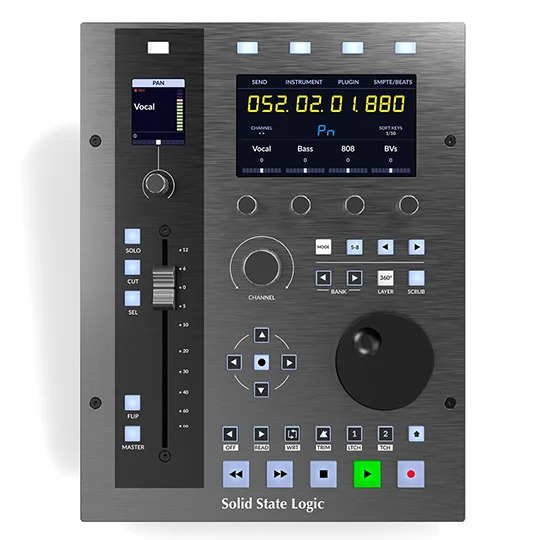

UF1 boasts a premium 100 mm motorized fader, dual high-resolution displays, soft-feel durable rubber keys and a weighted jog wheel, all encased in a robust metal chassis. UF1 offers complete control of a DAW’s pans, sends, plug-in control and more, plus the ability to customise 46 soft keys specifically to your workflow. Clear and insightful visual feedback, intuitive control and deep integration with the SSL Meter Plug-in and SSL 360° software - UF1 offers power and control never seen before from a controller of this size.
1 To Control Them All
UF1 can control up to 3 DAWs simultaneously and comes with profiles for Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, and Pyramix. Dedicated transport controls and weighted jog/scrub wheel make moving around even the largest session quick and efficient. Secondary Transport keys can be customised to essential workflow shortcuts such as Loop on/off and click track on/off. Or press the Shift button for fast access to DAW automation modes. The premium 100 mm motorised SSL fader offers precise control when writing automation and of course, fine tuning track volume in recording and mixing sessions.
UF1’s dual high-resolution displays provide in-depth visual feedback of DAW track names, parameters, time display, the SSL Meter plug-in and 360°-enabled channel strips in the SSL Plug-in Mixer. Control SSL Channel Strip plug-in’s directly from the UF1 surface, with the plug-in’s EQ curve shown on the large display. Gate and compression activity is also shown on the small display. UF1’s large, multi-purpose notched encoder allows for channel banking, mouse wheel emulation (Focus mode) and control of computer system volume.
Meter Plug-in and SSL 360° Integration
Beyond its comprehensive DAW control, every UF1 purchase includes a perpetual license for the SSL Meter plug-in (which is visualised on the large 4.3” IPS display) and can be controlled directly from the UF1 surface or the SSL 360° Plug-in Mixer. The SSL Meter Plug-in offers essential metering tools including Peak & RMS levels, K-System, stereo balance, phase corelation bar, Lissajous phase scope, 31-band RTA, VU and PPM metering.
Expand UF1 with SSL UC1 and UF8 Controllers
UF1 can be used on its own or partnered with UF8 for an even deeper SSL DAW control experience. UF1 is also the perfect hardware expansion for the UC1 SSL plug-in controller, adding fader control and providing easy access to SSL 360°-enabled channel strip parameters alongside visual feedback of EQ curves.
For the ultimate SSL controller setup offering full SSL virtual console workflow, combine up to four UF8s with UC1 and UF1.
Buy your Solid State Soligic UF1 DAW Control Centre today from you local Solid State Logic experts at Musiclab Brisbane!
For more information on the Solid State Logic UF1, please visit the Solid State Logic website.
Solid State Logic UF1 Specifications
Screen:
-
4.3" IPS LCD TFT,
-
1.77" LCD TFT
Faders:
-
1 x 100mm, Motorized
Transport Controls:
-
Yes
Encoders/Pots:
-
5 x rotary
Soft Keys:
-
Solo
-
Cut
-
Select
-
Flip
-
Master
-
6 x Assignable Soft Keys
Computer Connectivity:
-

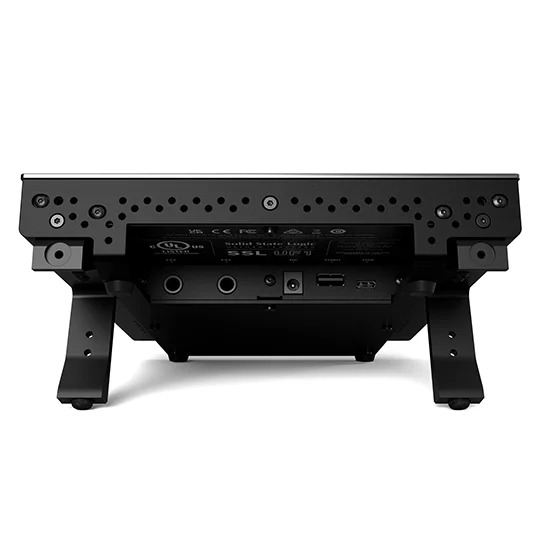

USB - 1 x Type C, 1 x Type A (thru)
Other I/O:
-
2 x 1/4" (footswitch)
Software:
-
SSL 360° Software
Power:
-
DC power supply (included)
SKU | SS-UF1 |
Model # | SS-UF1 |
Brand | Solid State Logic |
Solid State Logic UF1 Features:
-
Fully featured DAW Controller in a compact footprint. Control DAW pans, sends, plug-ins, and virtual instruments with ease
-
100mm high-quality motorized SSL fader
-
2 x high-resolution displays, including a large 4.3” TFT LCD display for visual feedback of DAW track names, parameters, time display, the SSL Meter plug-in, and 360°-enabled channel strips in the SSL Plug-In Mixer
-
Dedicated transport controls and weighted jog/scrub wheel for total session control
-
46 customizable user keys ready to assign your favorite DAW commands or keyboard shortcuts
-
Secondary transport row of keys can be customized to essential workflow shortcuts such as loop on/off and click track on/off; or press the Shift button for fast access to DAW automation modes
-
Fader Mode allows you to use the 4 V-Pots underneath the large screen to control 4 track volumes at the same time
-
A large multipurpose notched encoder allows for track banking, mouse wheel emulation for hands-on control, and control over computer system volume
-
Use the UF1 on its own, or partner with the UF8 and/or the UC1 to enhance the functionality of both products
-
2 x assignable footswitch inputs
-
Up to 3 different DAWs can be connected simultaneously and switched between using the Layer keys
-
Powered by the SSL 360° Software application
