Sennheiser XSW2 Wireless Lavalier System (Freq Band A)

SKU: XSW2-ME2-A

Have a Question

Sennheiser Wireless: Ready for you Gig!

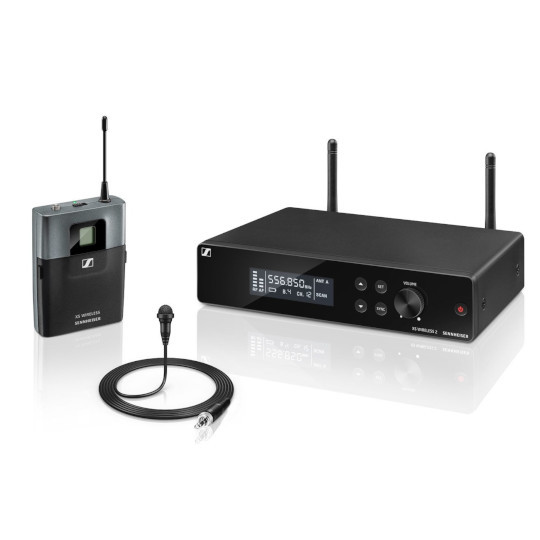

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

Freq. Range A Band 548-572MHz

Sennheiser XSW2 Wireless Lavalier System Features:

Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

What's in the Box?

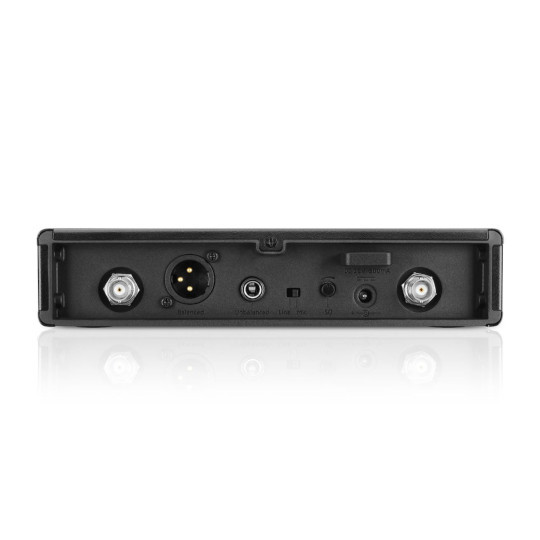

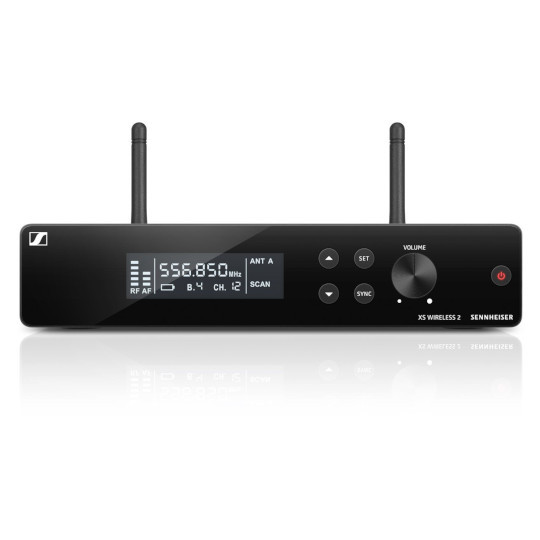

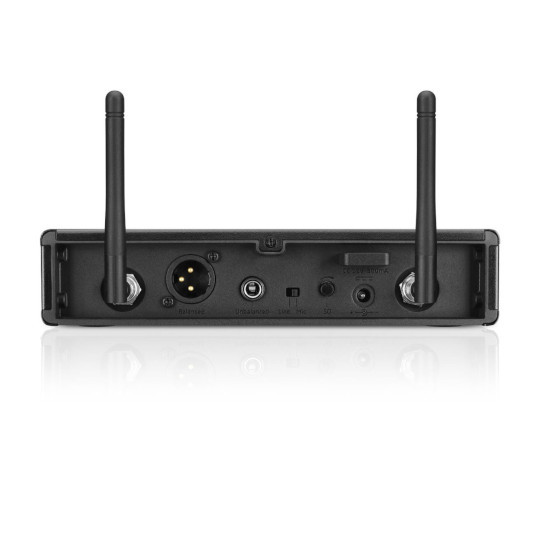

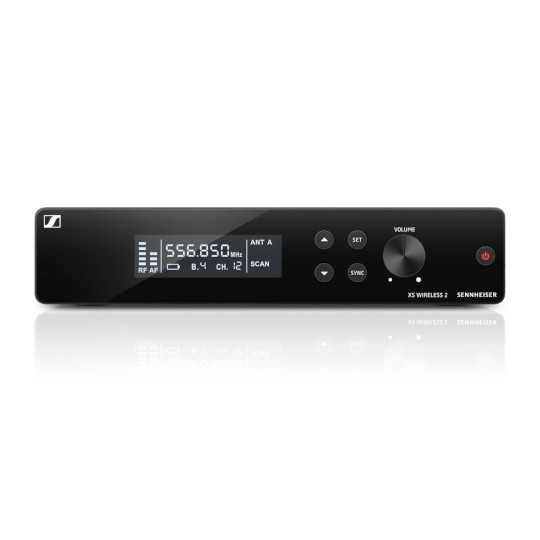

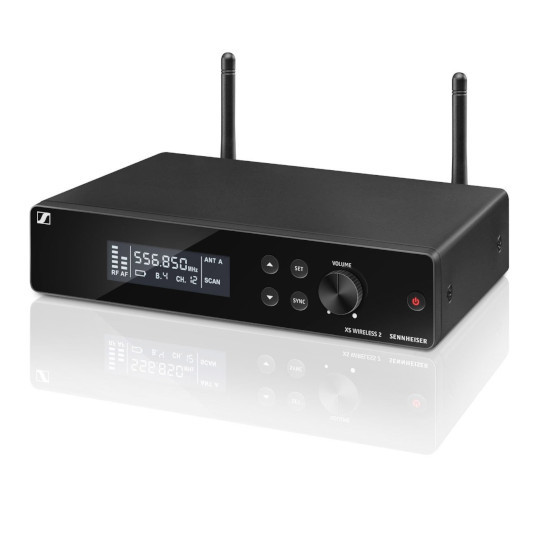

1 receiver EM-XSW 2

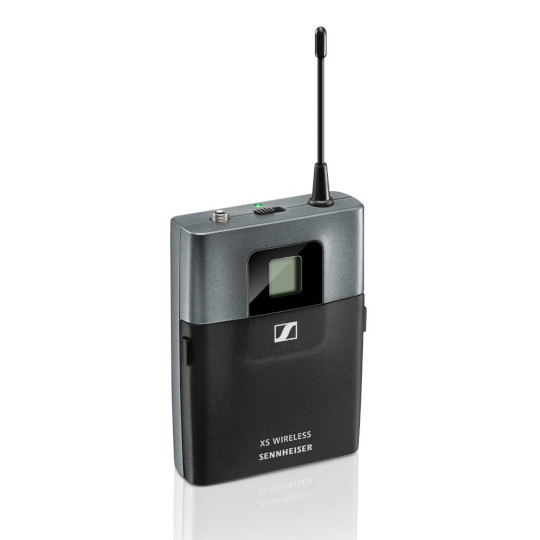

1 bodypack transmitter SK-XSW

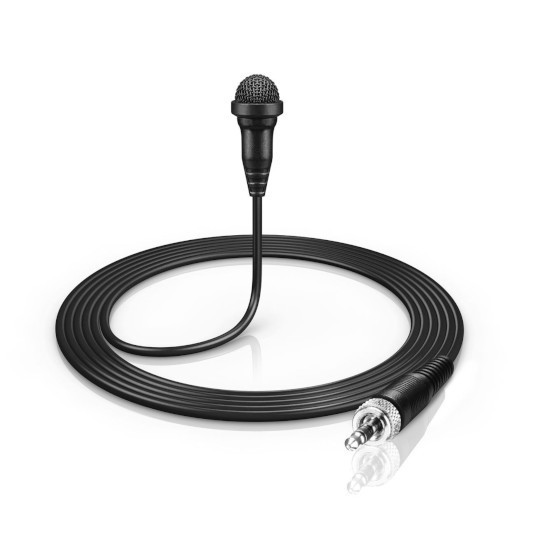

1 lavalier microphone ME 2-2
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manual

Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW2 Wireless Lavalier System Tech Specs:

Receivers

Dimensions

approx. 200 x 42 x 127 mm
Weight

approx. 680g
Power supply

12 V DC nom. / 300 mA
- Housing

  Metal
- AF frequency response

  50 to 16,000 Hz

Transmitter

Dimensions

approx. 71 x 96 x 28 mm
Weight

approx. 95g
Operating time

approx. 10 hrs
- Power supply

  2 AA size batteries, 1.5 V
- Housing

  Robust ABS
- AF frequency response

  50 to 16,000 Hz (–3 dB)

Microphone

Condenser
Frequency response

50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion

≤ 0.9%
- Pick-up pattern

  Omni-directional
- Signal-to-noise ratio

  ≥ 103 dBA
- RF output power

  10 mW
- Switching bandwidth

  up to 24 MHz
- Modulation

  Wideband FM
- Output voltage

  '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception

  True Diversity
- Frequency

  8 frequency banks, each with up to 12 factory-preset channels
- Frequency range

  A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
- Sensitivity

  < 3 μV at 52 dB(A)rms S/N
- Squelch

  switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range

  40 dB, adjustable in 5-dB steps
- Line / Mic level

  20 dB, switchable
- Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle

  double superheterodyne

SKU	XSW2-ME2-A
Model #	507122
Brand	Sennheiser

2 Years
