Sennheiser XSW1 825 Wireless Vocal Set System (Frequency Band A)

SKU: XSW1-825-A

Have a Question

Sennheiser Easy-to-Use Wireless

Go for Sennheiser XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Freq. Range A Band 548-572MHz

Sennheiser XSW 1-825 Handheld Wireless System Features:

Easy-to-use handheld wireless system with great sound
1-button scanning and synchronization make setup easy
825 capsule exhibits a warm, smooth sound with excellent feedback rejection
Intuitive icon-based indicators for simple operation
Streamlined design offers a sleek, modern appearance
Internal diversity receiver antennas for a simplified look
Use up to 10 systems simultaneously

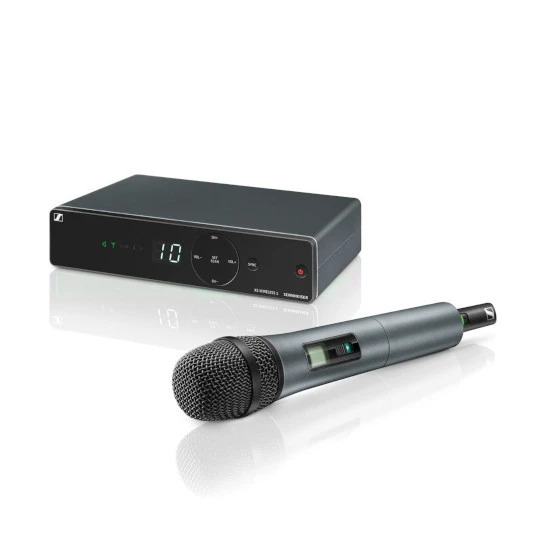

What's in the box?

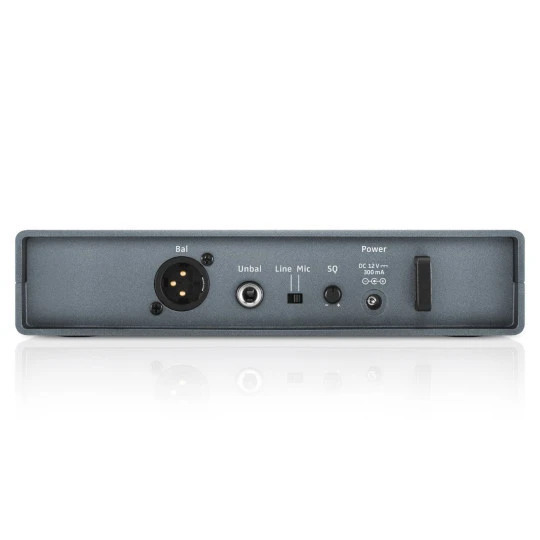

1 receiver EM-XSW 1

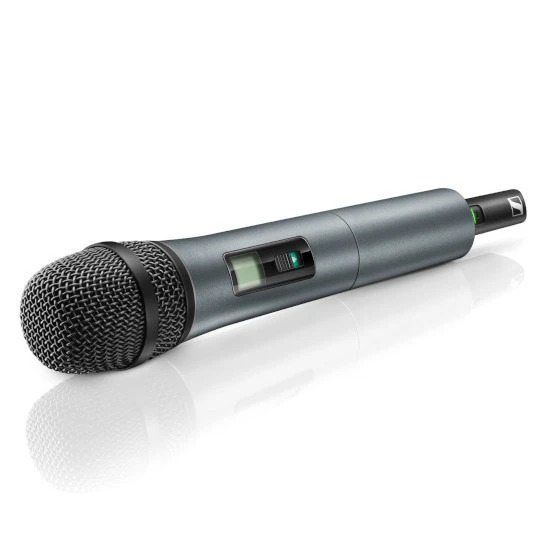

1 handheld transmitter SKM 825-XSW or SKM 835-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries

Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW 1-825 Handheld Wireless System Tech Specs:

Dimensions

approx. 200 x 42 x 127 mm
THD, total harmonic distortion

≤ 0.9%
Pick-up pattern

cardioid
- Signal-to-noise ratio

  ≥ 103 dBA
- RF output power

  10 mW
- Switching bandwidth

  up to 24 MHz
- Operating time

  approx. 10 hrs
- Modulation

  wideband FM
- Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing

  rugged ABS housing
- Dynamic range

  dynamic
- Frequency

  8 frequency banks, each with up to 10 factory-preset channels
- Frequency range

  A: 548-572 MHz, GB: 606-630 MHz
  B: 614-638 MHz
  C: 766-790 MHz
  D: 794-806 MHz
  E: 821-832 MHz, 863-865 MHz
  K: 925-937.5 MHz
- Sensitivity

  < 3 μV at 52 dB(A)rms S/N
- Squelch

  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity

  1.5 mV / Pa
- Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range

  45 dB, adjustable in 5-dB steps
- Line / Mic level

  20 dB, switchable
- Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle

  double superheterodyne
- Diversity principle

  Antenna switching diversity via internal antennas
