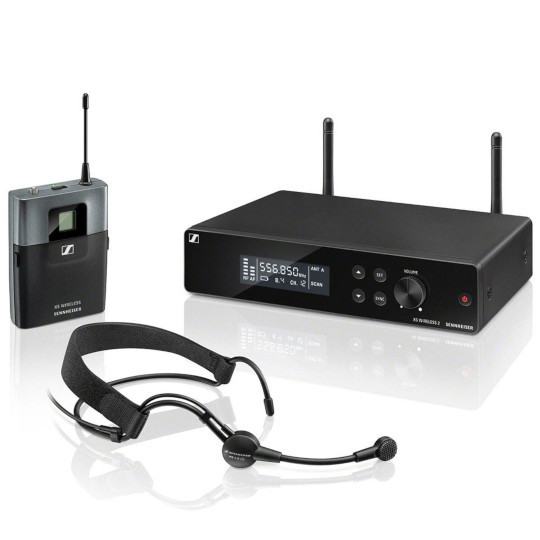

Sennheiser XSW 2 ME3 Wireless Headmic Set (Frequency Band B)

SKU: XSW2-ME3-B

Have a Question

Sennheiser Wireless: Ready for you Gig!

The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.

Hands-free performance. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

Freq. Range B Band 614-638MHz

Sennheiser XSW 2 ME3 Wireless Headmic Set Features:

Lightweight headmic for hands-free operation and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

What's in the Box?

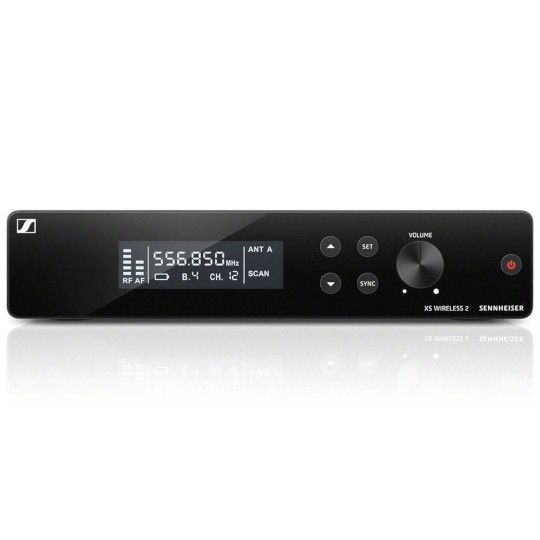

1 receiver EM-XSW 2

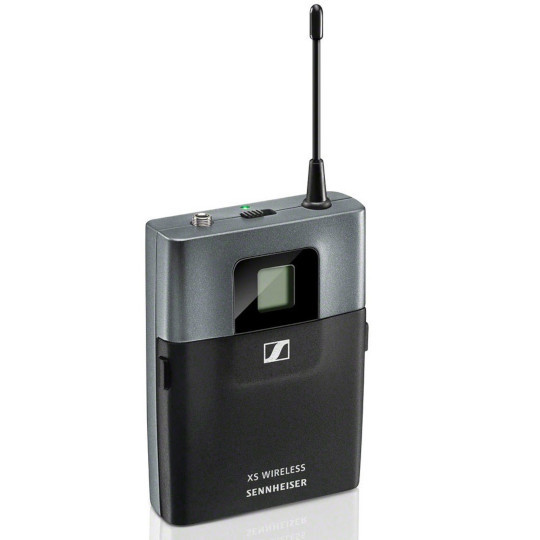

1 bodypack transmitter SK-XSW

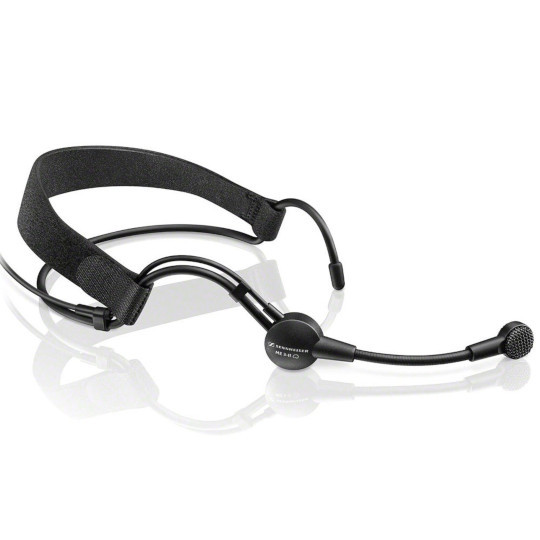

1 headset microphone ME 3-II
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manual

Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW 2 ME3 Wireless Headmic Set Tech Specs:

Receivers

Dimensions

approx. 200 x 42 x 127 mm
Weight

approx. 680g
Power supply

12 V DC nom. / 300 mA
- Housing

  Metal
- AF frequency response

  50 to 16,000 Hz (–3 dB)

Transmitter

Dimensions

approx. 71 x 96 x 28 mm
Weight

approx. 95g
Operating time

approx. 10 hrs
- Power supply

  2 AA size batteries, 1.5 V
- Housing

  robust ABS
- AF frequency response

  50 to 16,000 Hz

Microphone

condenser
Frequency response

50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion

≤ 0.9%
- Pick-up pattern

  cardioid
- Signal-to-noise ratio

  ≥ 103 dBA
- RF output power

  10 mW
- Switching bandwidth

  up to 24 MHz
- Modulation

  wideband FM
- Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception

  True Diversity
- Frequency

  8 frequency banks, each with up to 12 factory-preset channels
- Frequency range

  A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
- Sensitivity

  < 3 μV at 52 dB(A)rms S/N
- Squelch

  switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range

  40 dB, adjustable in 5-dB steps
- Line / Mic level

  20 dB, switchable
- Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle

  double superheterodyne
