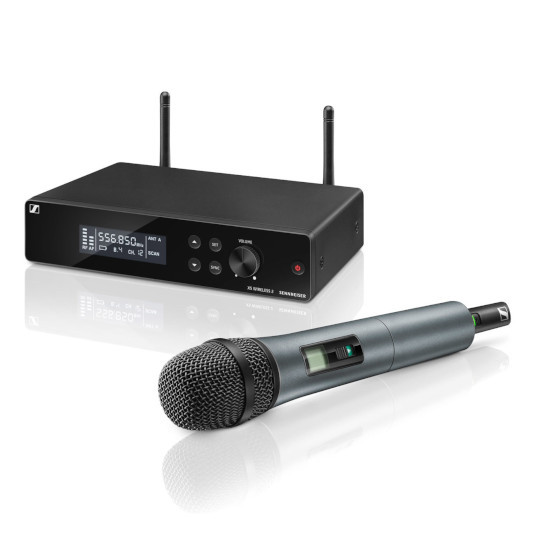

Sennheiser XSW 2 865 Wireless Vocal Set (Frequency Band B)

SKU: XSW2-865-B

Have a Question

Sennheiser Wireless: Ready for you Gig!

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

The XSW 2 Vocal Set gives you high flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

Freq. Range B Band 614-638MHz

Sennheiser XSW 2 865 Wireless Vocal Set Features:

Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via
remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

What's in the Box?

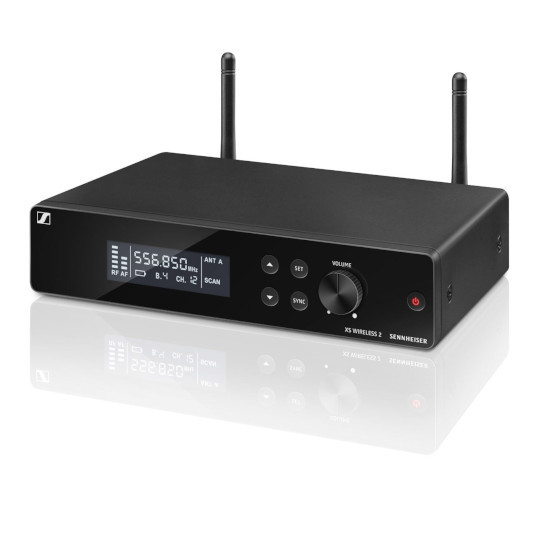

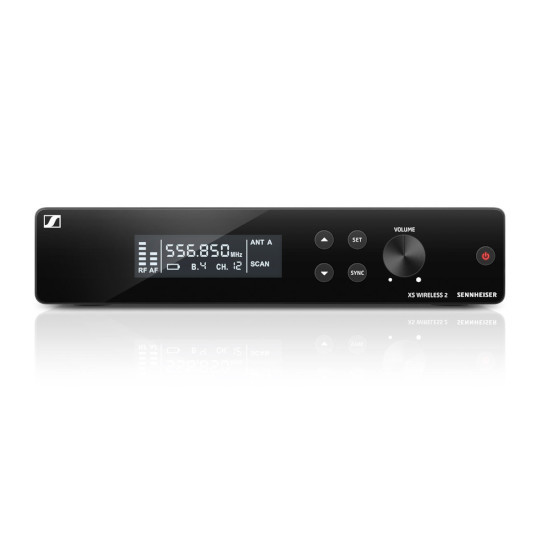

1 receiver EM-XSW 2

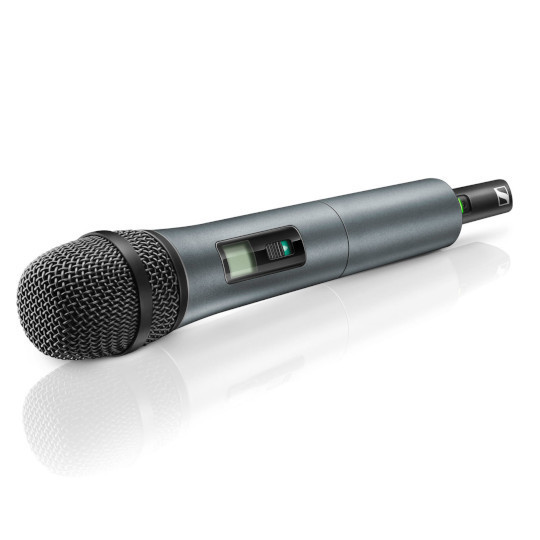

1 handheld transmitter SKM 865-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
User manual

Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW 2 865 Wireless Vocal Set Tech Specs:

Receivers

Dimensions

approx. 200 x 42 x 127 mm
Weight

approx. 680g
Power supply

12 V DC nom. / 300 mA
- Housing

  metal, microphone: robust ABS
- AF frequency response

  50 to 16,000 Hz (–3 dB)

Microphone

Dimensions

approx. 260 x 50 mm
Weight

approx. 245g
Operating time

approx. 10 hrs
- Power supply

  2 AA size batteries, 1.5 V
- AF frequency response

  80-16,000 Hz

Microphone

condenser
Frequency response

50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion

≤ 0.9%
- Pick-up pattern

  super-cardioid
- Signal-to-noise ratio

  ≥ 103 dBA
- RF output power

  10 mW
- Switching bandwidth

  up to 24 MHz
- Modulation

  wideband FM
- Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Frequency

  8 frequency banks, each with up to 12 factory-preset channels
- Frequency range

  A: 548-572 MHz
  GB: 606-630 MHz
  B: 614-638 MHz
  C: 766-790 MHz
  D: 794-806 MHz
  E: 821-832 MHz, 863-865 MHz
  K: 925-937.5 MHz
- Sensitivity

  < 3 μV at 52 dB(A)rms S/N
- Squelch

  switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity

  1.8 mV / Pa
- Adjustment Range Transmitter

  0到-30分贝，以10分贝为步进调节
- Audio adjustment range

  40 dB, adjustable in 5-dB steps
- Line / Mic level

  20 dB, switchable
- Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle

  double superheterodyne
- Diversity principle

  True Diversity

SKU	XSW2-865-B
Model #	507151
Brand	Sennheiser
