Sennheiser XSW 1 CI1 Wireless Instrument Set (Frequency Band A)

SKU: XSW1-CI1-A

Have a Question

Streamlined and Easy-To-Use

The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-in-one wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. The Sennheiser XSW 1-CI1 is a great wireless system for guitar, bass, and other electric instruments.

Freq. Range A Band 548-572MHz

Sennheiser XSW1 Wireless Instrument Set Features:

Compact bodypack transmitter, rugged instrument cable
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

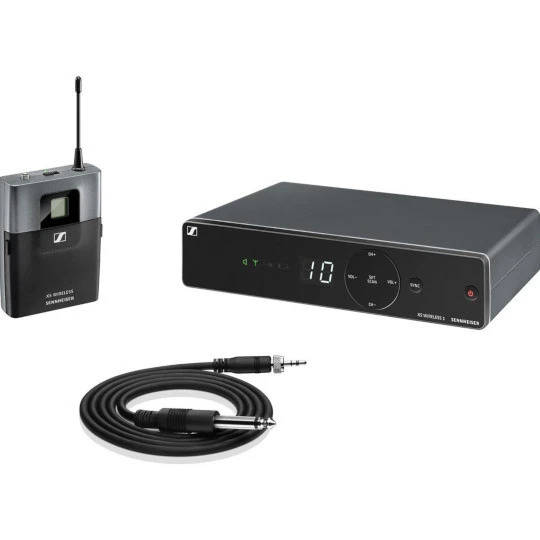

What's in the box?

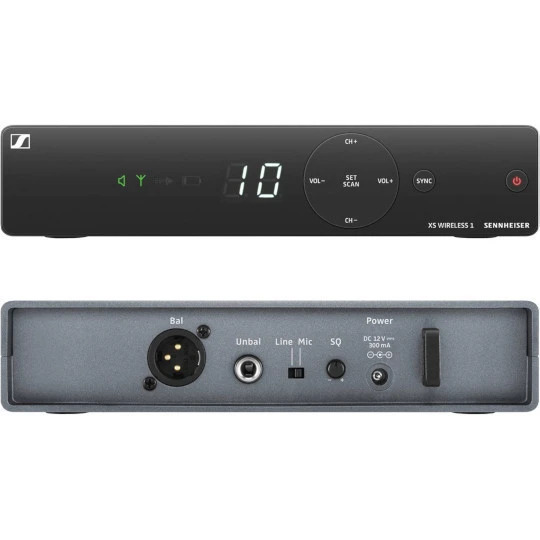

1 receiver EM-XSW 1

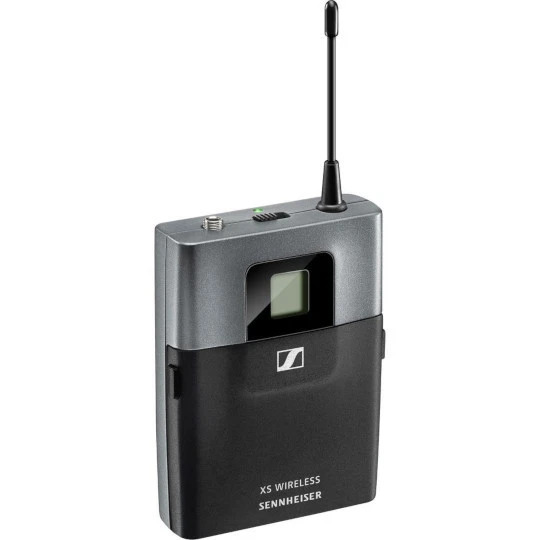

1 bodypack transmitter SK-XSW
1 instrument cable Cl1
1 power supply NT 12-5 CW
2 AA batteries

Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW CI1 Tech Specs:

Dimensions

Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion

≤ 0.9%
Weight

approx. 340g (receiver), approx. 95g (transmitter)
- Signal-to-noise ratio

  ≥ 103 dBA
- RF output power

  10 mW
- Switching bandwidth

  up to 24 MHz
- Operating time

  approx. 10 hrs
- Modulation

  Wideband FM
- Power supply

  Receiver: 12 V DC nom. / 300 mA
  Transmitter: 2 AA size batteries, 1.5 V
- Output voltage

  1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing

  Rugged ABS housing
- Frequency

  8 frequency banks, each with up to 10 factory-preset channels
- Frequency range

  A: 548-572 MHz, GB: 606-630 MHz
  B: 614-638 MHz
  C: 766-790 MHz
  D: 794-806 MHz
  E: 821-832 MHz, 863-865 MHz
  K: 925-937.5 MHz
- Sensitivity

  < 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation

  130 dB
- Squelch

  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization

  2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity

  1.5 mV / Pa
- AF frequency response

  Receiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter

  0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range

  45 dB, adjustable in 5-dB steps
- Line / Mic level

  20 dB, switchable
- Temperature Range

  operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle

  double superheterodyne
- Diversity principle

  Antenna switching diversity via internal antennas

SKU	XSW1-CI1-A
Model #	506994
Brand	Sennheiser
