Sennheiser XSW 1 908 Wireless Brass Set (Frequency Band B)

SKU: XSW1-908-B

$499.00
RRP $599.00
SAVE $100.00
Normally Available Within 7 Days!
Share:



Easy-to-Use Wireless

The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful
live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.The Sennheiser XSW 1-908 is a great wireless system for trumpets, saxophones, and more.

Freq. Range B Band 614-638MHz



XS Wireless 1 Brass Set Features:

  •     Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
  •     Antenna-switching diversity reception
  •     Integrated antennas
  •     Automatic frequency management and synchronization via remote channel for easy setup
  •     Selectable UHF frequencies within a large bandwidth
  •     Up to 10 compatible channels

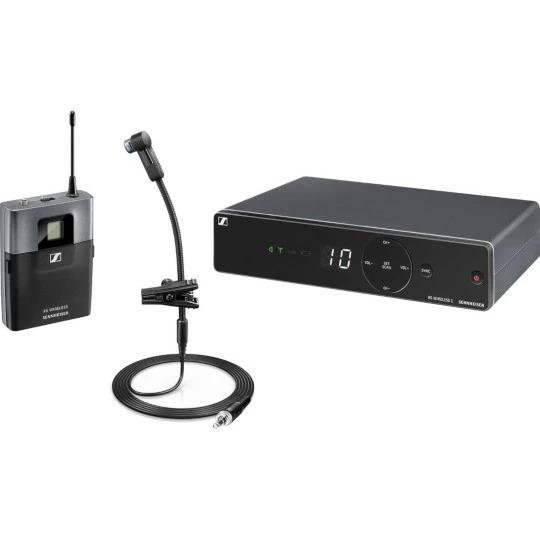

What's in the Box?

  •     1 receiver EM-XSW 1

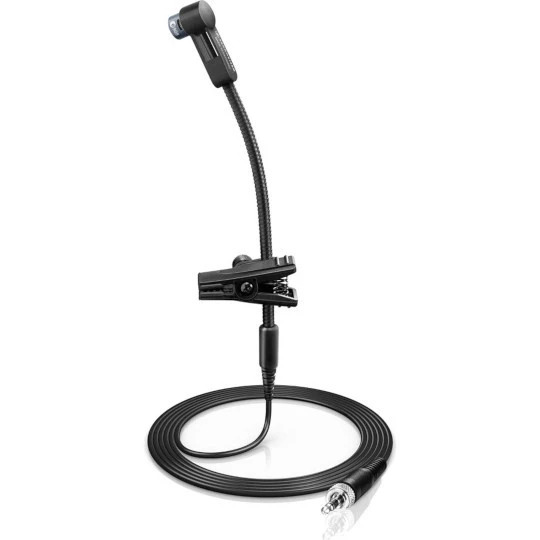

  •     1 gooseneck microphone e908T
  •     1 bodypack transmitter SK-XSW
  •     1 power supply NT 12-5 CW
  •     2 AA batteries



Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.



XS Wireless 1 Brass Set Tech Specs:

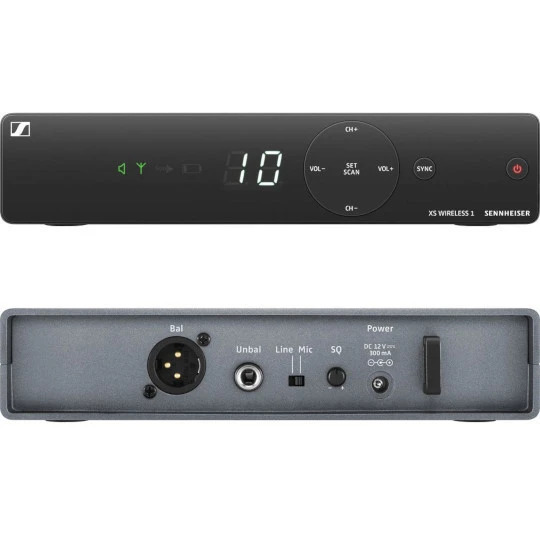

Receivers

  • Dimensions
    approx. 200 x 42 x 127 mm
  • Weight
    approx. 340g
  • Power supply
    Receiver: 12 V DC nom. / 300 mA
    • AF frequency response
      Receiver: 50 to 16,000 Hz (–3 dB)

Transmitter

  • Dimensions
    approx. 71 x 96 x 28 mm
  • Weight
    approx. 95g
  • Power supply
    Transmitter: 2 AA size batteries, 1.5 V
    • Adjustment Range Transmitter
      0 to -30 dB, adjustable in 10 dB steps



  • Microphone
    condenser
  • THD, total harmonic distortion
    ≤ 0.9%
  • Pick-up pattern
    cardioid
    • Signal-to-noise ratio
      ≥ 103 dBA
    • RF output power
      10 mW
    • Switching bandwidth
      up to 24 MHz
    • Operating time
      approx. 10 hrs
    • Modulation
      wideband FM
    • Output voltage
      1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    • Housing
      rugged ABS housing
    • Frequency
      8 frequency banks, each with up to 10 factory-preset channels
    • Frequency range
      A: 548-572 MHz, GB: 606-630 MHz
      B: 614-638 MHz
      C: 766-790 MHz
      D: 794-806 MHz
      E: 821-832 MHz, 863-865 MHz
      K: 925-937.5 MHz
    • Sensitivity
      < 3 μV at 52 dB(A)rms S/N
    • SPL for peak deviation
      147 dB
    • Squelch
      adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
    • Synchronization
      2.4 GHz, Low Power OQPSK (only active during synchronization)
    • Input sensitivity
      1.5 mV / Pa
    • Audio adjustment range
      45 dB, adjustable in 5-dB steps
    • Line / Mic level
      20 dB, switchable
    • Temperature Range
      operation: 0°C to +40°C, storage: –20°C to +70°C
    • Receiver Principle
      double superheterodyne
    • Diversity principle
      antenna switching diversity via internal antennas
SKU XSW1-908-B
Model # 507102
Brand Sennheiser

XS Wireless 1 Brass Set Features:

  •     Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
  •     Antenna-switching diversity reception
  •     Integrated antennas
  •     Automatic frequency management and synchronization via remote channel for easy setup
  •     Selectable UHF frequencies within a large bandwidth
  •     Up to 10 compatible channels
