Sennheiser XSW 1 835 Wireless Vocal Set (Frequency Band A)

SKU: XSW1-835-A

$399.00
RRP $449.00
SAVE $50.00
Available for Immediate Delivery!
Share:



Sennheiser Easy-to-Use Wireless

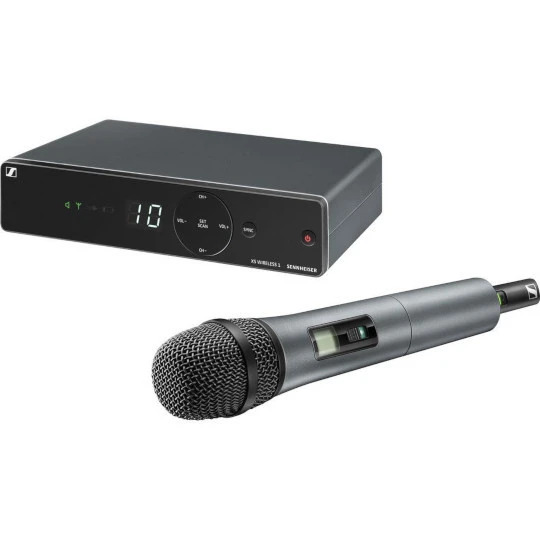

Go for Sennheiser XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Freq. Range A Band 548-572MHz



Sennheiser XSW 1-835 Handheld Wireless System Features:

  • Easy-to-use handheld wireless system with great sound
  • 1-button scanning and synchronization make setup easy
  • 835 capsule exhibits a warm, smooth sound with excellent feedback rejection
  • Intuitive icon-based indicators for simple operation
  • Streamlined design offers a sleek, modern appearance
  • Internal diversity receiver antennas for a simplified look
  • Use up to 10 systems simultaneously



What's in the box?

  • 1 receiver EM-XSW 1

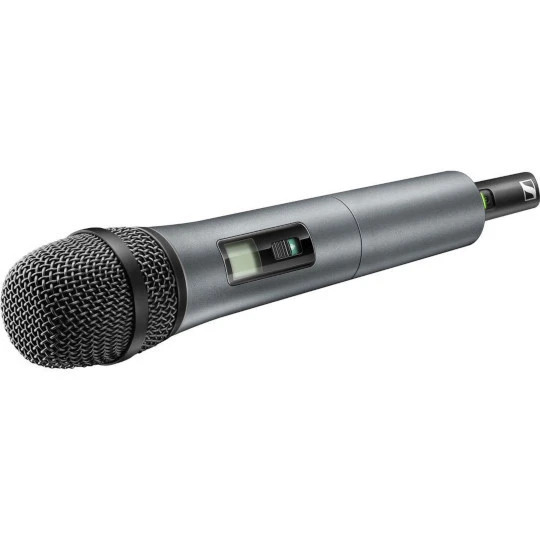

  • 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries



Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.



Sennheiser XSW 1-835 Handheld Wireless System Tech Specs:

  • Dimensions
    approx. 200 x 42 x 127 mm
  • THD, total harmonic distortion
    ≤ 0.9%
  • Pick-up pattern
    cardioid
    • Signal-to-noise ratio
      ≥ 103 dBA
    • RF output power
      10 mW
    • Switching bandwidth
      up to 24 MHz
    • Operating time
      approx. 10 hrs
    • Modulation
      wideband FM
    • Output voltage

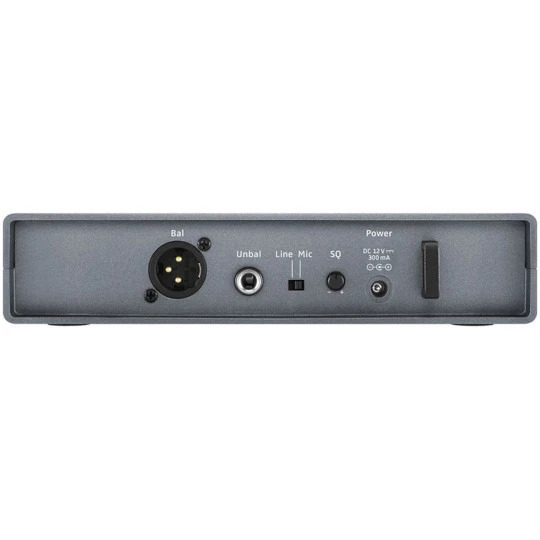

      1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
    • Housing
      rugged ABS housing
    • Dynamic range
      dynamic
    • Frequency
      8 frequency banks, each with up to 10 factory-preset channels
    • Frequency range
      A: 548-572 MHz, GB: 606-630 MHz
      B: 614-638 MHz
      C: 766-790 MHz
      D: 794-806 MHz
      E: 821-832 MHz, 863-865 MHz
      K: 925-937.5 MHz
    • Sensitivity
      < 3 μV at 52 dB(A)rms S/N
    • Squelch
      adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
    • Synchronization
      2.4 GHz, Low Power OQPSK (only active during synchronization)
    • Input sensitivity
      1.5 mV / Pa
    • Adjustment Range Transmitter
      0 to -30 dB, adjustable in 10 dB steps
    • Audio adjustment range
      45 dB, adjustable in 5-dB steps
    • Line / Mic level
      20 dB, switchable
    • Temperature Range
      operation: 0°C to +40°C, storage: –20°C to +70°C
    • Receiver Principle
      double superheterodyne
    • Diversity principle
      Antenna switching diversity via internal antennas



Receivers

  • Weight
    approx. 340g
  • Power supply
    Receiver: 12 V DC nom. / 300 mA
  • AF frequency response
    Receiver: 50 to 16,000 Hz (–3 dB)

Microphone

  • Weight
    approx. 245g
  • Power supply
    Microphone: 2 AA size batteries, 1.5 V
  • AF frequency response
    SKM 825: 80-14,000 Hz
    SKM 835: 80-16,000 Hz


SKU XSW1-835-A
Model # 507115
Brand Sennheiser

Sennheiser XSW 1-835 Handheld Wireless System Features:

  • Easy-to-use handheld wireless system with great sound
  • 1-button scanning and synchronization make setup easy
  • 835 capsule exhibits a warm, smooth sound with excellent feedback rejection
  • Intuitive icon-based indicators for simple operation
  • Streamlined design offers a sleek, modern appearance
  • Internal diversity receiver antennas for a simplified look
  • Use up to 10 systems simultaneously
