Sennheiser XSW 1 835 Dual Wireless Vocal Set (Frequency Band A)

SKU: XSW1-835-DUAL-A

$849.00
RRP $1,029.00
SAVE $180.00
Normally Available Within 7 Days
Share:



Easy-to-Use Wireless

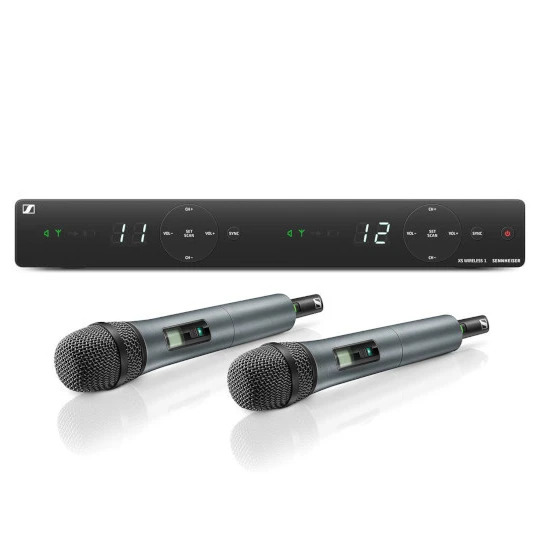

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analogue UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

Freq. Range A Band 548-572MHz



Sennheiser XSW 1 835 Dual Wireless Vocal Set Features:

  •     Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  •     Antenna-switching 2-channel diversity reception
  •     Integrated antennas
  •     Automatic frequency management and synchronization via remote channel for easy setup
  •     Selectable UHF frequencies within a large bandwidth
  •     Up to 10 compatible channels



Not sure which frequency set is best for you?

Wireless Frequencies can be confusing so feel free to give us a call here at Musiclab, or email us. We'll make sure you get the right advice, and match the best product solution for your situation.

Sennheiser XSW 1 835 Dual Wireless Vocal Set Tech Specs:

System

  • Frequency range
    548-572 MHz
    614–638 MHz
    766-790 MHz
    794-804 MHz
    821-832 / 863-865 MHz
    606-630 MHz
    925-937.5 MHz
  • Dimensions
    Ø 48 x L 180 mm
  • Connector
    XLR-3
    • Frequency response
      55 - 16,000 Hz
    • THD, total harmonic distortion
      ≤ 0.9%
    • Transducer principle
      dynamic
    • Weight
      330 g (0.73 lbs)
    • Pick-up pattern
      cardioid
    • Nominal impedance
      300 Ω (at 1 kHz)
    • Min. terminating impedance
      1 kΩ
    • Storage temperature
      –20°C to +70°C
    • Operating temperature
      0°C to +40°C
    • Signal-to-noise ratio
      ≥ 103 dBA
    • Switching bandwidth
      Up to 24 MHz
    • Modulation
      Wideband FM
    • Frequency
      80 factory presets (8 banks of 10 channels each)
    • Sensitivity
      1.8 mV/Pa (free field, no load at 1 kHz)
    • Synchronization
      Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
    • Temperature Range
      0 °C ... +40 °C (+32 °F ... +104 °F)



  • Frequency range
    548-572 MHz
  • Frequency response
    766-790 MHz
    794-804 MHz
    821-832 / 863-865 MHz
    925-937.5 MHz

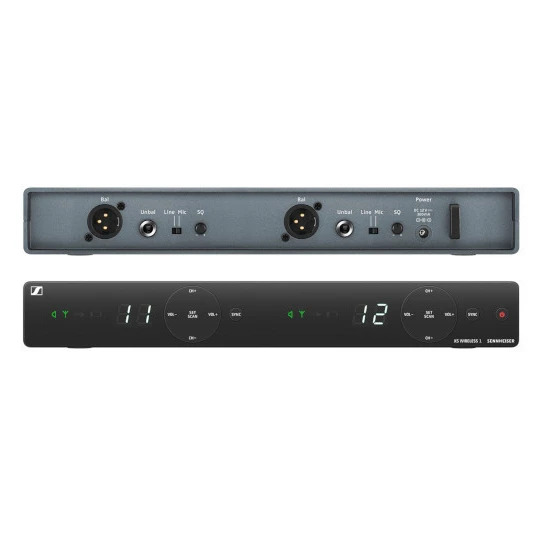

EM-XSW 1 DUAL

  • Dimensions
    approx. 320 x 126.5 x 42 mm
  • Weight
    approx. 620 g
  • Power supply
    12 V DC nom. / 300 mA
    • Output voltage
      (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
    • Housing
      Rugged ABS housing
    • Sensitivity
      < 3 μV at 52 dB(A) rms S/N (at peak deviation)
    • Squelch
      Adjustable from 3 dBμV to 28 dBμV
    • AF frequency response
      50 to 16,000 Hz (–3 dB)
    • Audio adjustment range
      45 dB, adjustable in 5 dB steps
    • Line / Mic level
      20 dB, switchable
    • Receiver Principle
      Double superheterodyne
    • Diversity principle
      Antenna switching diversity via internal antennas

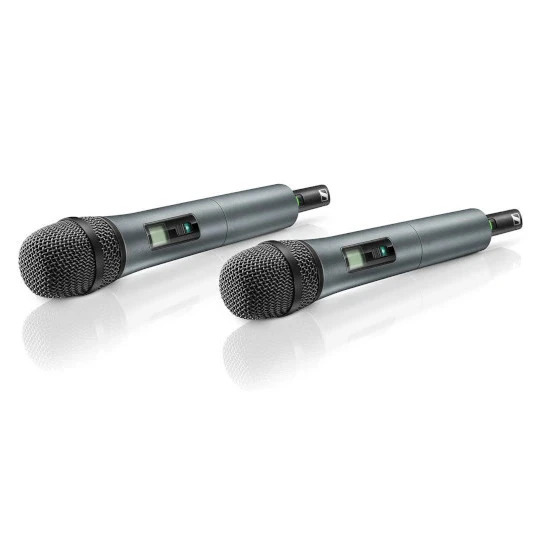

SKM 825-XSW / SKM 835-XSW

  • Dimensions
    Approx. 260 x 50 mm
  • Microphone
    Dynamic
  • Weight
    Approx. 245 g
    • Pick-up pattern
      Cardioid
    • RF output power
      10 mW
    • Operating time
      Approx. 10 hrs
    • Power supply
      2 AA size batteries, 1.5 V
    • Housing
      Rugged ABS housing
    • Sensitivity
      0 to -30 dB, adjustable in 10 dB steps
    • Input sensitivity
      1.5 mV / Pa
    • AF frequency response
      80-16,000 Hz

SKU XSW1-835-DUAL-A
Model # 508270
Brand Sennheiser

Sennheiser XSW 1 835 Dual Wireless Vocal Set Features:

  •     Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  •     Antenna-switching 2-channel diversity reception
  •     Integrated antennas
  •     Automatic frequency management and synchronization via remote channel for easy setup
  •     Selectable UHF frequencies within a large bandwidth
  •     Up to 10 compatible channels
