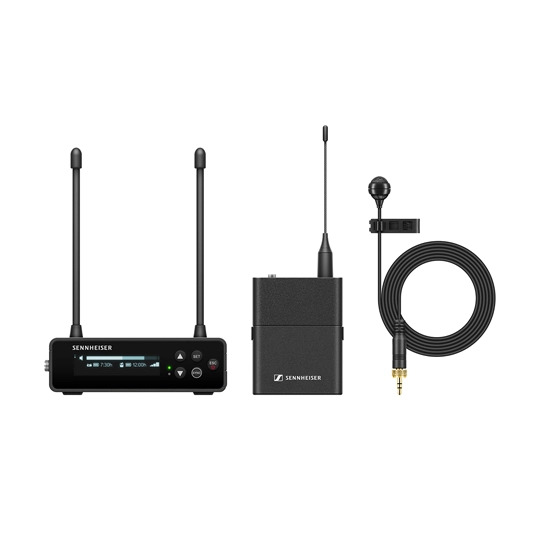

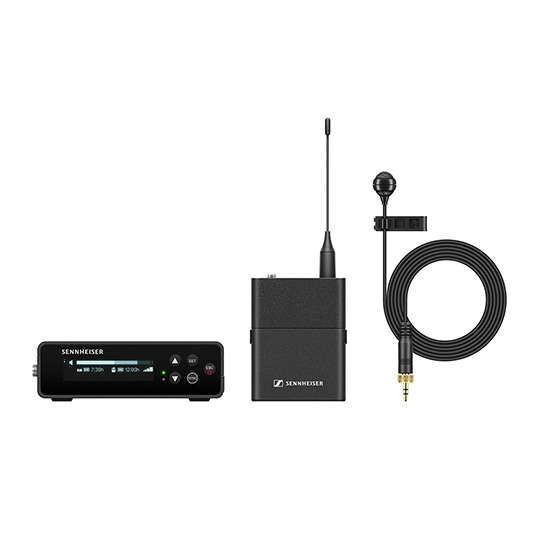

Sennheiser EW-DP ME4 Portable Digital Wireless Set Y1-3 (1785.2 - 1799.8 MHz)

SKU: EWDP-ME4-SET-Y13

$1,029.00
RRP $1,299.00
SAVE $270.00
Share:

or 4 payments of $257.25 with Info






Time is measured differently on set; seconds converted into frames, minutes into card space, hours into precious remaining daylight. Whether you’re a crew of one or many, EW-DP is the ideal partner to simplify your audio workflow.



Part of the Evolution Wireless Digital family — which includes EW-D and EW-DX — EW-DP will change the way you think of sound on set. A wireless microphone system that puts time on your side by blending best-in-class technology with an ergonomic build. After all, production has enough challenges; sound doesn’t need to be one of them.



Features at a glance...



  • Fully digital UHF wireless microphone system for video applications

  • Integrated Bluetooth for synchronization and control

  • Smart Notifications for troubleshooting and system guidance Intelligent battery management provides operating time (hours:minutes)

  • Extended battery life: up to 12h on transmitter, 7h on receiver

  • Magnetically stackable components for versatile mounting Industry leading 134 dB input dynamic range for distortion free transmission

  • Up to 56 MHz bandwidth for flexibility in any RF environment Exceptionally low latency (1.9 ms)

  • External charging and powering via USB-C (receiver only)

  • Smart Assist app for monitor & control

  • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)



Buy your Sennheiser EW-DP Set from your local wireless microphone experts, Musiclab in Brisbane.

For more information on the Sennheiser EW-DP range, please visit the manufacturer's website.



EW-DP System Specifications:



  • Audio link frequency ranges (Australia):
    R1-6: 520 - 576 MHz
    R4-9: 552 - 607.8 MHz
    S1-7: 606.2 - 662 MHz
    Y1-3: 1785.2 - 1799.8 MHz

  • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz

  • Audio frequency response: 20 Hz - 20 @ 3 dBfs

  • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level

  • Dynamic range: 134 dB

  • System Latency: 1.9 ms

  • Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

  • Relative air humidity: 5 - 95 % (non-condensing)



What’s in the box?

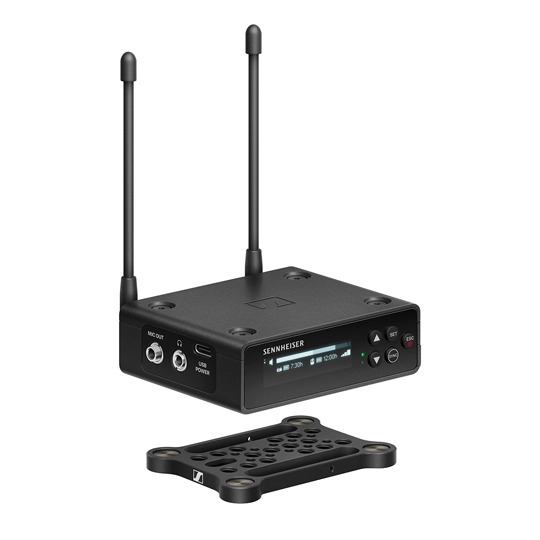

  • EW-DP EK digital portable single channel receiver

  • EW-D SKM-S digital handheld transmitter

  • MMD 835 dynamic cardioid microphone module

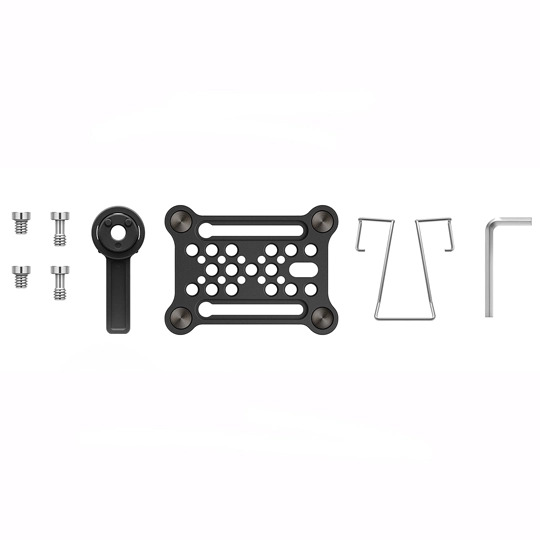

  • Mounting kit (cheese plate, cold shoe, belt clip & screws)

  • BA 70 li-ion battery & (2) AA battery

  • Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable

  • Locking 3.5 mm TRS plug to XLR plug cable

  • USB-C charging cable



SKU EWDP-ME4-SET-Y13
Model # 700029
Barcode # 4044155270884
Brand Sennheiser

Two Years
