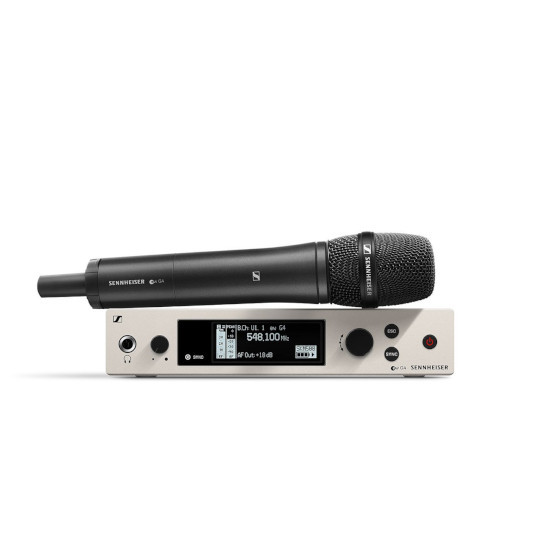

Sennheiser EW 500 G4-945 Wireless Vocal Set (Frequency Band B)

Reliable Handheld Wireless Systems

Sennheiser's renowned 500-945 G4 gives you a secure wireless system that's easy to use, and ready to take on tour. This wireless system's SKM 500 G4 handheld transmitter features a tight supercardioid pattern, which is ideal for picking up the vocalist and not the feedback. Both the transmitter and the included EM 500 G4 rackmount receiver operate on an 88MHz bandwidth, giving you a massive 3,520 tunable frequencies in each of Sennheiser's designated frequency bands — the more frequency choices you have results in fewer dropouts and less interference.

The OLED display on the ew 500-945 G4 features automatic dimming, a blue sync LED, red warning LED, and dedicated Escape button. Grabbing one of these systems will give you the benefit of increased power, remote operation, and as always backward compatibility with our previous evolution systems.

Freq Band B: 626-668 MHz



Features at a Glance:

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

The pro's choice. evolution wireless G4 – 500 Series.

Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.



500 Series

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations



What's in the Box?

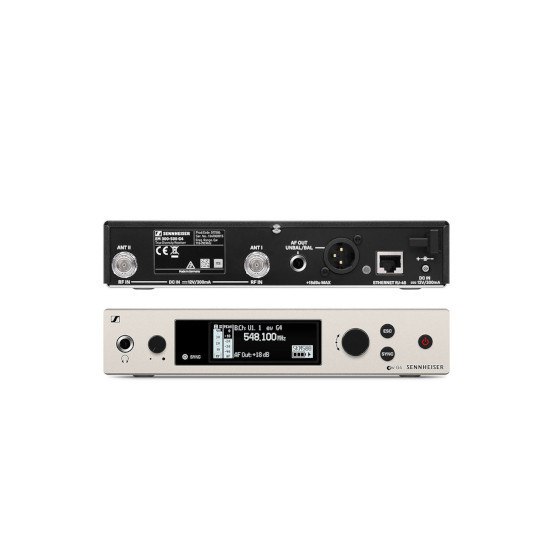

• EM 300-500 G4 true diversity receiver

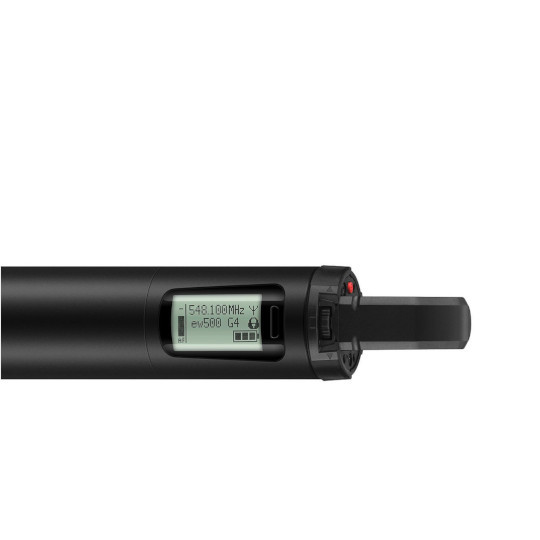

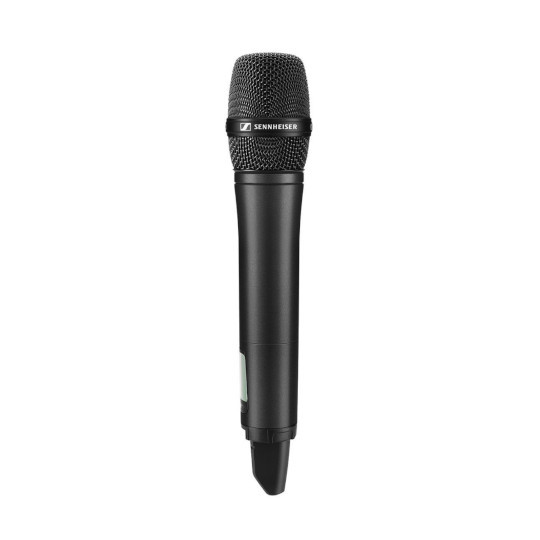

• SKM 500 G4 handheld transmitter

• MMD 935-1 microphone head (only 935 variants)

• MMD 945-1 microphone head (only 945 variants)

• MMK 965-1 microphone head (only 965 variants)

• MZQ 1 microphone clamp

• 2 AA batteries

• power supply

• GA 3 rackmount set

• 2 rod antennas

• quick guide

• safety guide

• manufacturer declaration sheet
