Sennheiser EW 500 FILM G4 Portable Wireless Combo Set (Frequency Band B)

SKU: EW500-FILM-G4-GBW

Have a Question

Portable Wireless for your live location

The Sennheiser EW 500 FILM G4 Portable Wireless Combo Set is right at home on a live stage in your favourite venue or at major festivals, in houses of worship, and in the theatre. Sound engineers and avid users love its flexibility and versatility whereas more casual users will adore how easy it is to setup, allowing them to fully concentrate on their main goal: connecting with their audience. Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

Covers all sorts of applications on the set: The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

Frequency range: B 606 - 678 MHz

Sennheiser EW 500 FILM G4 Features at a Glance:

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

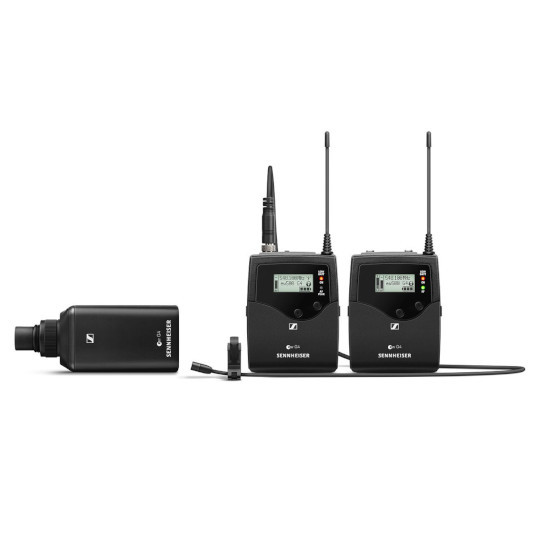

What's in the box?

EK 500 G4 camera receiver
SK 500 G4 bodypack transmitter
SKP 500 G4 pro plug-on transmitter
MKE 2 clip-on microphone
4 AA batteries
CL 1 3.5 mm jack cable
CL 500 XLR to 3.5 mm jack adapter cable
CA 2 camera adapter
fur windscreen for MKE 2
quick guide
safety guide
manufacturer declaration sheet

Sennheiser EW 500 FILM G4 Tech Specs:

EK 500 G4

Dimensions: Approx. 82 x 64 x 24 mm

Compander: Sennheiser HDX

THD, total harmonic distortion" ≤ 0.9 %

Weight: (incl. batteries) approx. 130 g

Audio output" 3.5 mm jack socket: +17 dBu (mono, balanced)

Signal-to-noise ratio: Line: ≥ 110 dBA, Phones: approx. 90 dBA

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA

Adjacent channel rejection: Typically ≥ 65 dB

Intermodulation attenuation: Typically ≥ 65 dB

Powering: 3 V battery / 2.4 V rechargeable battery

Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity: < 1.6 μV for 52 dBA eff S/N

Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV

Temperature Range: -10 °C to +55 °C

Receiver Principle: Adaptive diversity

Blocking: ≥ 70 dB

Frequency range: AS: 520 - 558 MHz

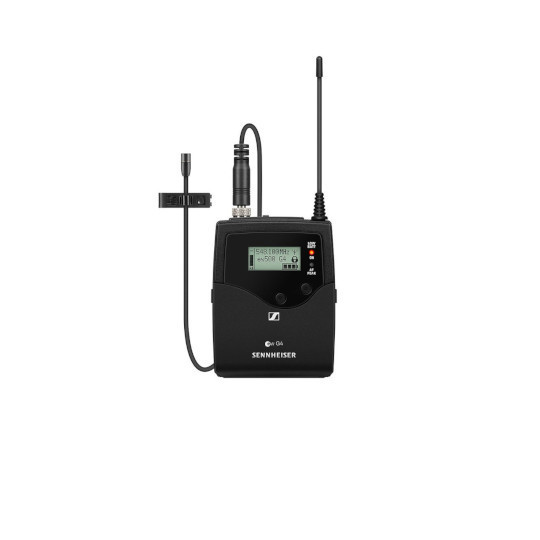

SK 500 G4

Dimensions: Approx. 82 x 64 x 24 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 160 g

Signal-to-noise ratio: ≥ 115 dBA

RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA

Input impedance: 40 kΩ, unbalanced / 1 MΩ

Max. Input voltage: 3 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

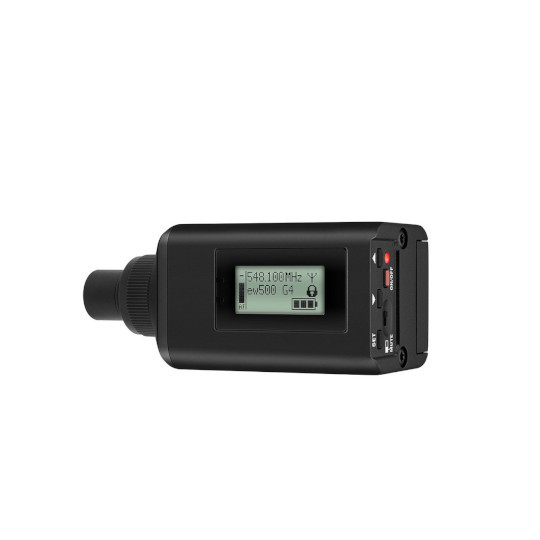

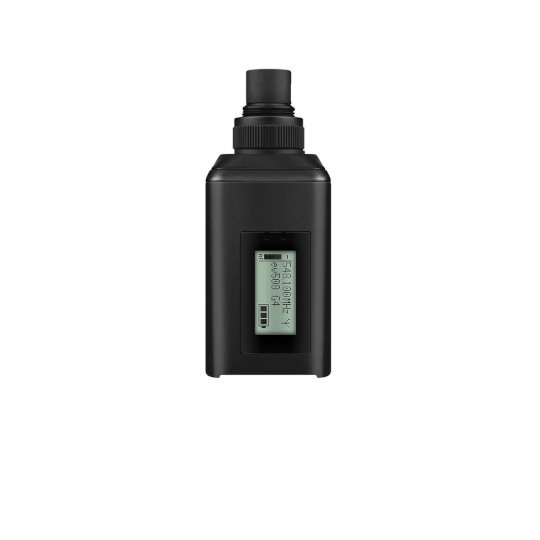

SKP 500 G4

Dimensions: Approx. 105 x 43 x 43 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: ≤ 0.9 %

Weight: (incl. batteries) approx. 195 g

Signal-to-noise ratio: ≥ 120 dBA

    RF output power: switchable:
    Low: typ. 10 mW,
    Standard: typ. 30 mW,
    High: typ. 50 mW

Switching bandwidth: up to 88 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption: at nominal voltage: typ. 210 mA
with transmitter switched off: ≤ 25 µA

Input impedance: 68 kΩ, unbalanced

Max. Input voltage: 6 Veff

Powering: 3 V battery / 2.4 V rechargeable battery

AF frequency response: 80 – 18,000 Hz

Temperature Range: -10 °C to +55 °C

Frequency stability: ≤ ±15 ppm

MKE 2

Connector: 3.5 mm jack

Frequency response: 20 to 20.000 Hz ± 3 dB

Max. sound pressure level: 142 dB

Cable length: approx. 1.60 m

Transducer principle: pre-polarized condensor microphone

Pick-up pattern: omni-directional

Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB

Equivalent noise level: 26 dB

Equivalent noise level weighted as per CCIR 468-3: 39 dB

SKU	EW500-FILM-G4-GBW
Model #	509880
Barcode #	4044155265576
Brand	Sennheiser

2 Years

Sennheiser EW 500 FILM G4 Features:

Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering
