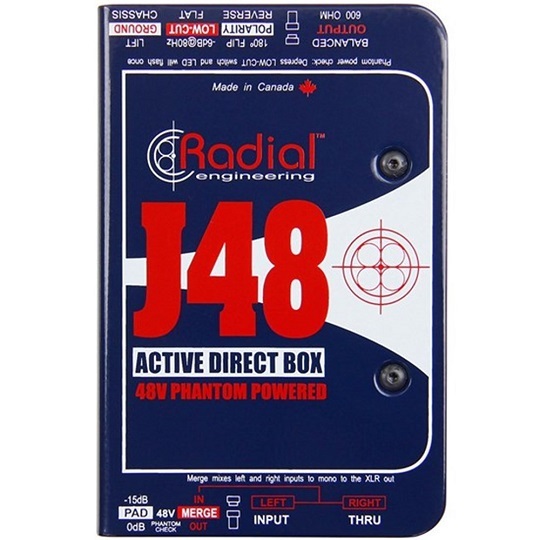

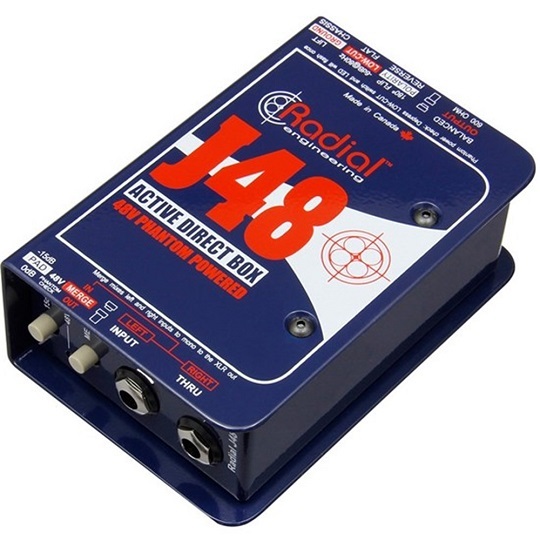

Radial J48 Phantom Powered Active Direct Box

SKU: RA-J48

$249.00
Share:



Phantom Powered Active Direct Box

The J48™ is an active direct box that has been optimized to handle extreme transients without distortion, with a linear frequency response that extends from 20Hz up to 40kHz. Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts.


Higher Rail Voltage, Higher Headroom

Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes which have are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.



J48 Applications:

Radial L48 Live application diagram

Radio J48 Studio Use diagram

Radial J48 Reamping Diagram



Radial Engineering J48 Features at a Glance:

  •     Exceptional headroom & dynamic range
  •     Retains the natural sound of the instrument
  •     Merge switch sums stereo instruments to mono
  •     Powered by 48V phantom, no batteries required
  •     15dB Pad to reduce input sensitivity
  •     Polarity reverse to reduce feedback
  •     80Hz High Pass Filter
  •     Ground Lift Switch



Buy your JDI J48 Phantom Powered Active Direct Box from for Radial specialist in Brisbane - Musiclab!

For more detailed information, please visit Radial Engineering's website.

Radial Engineering J48 Tech Specs:

  • Audio circuit type:     Proprietary analog circuit with low-noise op-amp
  • Frequency response:     20Hz ~ 20kHz
  • Dynamic range:     109dB
  • Total harmonic distortion:     0.002% @ -5dBu
  • Intermodulation Distortion:     0.003% @ -3dBu
  • Phase Deviation:     +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
  • Input Impedance:     220kΩ - ¼" input
  • Output Impedance:     200Ω - XLR output
  • Equivalent Input Noise:     -103dBu
  • Noise:     -99dB below 0dBu
  • Maximum Input:     +10dBu
  • Features
  • Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF

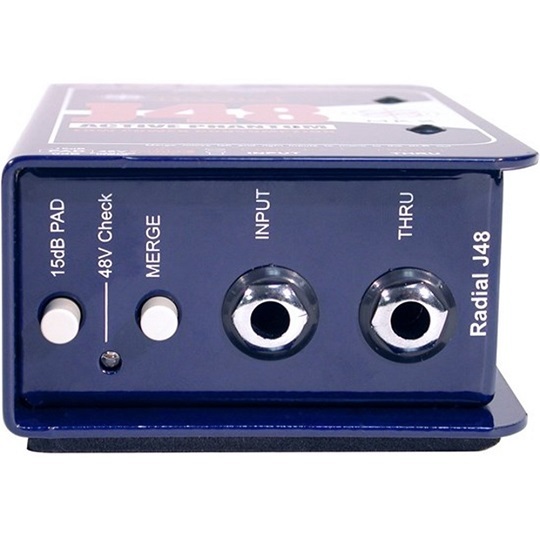

  • Input Connectors:     1/4"

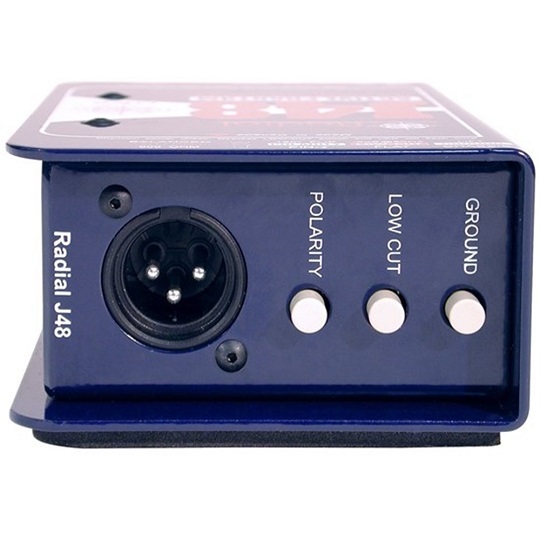

  • Output Connectors:     Balanced XLR, 1/4" Thru
  • General
  • Construction:     14 gauge steel chassis and outer shell
  • Size (L x W x D):     3.3" x 5.0" x 2" (84 x 127 x 48mm)
  • Weight:     1.55 lb (720 g)
  • Power:     48V phantom - proprietary digital switching
  • Conditions:     For use in dry locations only between 5°C and 40°C
  • Warranty:     Radial 3-year, transferable
SKU RA-J48
Brand Radial Engineering

Radial Engineering J48 Features:

  •     Exceptional headroom & dynamic range
  •     Retains the natural sound of the instrument
  •     Merge switch sums stereo instruments to mono
  •     Powered by 48V phantom, no batteries required
  •     15dB Pad to reduce input sensitivity
  •     Polarity reverse to reduce feedback
  •     80Hz High Pass Filter
  •     Ground Lift Switch
