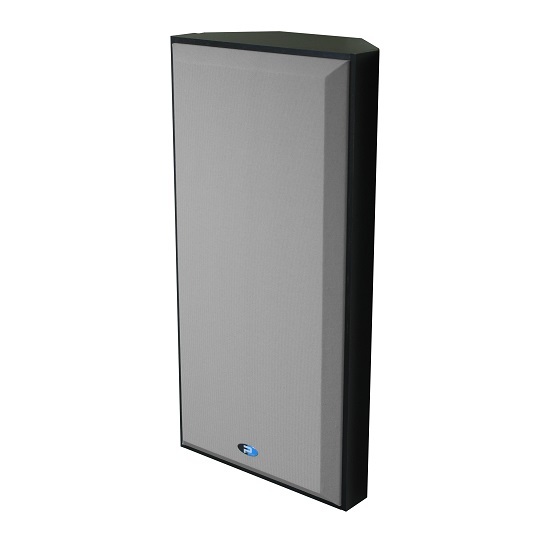

MaxTrap - Broadband Corner Bass Trap
The Primacoustic MaxTrap is a highly effective bass trap that combines a diaphragmatic resonator with a full-size acoustic panel in a sealed enclosure to provide 3-way absorption throughout the full frequency spectrum.

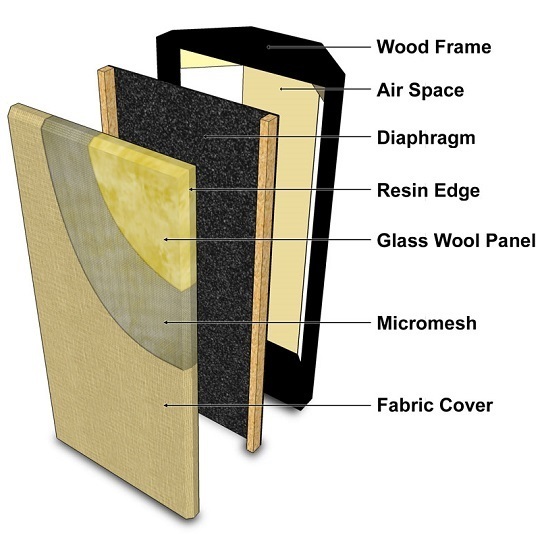

This unique design begins with a 3″ thick front-mounted 24″ x 48″ Broadway panel made from 6lb per cubic foot high-density glass wool fiber. This effectively absorbs frequencies down to 100Hz. Behind the panel, a closed air space takes full advantage of quarter-wavelength principles to further reinforce low frequency absorption in this critical bass region.
But where the MaxTrap truly shines is in its capacity to absorb deep, low bass. The MaxTrap’s remarkable low frequency extension is achieved by way of a suspended diaphragm that stretches the full size of the device, capturing bass by vibrating where the low frequencies are most prominent. As room modes combine, they either reinforce certain frequencies or cancel them out. The MaxTrap’s limp-mass structure naturally migrates to the most powerful frequencies where it quietly resonates to remove excess bass and subsequent modal frequencies.
Available in black, beige or grey, MaxTraps ship flat and assemble in minutes using standard household tools. Optimum placement is in corners where walls intersect and sound naturally gathers. For rooms where windows and doors are in the way, the wall-mountedPrimacoustic FullTrap presents an excellent alternative. When combined with Primacoustic Broadway panels and diffusers, one can turn virtually any room into a well balanced acoustic space.
The Primacoustic Maxtrap Bass Trap does require some assembly Also see the attached the handy PDF Installation Guide in the images.
The Primacoustic MaxTrap; quite simply, the best bass trap made today.
|Brand||Acoustic Treatment | Primacoustic|
|Frame Material||Black melamine laminated MDF|
|Dimensions||24” (610mm) x 48” (1219mm) x 19” (See detail dimensions)|
|Panel Material||Formed, semirigid inorganic glass fibers; Density 6.0 lbs. pcf. (96 kg/m3)|
|Fabric Facing||Acoustically transparent polyester|
|Diaphragmatic Membrane||Loaded vinyl, 1.0 lbs. per square foot (4.88 Kg/m2)|
|Fabric Color Codes||Black=00, Beige=03, Grey=08|
|Mounting Hardware||Wall mounting cleat, wood screws and drywall anchors included.|
