The Industry-standard Large-diaphragm Condenser
The Neumann U87 has been a staple in the recording industry for over 40 years and can be found in professional studios worldwide. A large dual diaphragm capsule offers a warm, well-balanced sound with three selectable polar patterns (omni, cardioid and figure-8). Combined with a -10 dB PAD and high-pass filter switch, the U87ai is an incredibly versatile microphone suitable for any number of recording applications. While its capsule has remained unchanged since 1967, the U87ai’s circuity has been modified to provide an improved signal-to-noise ratio and higher sensitivity to increase operational headroom.

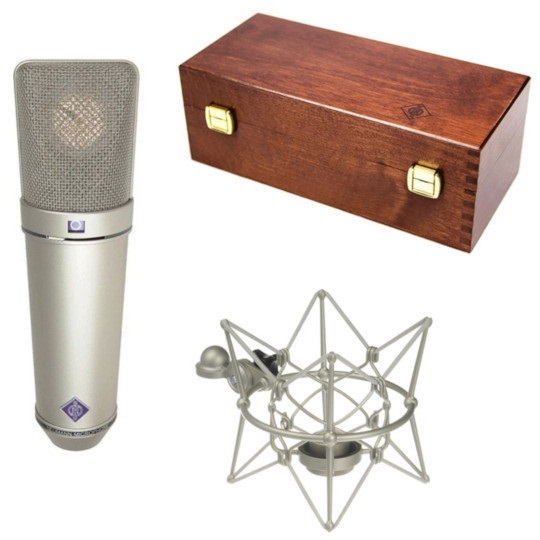

Includes EA 87 shockmount and wooden case.
- Transducer Type: Condenser
- Frequency Response: 20 Hz - 20 kHz
- Polar Patterns: Omnidirectional / Cardioid / Figure-8
- Connection: XLR
Also available in Matte Black Finish
Buy your Neumann U87ai Studio Set at the right price from your Neumann specialists in Brisbane - Musiclab!
For more detailed information please contact the manufacturers website.
Neumann U87ai Studioset Specs:
- Acoustical operating principle Pressure gradient transducer
- Directional Pattern Omnidirectional, cardioid, figure-8
- Frequency Range 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm 20/28/22 mV/Pa ± 1 dB (Omni/cardioid/8)
- Rated Impedance 200 ohms
- Rated load impedance 1 kohms
- Equivalent noise level, CCIR 1 26/23/25 dB (Omni/cardioid/8)
- Equivalent noise level, A-weighted 2 15/12/14 dB-A (Omni/cardioid/8)
- Maximum SPL for THD 0.5% 3 117 dB (cardioid)
- Maximum SPL for THD 0.5% with preattenuation 4 127 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5 68/71/69 dB (Omni/cardioid/8)
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6 79/82/80 dB (Omni/cardioid/8)
- Maximum output voltage -6 dBu
- Supply voltage (P48, IEC 61938) 48 V ± 4 V
- Current consumption (P48, IEC 61938) 0.8 mA
- Matching connector XLR 3 F
- Weight 500 g
- Diameter 56 mm
- Length 200 mm
