Neumann MCM 114 Clip Mic System Set for Brass/Sax/Universal


RRP $1,349.00
SAVE $200.00

or 4 payments of $287.25 with Info

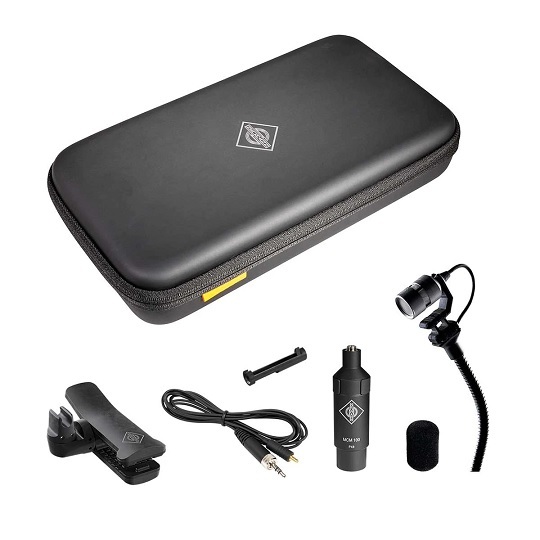

A complete set for using the Miniature Clip Mic system on the bell of a trumpet, trombone, saxophone or other horn, on percussion instruments and on pole stands.


Neumann MCM 114 Set Brass/Sax/Uni - A Miniature Mic Clip Set for Trumpet, Trombone, Saxophone & more.


The new reference in close mic'ing

The Miniature Clip Mic MCM System raises the bar of electret capsules, and as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.


The Capsule: 8 Parts of Perfection

A new level of tonal balance, more body, especially in the bass and mid-range, and transparency in the treble: The newly developed KK 14 cardioid capsule overcomes former limitations of the electret principles and catches the signature sound of a wide range of acoustic sources. To achieve this, Neumann developed a layer-based design. Each of the capsulesʼ eight key components are designed for optimal performance, manufactured independently, and assembled by hand later on. The strict quality control also guarantees an unheard level of tonal consistency. Each capsule sounds exactly the same and delivers the neutral Neumann-style sound, saving time during setup and EQ tuning especially when running multiple microphones simultaneously.

With ultra-low self-noise of 23 dBA and an extremely high maximum sound level of 153 dB SPL, the KK 14 delivers perfect results from both very quiet and very loud instruments. The titanium housing is road tough and protects the more sensitive parts for years to come.



The MCM System includes interchangeable cable options with 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors – no adapter needed. The microphone can also work with a wired connection using the MCM 100 high-end output stage and the 3.5 mm jack cable.


For more information on the Neumann MCM 114 Set, please visit the manufacturer's website.



• Acoustical operating principle: Pressure gradient transducer

• Directional Pattern: Cardioid

• Frequency Range: 20 Hz - 20 kHz

• Sensitivity at 1 kHz into 1 kohm: 2.8 to 4.4 mV/Pa

• Rated Impedance: 50 Ohms

• Rated load impedance: 1000 Ohms

• Equivalent noise level, CCIR 1: 31 dB

• Equivalent noise level, A-weighted 2: 23 dB

• Signal-to-noise ratio, CCIR (re. 94 dB SPL) 3: 63 dB

• Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 4: 23 dB

• Operating temperature range: 0 °C - +40 °C

• Operating Humidity range: 0 % - 90 % rel. hum

• Storage temperature range: −20 °C - +70 °C

• Storage Humidity range: 0 % - 95 % rel. hum


Model # 008711
Barcode # 4044155274387
Brand Neumann

24 Months
