Neumann BCM104 Condensor Broadcast Microphone

SKU: BCM104

$1,739.00
Share:



Perfect Gateway to your Listeners!

The BCM 104 is a dedicated broadcast microphone specially designed with radio announcers and DJs in mind, to convey emotion with Neumann perfection. Its functionally optimized design features an integrated pop screen and a shock protected large diaphragm condenser capsule, specially developed for speech. Transformerless circuitry ensures a direct, noise-free sound.



Broadcast is a much more immediate way to reach the listeners than studio recording. That’s why Neumann decided to develop a microphone that specifically addresses the needs and working conditions of radio DJs, announcers, newscasters, talk show hosts, and all those who guide us through the day with their stories, good vibes, and the latest information.

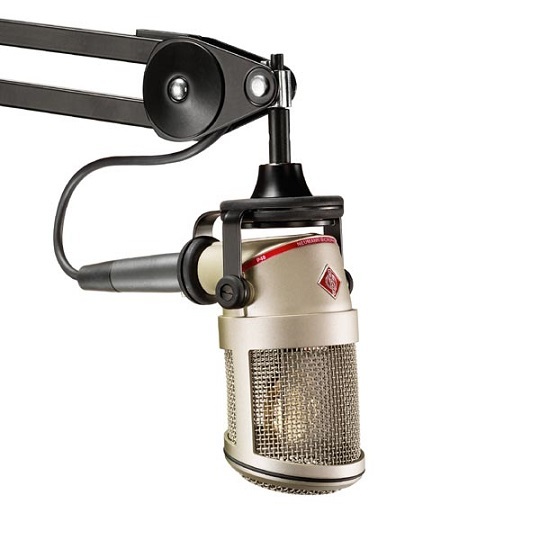

The BCM 104 is designed to convey emotion with perfection. Its characteristic shape is functionally optimized for use with industry standard microphone boom arms. Thanks to its elastic mount, the BCM 104 is well protected against structure borne noise. An integrated pop screen behind the headgrille protects the capsule from air blasts and plosives. For increased hygiene, the headgrille twists off easily for quick cleaning.

The large diaphragm condenser capsule of the BCM 104 captures each nuance of your voice without coloration or unwanted artifacts. The BCM 104’s electronic circuit has an extremely low self-noise of only 7 dB-A and can handle enormous sound pressure levels of up to 138 dB without distortion.

Its balanced output operates transformerless to ensure minimal hum interference and high common mode rejection against extraneous signals e.g. from computer screens.

A subsonic filter suppresses frequencies below 20 Hz. For close speech operation, an optional 100 Hz low cut is available to compensate for the proximity effect. A second switch activates a –14 dB preattenuation to reduce the BCM 104’s output level for use with equipment designed for dynamic microphones (which typically have a much lower sensitivity than condenser microphones). Both switches are hidden inside the microphone as the low cut and preattenuation options are usually selected only once, at setup.



Designed for the Human Voice

The BCM 104 has a fixed cardioid pattern with excellent rejection of rearward sound. Its frequency response is very linear with a gentle presence boost around 4 kHz and a slight treble lift above 10 kHz for enhanced speech intelligibility. Due to its outstanding transient response, the BCM 104 captures each nuance of the human voice with stunning detail. Because of its wide frequency response, the BCM 104 can be used for much more than speech applications, e.g. sung vocals and a wide variety of instruments.

  •     Functionally optimized design
  •     Specially designed large diaphragm condenser capsule
  •     Tight cardioid pattern
  •     Integrated pop screen and shock mount
  •     Headgrille twists off easily for quick cleaning
  •     Internal pad and low cut switches



Neumann BCM 104 Features at a Glance:

  •     Cardioid microphone for incredible studio vocals, voice overs and broadcast professionals.
  •     Large diaphragm condenser capsule with switchable proximity compensation
  •     Distinctive design
  •     Integrated pop screen
  •     Quick release head grille for easy cleaning
  •     Individual head grilles available for each user
  •     Requires +48V phantom power

Buy your Neumann BCM104 from your Neumann experts - Musiclab in Brisbane!



Neumann BCM 104 Specs:

  • Acoustical operating principle     Pressure gradient transducer
  • Directional Pattern     Cardioid
  • Frequency Range     20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm     22 mV/Pa = –33.1 dBV ± 1 dB
  • Sensitivity at –14 dB attenuation     4.4 mV/Pa
  • Rated Impedance     50 ohms
  • Rated load impedance     1 kohms
  • Equivalent noise level, CCIR 1     18 dB
  • Equivalent noise level, A-weighted 2     7 dB-A
  • Maximum SPL for THD 0.5% 3     138 dB
  • Maximum SPL for THD 0.5% with preattenuation 4     152 dB
  • Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5     76 dB
  • Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6     87 dB
  • Maximum output voltage     10 dBu
  • Supply voltage (P48, IEC 61938)     48 V ± 4 V
  • Current consumption (P48, IEC 61938)     3.2 mA
  • Matching connector     XLR 3 F
  • Weight     500 g
  • Diameter     64 mm
  • Length     85 mm
  • Height     110 mm (without suspension)



SKU BCM104
Model # 008483
Brand Neumann

Neumann BCM 104 Features:

  •     Cardioid microphone for incredible studio vocals, voice overs and broadcast professionals.
  •     Large diaphragm condenser capsule with switchable proximity compensation
  •     Distinctive design
  •     Integrated pop screen
  •     Quick release head grille for easy cleaning
  •     Individual head grilles available for each user
  •     Requires +48V phantom power
