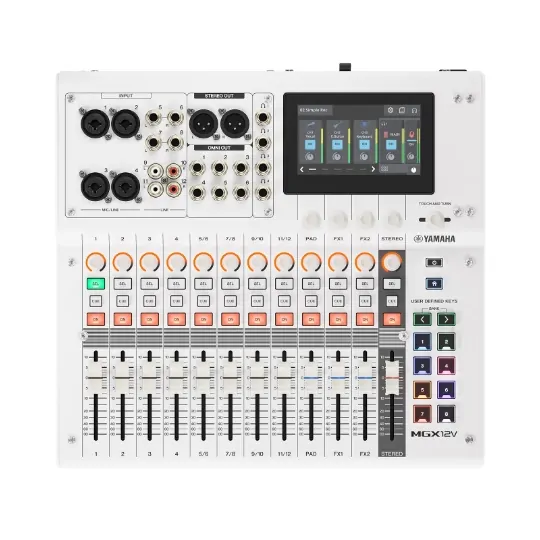

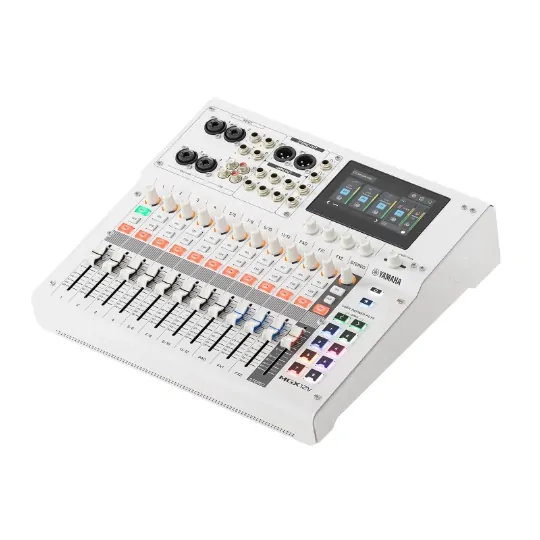

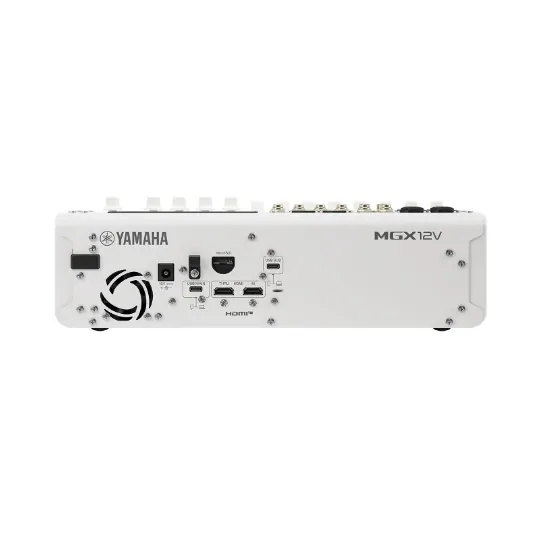

Yamaha MGX12V Digital Mixing Console with Video Interface (White)

The Yamaha MGX12 is a 18-channel digital mixing console that builds on the legacy of the well-established and appreciated MG series, adding digital capabilities and a host of features that make it a great choice for live and installed sound, podcast/live streaming, recording, production, and many more audio/video applications

In addition to the essential features and versatility you expect from a professional mixer, the MGX12V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

Designed to be operated quickly and intuitively through its touch-panel GUI with 4.3-inch Touchscreen with 5 Control Knobs, a comprehensive selection of I/O options allow the user to design the system from the bottom up for any usage purpose. Sound quality is bolstered by MGX preamps with 86 dB of gain range, and an included software bundle that features studio mainstays Cubase, Wavelab, and more. Ensure your event goes off as smoothly as possible with assistive additions like Automix, Clip Safe, and scene recall. Whether in clubs, convention centres, or houses of worship, the MGX quickly accommodates a wide range of audio and video production situations, with the quality and durability that users expect from Yamaha.

Features:

• 11 + 1 fader configuration (non-motorised fader)

• A 4.3-inch touchscreen with five control knobs

• Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return

• Busses: 1 STEREO + 8 MIX

• Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)

• Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones

• USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)

• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)

• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)

• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough

• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall

• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

For more information, please visit the Yamaha website.
