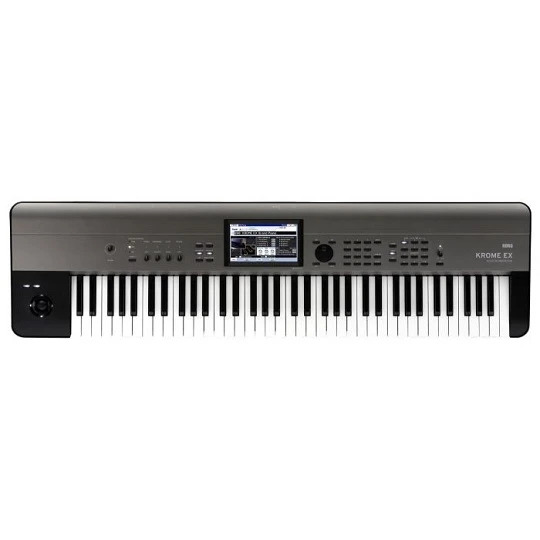

Korg Krome EX 73-Key Music Workstation

SKU: KROME73EX

Korg's Krome EX is a music workstation which is focused on packing the most versatile sounds into a straightforward platform. It has been designed to match the vast needs of the current musical landscape, and becuase of this, KROME EX has an emphasis on sounds that can immediately fit into productions of all types.

In addition to basic sounds that never grow old, KROME EX provides multiple new programs and PCM data, including piano programs prepared just for this product. This instrument provides high-quality, usable sounds that take advantage of the KROME's high performance specifications. The body also contains a newly redesigned build and look to accompany the sounds.

Key Features:

Carefully selected sounds with immediate usability
Electric pianos with beautiful warmth and realism
Drum sounds with fine-tune control over resonance
Drum Tracks deliver realistic grooves
Expertly created, in-demand sounds including 896 Programs and 512 Preload Combinations
Dual polyphonic arpeggiators

For more information on the Korg Krome EX, please visit the manufacturer's website.

Keyboard:

KROME EX-61:
Semi Weighted Keyboard. Velocity sensitive is supported, after touch is not supported.
Standard C2 - C7 (transposable in the range [C1...C6]-[C3...C8])

KROME EX-73:
Semi Weighted Keyboard. Velocity sensitive is supported, after touch is not supported.
Standard C1 - C7 (transposable in the range [C0...C6]-[C2...C8])

KROME EX-88:
NH (Natural Weighted Hammer Action) keyboard. Velocity sensitive is supported, after touch is not supported.
Standard A0 - C8 (transposable in the range [A-1...C7]-[A1...C9])
*The NH keyboard reproduces the touch of an acoustic piano, with a heavier feel in the low register and a lighter feel in the upper register.

System:

EDS-X（Enhanced Definition Synthesis - eXpanded）

Sounds:

Maximum Polyphony:
120 voices (120 Oscillators) / Single Mode, 60 voices (120 Oscillators) / Double Mode
*The maximum simultaneous voice polyphony will vary depending on oscillator settings, velocity crossfading and whether you are using mono or stereo multisamples.

PCM Memory:
4 GB (In case of 48 kHz, 16-bit Linear PCM converted)
728 multisamples (including 44 Stereo multi-samples)
2,502 drumsamples (including 574 Stereo Drumsamples )

Program:

Oscillator:
OSC1 (Single); OSC1 + 2 (Double): Stereo multisamples are supported 8 velocity zones per oscillator with switching, crossfades and layers

Filters:
Four types of filter routing (single, serial, parallel, 24 dB). Two multi-mode filters per oscillator (low pass, high pass, band pass, band reject)

Driver:
Per-voice nonlinear driver and low boost

EQ:
Three bands, with sweepable mid

Modulation:
For each oscillator, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), two AMS mixers, Pitch EG, Common LFO, two common key tracking generators

Combination:

Timbre Number:
Max 16. For each Timbre, keyboard and velocity split/layer/crossfades.
Modifications to the program settings via the Tone Adjust function.

Drum Kit:
Stereo and mono drum samples. 8 velocity zones switch (crossfades and layers)

The number of Combination / Program / Drum Kit

User Combination:
768 Combination (512 Preload)

User Program:
1536 Program (896 Preload)

User Drum Kit:
80 Drum Kit (48 Preload)

Preset Program:
256 GM2 Program + 9 GM2 Drums Program

Effects:

Insert Effects:
5 Insert Effects (stereo in/out)

Master Effects:
2 Master Effects (stereo in/out)

Total Effect:
1 Total Effect (stereo in/out)

Timbre / Track EQ:
3-band EQ per in 1 Timbre / in 1 Track

Effect Types:
193 types (Usable as insert, master, or total effects. However, double-size effects cannot be used as a total effect.)

Modulation:
Dynamic Modulation, 2 Common LFO

Effects Control Busses:
Stereo side chain (Limiter, Gate, Vocoder etc.)

Effect Preset:
32 preset per effect

Polyphonic Arpeggiator:

Program Mode:
1 unit

Combination, Sequencer Mode:
2 units are available

Number of pattern:
5 preset Arpeggio pattern, 1,088 User Arpeggio pattern (960 Preload)

Drum Track:

Preset Patterns:
710 patterns (Common with the preset pattern of the Sequencer mode)

User Patterns:
1,000 patterns (Pattern created in Sequencer mode can be converted to drum track user pattern)

Others:
Configurable “Trigger Mode / Sync / Zone”

Sequencer:

Tracks:
16-track + 1 master track

Number of Songs:
128 Songs

Resolution:
♩=1／480

Tempo:
40.00 - 300.00 (1/100 BPM resolution)

Maximum memory:
210,000 MIDI events

Template Songs:
16 preset / 16 user template songs

Cue List function:
20 Cue List
*Songs can be arranged consecutively or repeatedly in up to 99 steps, a cue list can be converted back into a song.

Pattern / RPPR (Realtime Pattern Play and Recording):
710 Preset / 100 User pattern (Per song). 1 pattern set per song

Format:
KORG (KROME) format, SMF format 0 and 1

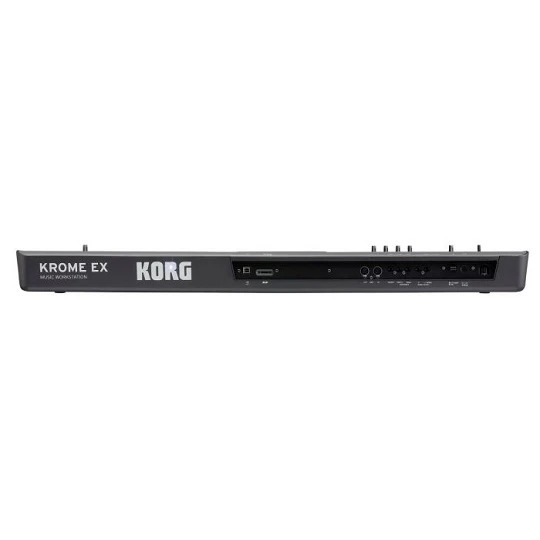

Outputs:

AUDIO OUTPUT, L／MONO, R
6.3mm (Mono) Phone jack, Unbalanced.
Output Impedance: 1.1[kΩ] (L / Mono terminal: in case of Mono output, = 550[Ω]).
Maximum level: +16.0 [dBu], Load Impedance: more than 10 [kΩ].

Headphone Output:
3.5mmStereo phone jack.
Output Impedance: 33[Ω].
Maximum level: 60 + 60 [mW] (In case of 33[Ω] Loaded)

Control Input:
DAMPER (Half Damper supported), ASSIGNABLE SWITCH, ASSIGNABLE PEDAL

MIDI:
IN, OUT

USB:
USB-MIDI Interface (TYPE B) x 1

SD Card Slot:
Max 2 GB / SD Memory Card is supported
Max: 32 GB/ SDHC Memory Card is supported (SDXC Memory Card is not supported)

Principle Specifications:

Power:
Power supply (DC12V 3.5A), POWER switch

Power Consumption:
13W

Dimensions (W x D x H):
KROME EX-61: 1,027 mm × 313 mm × 93 mm / 40.43 x 12.32 x 3.66 inches
KROME EX-73: 1,191 mm × 313 mm × 93 mm / 46.89 x 12.32 x 3.66 inches
KROME EX-88: 1,448 mm × 383 mm × 131 mm / 57.01 x 15.08 x 5.16 inches

Weight:
KROME EX-61: 7.2 kg / 15.87 lbs.
KROME EX-73: 8.2kg / 18.08 lbs.
KROME EX-88: 14.7kg / 32.41 lbs.

Included Items:
AC Adapter
