Dynaudio LYD 48 3-way Powered Studio Monitor (Left Side) - Black

[Each]

SKU: LYD-48B-L

$1,679.00
RRP $2,099.50
SAVE $420.50
Normally Available Within 7 Days
Share:



Quality, Accurate Monitoring

The Dynaudio LYD 48 monitors are going to take your mixes to a new level of professionalism. These guys are the new flagship of the LYD range, and the LYD 48 as a 3-way monitor, gives you a real boost in performance. If you've been used to monitoring with a pair of 2-way monitors, you'll really appreciate having a dedicated midrange driver which will just lift your listening experience to a whole new level, not to mention improved overall accuracy.

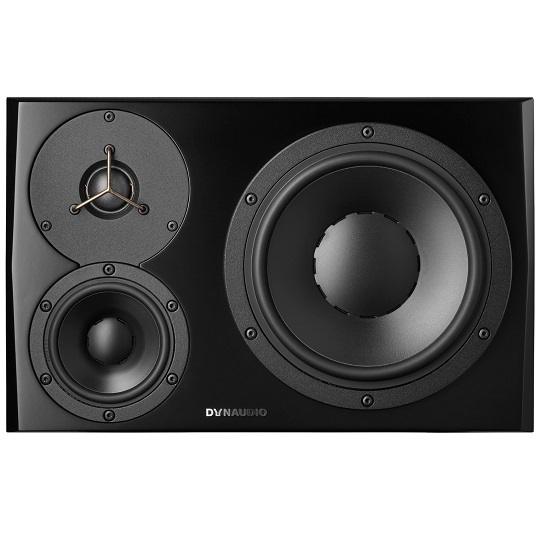

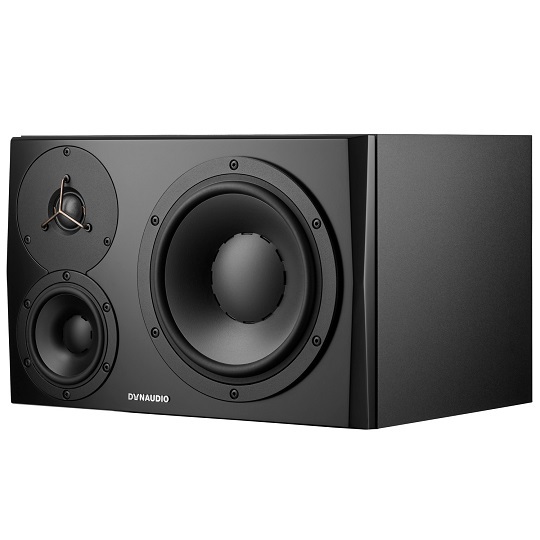

Our new LYD 48 features a 3-way speaker design, coupling an 8” woofer with a 4” midrange and a 1” tweeter, making them well suited for nearfield as well as midfield monitor applications. Obviously, it will be available in the sleek white and black design, as the original LYD range, but you can also get it in a classic all-black version.



Triple Power, Bass Extension & Sound Balance

Each of the woofers and the tweeter are powered by a dedicated state-of-the-art Class D amplifier, delivering 80W / 50W / 50W of power per monitor. The amp features a 96kHz/24bit signal path and selectable input sensitivity, as well as the same Standby Mode as the original LYD speakers.

Also, like the other LYD monitors, the new 3-way version features Bass Extension, allowing for a choice between the default setting or pushing towards maximum bass or maximum volume. Changes will affect the low-end response, but importantly the linear frequency response remains intact.

The Sound Balance option is basically a tilt filter that tips the tonal balance gently. In short, it emphasizes one end of the spectrum while decreasing the opposite end by the same amount. This approach is different from typical shelving filters, as it alters the frequency response, but without interfering with the phase. By default the monitor is set flat, but the Sound Balance toggle switch can go for either ‘Bright’ or ‘Dark’.



Dynaudio LYD 48 3-way Powered Monitor Features:

  • Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
  • Designed in mirror-imaged pairs, sold singly
  • Class D tri-amplified: LF 80W, MF 50W, HF 50W
  • Provides astonishing clarity across the frequency spectrum
  • Delivers neutral midrange response critical for proper placement of vocals and instruments
  • Advanced DSP lets you adjust low-frequency extension by +/-10Hz
  • Position and Sound Balance controls for optimizing performance for any environment
  • Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark



LYD48 Specs:part 2
Max SPL (1m, pair): 112dB
Principle: Bass reflex
Crossover Frequencies: 460Hz / 5.5kHz
Tweeter: 1inch Soft dome
Midrange: 4inches
Woofer: 8inches
Dimensions (W x H x D): 369 x 234 x 328mm
Weight: 12kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100 mV
-6dB: 200 mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Midrange/Woofer): 50W/50W/80W
Type: Class D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Frequency response -6dB limits:
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response: 50Hz - 19kHz
Frequency response -10dB limits:
Bass extension +10Hz: 52Hz - 24kHz
Bass extension 0Hz: 42Hz - 24kHz
Bass extension -10Hz: 32Hz - 24kHz

































SKU LYD-48B-L
Brand Dynaudio

Dynaudio LYD 48 3-way Powered Monitor (Left) Features:



  • Studio Reference Monitor with 8" woofer, 4" midrange, and 1" tweeter
  • Designed in mirror-imaged pairs, sold singly
  • Class D tri-amplified: LF 80W, MF 50W, HF 50W
  • Provides astonishing clarity across the frequency spectrum
  • Delivers neutral midrange response critical for proper placement of vocals and instruments
  • Advanced DSP lets you adjust low-frequency extension by +/-10Hz
  • Position and Sound Balance controls for optimizing performance for any environment
  • Expertly designed and crafted at Dynaudio's facilities in Skanderborg, Denmark
