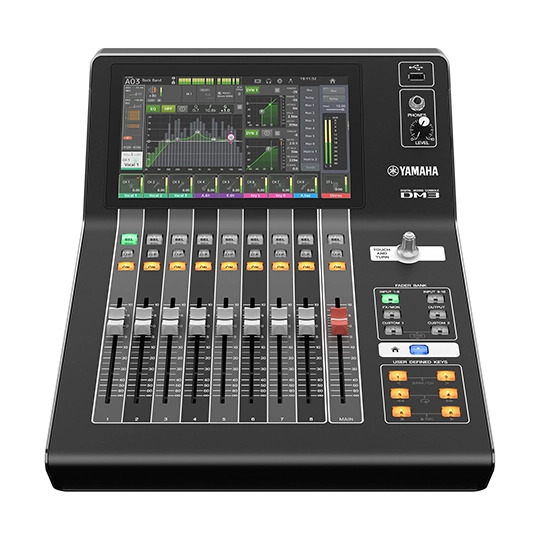

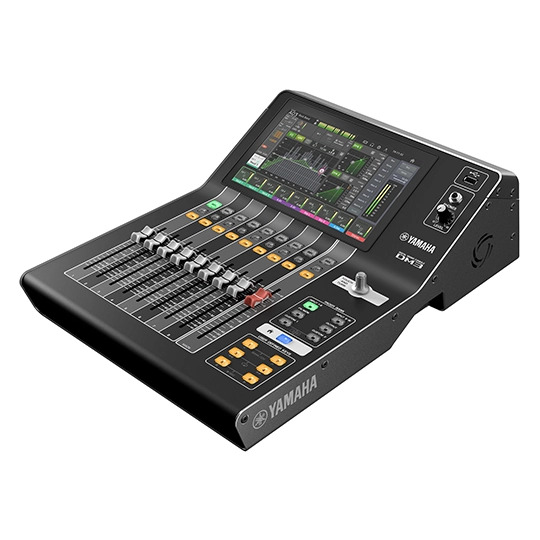

Yamaha DM3s Compact Digital Mixer


WAS $2,599.00
RRP $2,999.00
NOW $2,449.00
SAVE 18%!
Sale Ends in
00:00 am, 17 July 2024

The Yamaha DM3S Digital Mixing Console boasts a compact design with versatile capabilities suitable for a wide range of applications.


The Yamaha DM3S Digital Mixing Console, known for its portability, boasts a compact design with versatile capabilities suitable for a wide range of applications. The DM3 Standard variant delivers exceptional sound quality, a swift and straightforward setup process, and advanced professional features.


The DM3 breaks the mold of small mixers often limited by the size by offering unparalleled sound quality, effortless setup and operation, and professional-grade features. It caters to live sound, streaming, as well as live or home recording and music production – an unmatched combination within the realm of consoles of this size. In a dynamically changing world full of challenges and opportunities, DM3 mixing consoles empower users to achieve more than they ever thought possible with a compact digital console.


The foundation of any audio engineering endeavor lies in transparent, unadulterated sound. Yamaha mixers are rooted in this philosophy, aiming to faithfully capture the live sound without embellishment, allowing room for creative adjustments as needed. Despite its compact form factor, the DM3 Series maintains this legacy of sonic integrity by supporting sampling rates as high as 96 kHz. This makes it an ideal starting point for tasks like mixing, recording, live streaming, and even installations.


One of the most notable advantages of a digital console is its user-friendly operation and access to potent functions and features that would typically demand more expertise and external equipment in an analog setup. The DM3 Series embodies a "less is more" design ethos, incorporating a 9” touchscreen and a single Touch & Turn knob to oversee the majority of the console's functions. This results in a user experience reminiscent of using a smartphone.


For more information on the Yamaha DM3s digital mixer, please visit the Yamaha website.

EAN: 4957812669511



• Input Channels: 16 mono + 1 stereo + 2 FX return

• Mix Buses: 6

• Matrices: 2 (Supports Input to Matrix)

• Stereo Buses: 1

• FX Buses: 2

• Cue Buses: 1

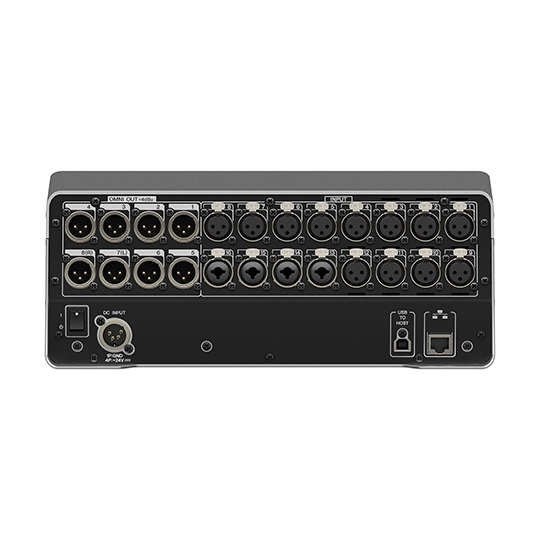

• Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)

• Analog Output: 8 (XLR)

• Network: 1 (RJ-45)

• USB TO HOST: 1 (USB Type-B, USB2.0)


• Phones: 1 (TRS Phones)

• DC: 1 (XLR 4pin, DC power IN)

• User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder

• Sampling frequency rate: 96 kHz / 48 kHz

• Frequency response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT

• Total harmonic distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1

• Power consumption: 43 W

• Dimensions: 320 mm x 140 mm x 455 mm

• Net weight: 6.5 kg

• Included Accessories: Owner's Manual, Power Adapter, Download Information


Model # VEH2230
Barcode # 4957812669511
Brand Yamaha

5 Years.
