Denon DN-312X 12-Channel Line Mixer

SKU: DN312X

$429.00
Share:

or 4 payments of $107.25 with Info

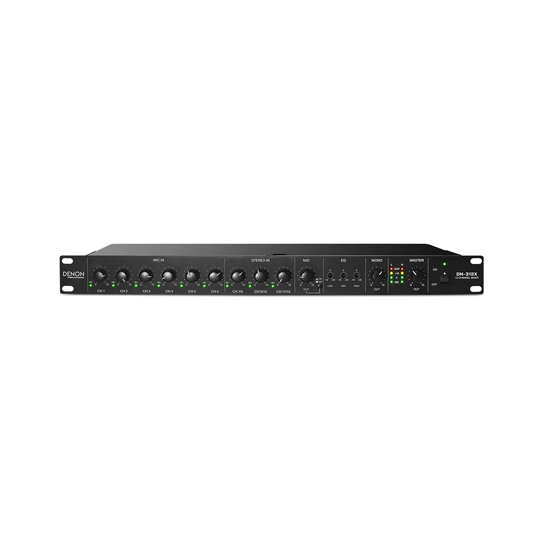

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges.

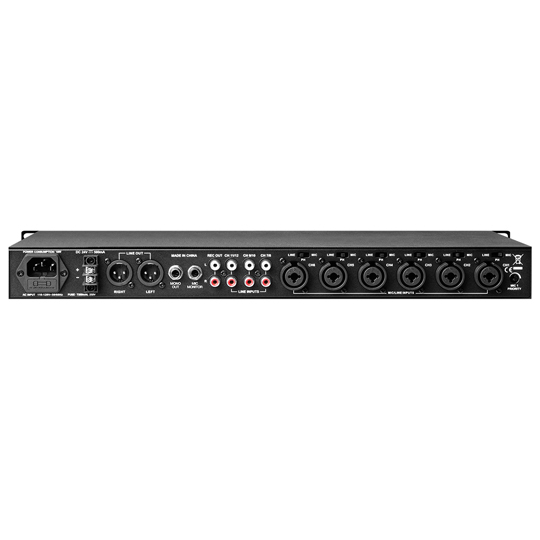

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre’s) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals.



The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, it has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variety of applications; everything from a classroom to a tour bus.



For more information, please visit the manufacturer's website.



Denon DN312X Specs:



Input Channels

Microphone Input: 6 Balanced XLR Connectors (Channels 1–6)

Frequency Response: 20 Hz - 22 kHz

THD+N: < 0.03% @ 1 kHz

Sensitivity: -40 dBu

Maximum Input: -19 dBu

Maximum Voltage Gain:

  • 60 dB (Mic Input to Line Out, Mic Out & Mono Out)

  • 50 dB (Mic Input to Rec Out)



Signal-to-Noise Ratio: > 103 dB

Phantom Power: 18–21 V, switch control

Line Inputs: 6 Balanced XLR Connectors (Channels 1–6)

Frequency Response: 20 Hz - 22 kHz

THD+N: < 0.03% @ 1 kHz

Sensitivity: 0 dBu

Maximum Input:

  • +21 dBu

  • +21 dBu



Maximum Voltage Gain:

  • 20 dB (Mic Input to Line Out, Mic Out & Mono Out)

  • 10 dB (Mic Input to Rec Out)

  • 10 dB (Line Input to Line Out)

  • 0 dB (Line Input to Rec Out)

  • 4 dB (Line Input to Mono Out)



Signal-to-Noise Ratio: > 103 dB

Stereo Balanced RCA Connectors (Channels 7/8-11/12)

THD+N: < 0.03% @ 1 kHz

Sensitivity: +10 dBu

Signal-to-Noise Ratio: > 103 dB



Impedance:

Mic/Line Input: 1.4 kΩ

Line Input: > 10 kΩ

All Outputs: 120 Ω



Equalizer

High: +15 dB @ 12 kHz

Mid: +12 dB @ 2.5 kHz

Low: +15 dB @ 80 Hz



Crosstalk

Adjacent Inputs:

  • < -70 dB @ 1 kHz (Channels 1–6)

  • < -68 dB @ 1 kHz (Channels 7/8–11/12)



Input to Output: < -82 dB @ 1 kHz



Main MixOutput

Line Output: 0 dBu (+2 dBu), balanced

Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced

Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks

Noise (Bus): < -83 dB @ 20 Hz – 22 kHz



General:

Power connection: IEC

Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V

Dimensions (width x depth x height): 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)

Weight: 6.4 lbs (2.9 kg)



SKU DN312X
Model # DN-312X
Barcode # 0694318019399
Brand Denon

12 Months



Denon DN312X Features:



  • 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches

  • 6 mono (3 stereo) RCA Inputs

  • Mic monitor 1/4” output for private listening of all mic inputs

  • Balanced XLR line outputs

  • Mono 1/4” line output can be used to feed audio to external recording device

  • AC or 24V DC power inputs

  • Mic 1 Priority Control

  • Master and Individual level controls

  • 1U rack mountable
