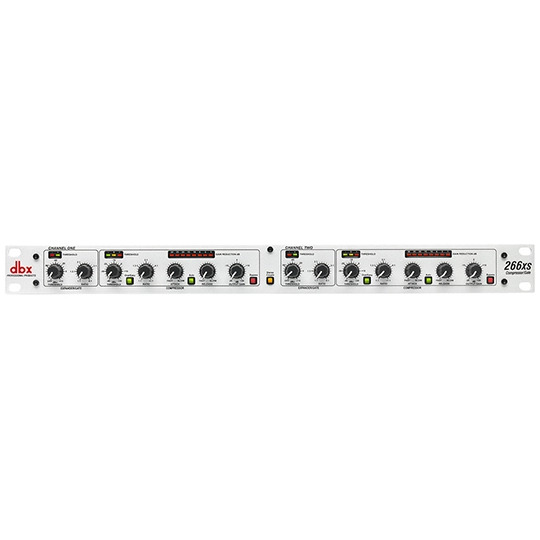

DBX 266xs Dual Compressor/Gate

SKU: dbx266xs


or 4 payments of $99.75 with Info

Adding a dbx 266xs Dual Compressor/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound.


Adding a dbx 266xs Dual Compressor/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments.


The 266xs is the latest in a long line of the world's most successful compressors from DBX. Its patented Overeasy compression technology provides smooth and musical performance while the AutoDynamic™ attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 266xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.



For more information on DBX, please visit the DBX Professional audio website.

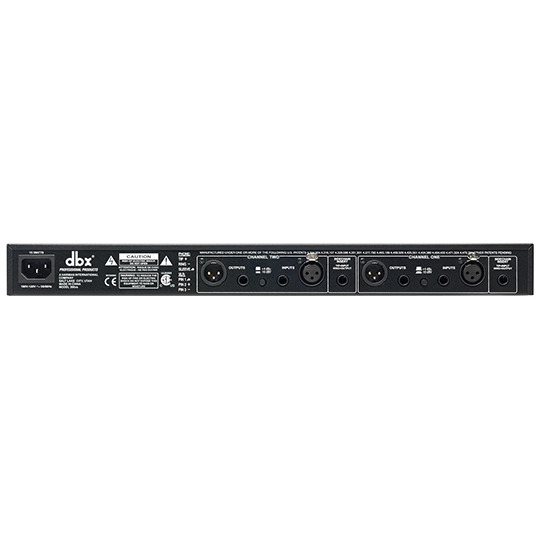

  • Input Connectors: 1/4" TRS and female XLR (pin 2 hot)

  • Output Connectors: 1/4” TRS, male XLR (pin 2 hot)

  • Sidechain: 1/4” TRS Phone, Normalled: Ring = Output (send); tip = Input (return)

  • Compressor Threshold Range: -40dBu to +20dBu

  • Compressor Threshold Characteristic: Selectable OverEasy® or hard knee

  • Compressor Ratio: 1:1 to Infinity:1

  • Compressor Attack Time: Scalable Program-Dependent AutoDynamic™

  • Compressor Release Time: Scalable Program-Dependent AutoDynamic™

  • Expander/Gate Threshold Range: -60dBu to +15dBu

  • Expander/Gate Ratio: 1:1 to 4:1

  • Expander/Gate Attack: Time <100µs

  • Expander/Gate Release Time: Program-dependent

  • Bandwidth: 0.35Hz - 90kHz, +0/-3dB

  • Frequency Response: Flat: 20Hz-20kHz, +0, -0.5dB

  • Noise: <-93dBu unweighted (22kHz measurement bandwidth)

  • THD+Noise: Typically <0.2%; Any Amount of Compression @1kHz


SKU dbx266xs
Model # DBX266XSV-EU
Brand DBX

2 Years.


  • Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes

  • New gate timing algorithms ensure the smoothest release characteristics

  • Program-adaptive expander/gates

  • Great sounding dynamics control for any type of program material

  • Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup

  • Stereo or dual-mono operation

  • Balanced inputs and outputs on 1/4" TRS and XLR connectors

  • Side Chain insert

  • Classic dbx "Auto" mode
