AKG C414XLS Multi Pattern Condenser Microphone

SKU: C414XLS

Have a Question

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

Flexibility for any situation

The C414 XLS offers nine pickup patterns which enable you to choose the perfect setting for every application. In addition to the five patterns traditionally offered by the C414 (omnidirectional, wide cardioid, cardioid, hypercardioid, and figure eight), you also get four intermediate settings that let you dial in the best pattern to suit your environment. It also features an astoundingly low noise floor and a 152dB dynamic range, making the C414 XLS ideal for any musical environment. A locking mode allows you to disable all of the C414 XLS's controls for live-sound applications and permanent installations, and a special "Peak Hold" LED displays even shortest overload peaks.

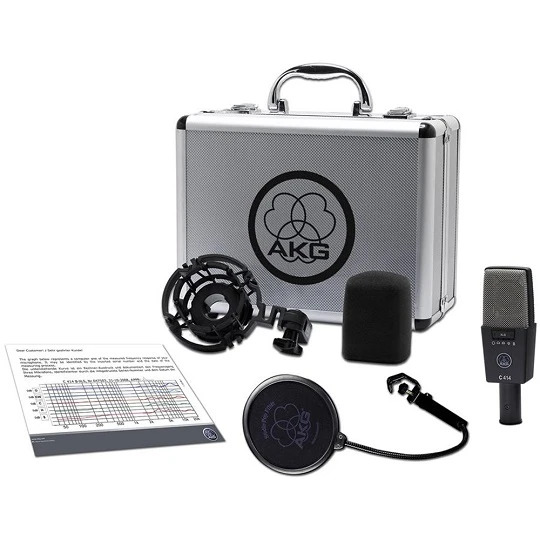

What's in the Box?

1 x C414 XLS Microphone
1 x H85 Universal Shock Mount
1 x Metal Carrying Case
1 x PF80 Pop Filter
1 x W414 Windscreen C414

For more detailed information on the AKG range, please visit the manufacturer's website.

SKU	C414XLS
Model #	3059X00050
Barcode #	885038025917
Brand	AKG

3 Years when registered at https://cmi.com.au/warranty-registration within 30 days of purchase.

Omni, wide cardioid, cardioid, hypercardioid, figure eight, and four intermediate pickup patterns
Lock Mode disables all controls easily for live and installation use
Incredible Dynamic Range of 152 dB
Three different bass cut filters and three pre-attenuation levels
Peak Hold LED detects even shortest overload peaks
Includes carrying case, pop filter, windscreen, and spider-type shock mount
Frequency range: 20 to 20 000 Hz
Sensitivity: 20 mV/Pa (-34 dBV) +/- 0.5 dB
Max. SPL: 200/400/800/1600 Pa = 140/146/152/158 dB (0/-6/-12/-18 dB) for 0.5% THD
Equivalent noise level: 6 dB-A (0 dB preattenuation) (IEC 60268-4)
Signal/noise ratio: 88 dB
Preattenuation pad: 0 dB, -6 dB, -12 dB, -18 dB, switchable
Bass cut filter slope: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Impedance: <=200 ohms
Recommended load impedance: >= 2,200 ohms
Powering: approximately 4 mA
Connector: 3-pin XLR to IEC
Dimensions: 50 x 38 x 160 mm (2.0 x 1.5 x 6.3 in.)
Net weight: 300g (10.6oz.)
Requires +48V phantom power
