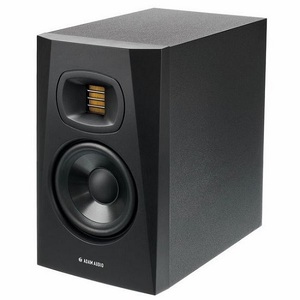

Adam Audio T5V 5" Two-Way Nearfield Studio Monitor

SKU: T5V

WAS $299.00
RRP $299.00
NOW $255.00
SAVE 15%!
Sale Ends in
00:00 am, 6 December 2023
Share:

or 4 payments of $63.75 with Info



ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.






The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.



With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.



A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.



Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.



If you need to hear more bottom end, the T5V is compatible with the ADAM Audio T10S subwoofer.



For more information on the Adam Audio T5V, please visit the manufacturer's website.





WOOFER

  • Number: 1

  • Basket Ø: 5" (127 mm)

  • Voice Coil Ø: 1" (26 mm)

  • Cone Material: Polypropylene



TWEETER

  • Number: 1

  • Type: U-ART

  • Diaphragm Area: 4 inch² (2420 mm²)

  • Equiv. Diaphragm Ø: 1.9" (48 mm)

  • Velocity Transform Ratio: 4:1

  • Diaphragm Weight: 0.17 g

  • Waveguide: HPS



BUILT-IN AMPLIFIERS

  • Number: 2

  • Woofer: 1

  • Type: PWM

  • Amp. Power RMS: 50 W

  • Tweeter: 1

  • Type: PWM

  • Amp. Power RMS: 20 W



CONTROL OPTIONS

  • Input Sensitivity: -10 to +4 dB

  • Gain: Yes

  • High Shelf EQ > 5 kHz: - 2 dB, 0 dB, +2 dB

  • Low Shelf EQ < 300 Hz: - 2 dB, 0 dB, +2 dB



INPUT CONNECTORS



  • Analog: XLR / RCA

  • Input Impedance: 10 kOhm / 20 kOhm



SKU T5V
Model # T5V
Brand Adam Audio

Two Years, or Five Years with FREE extended warranty registration with the manufacturer within 30 days of purchase.

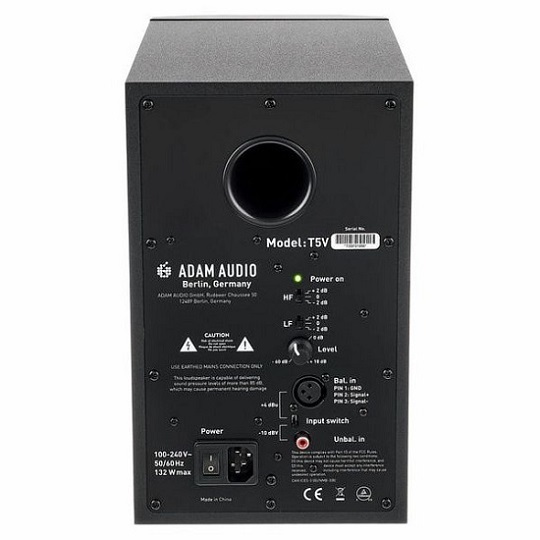

  • Panel: Rear

  • Frequency Response: 45 Hz - 25 kHz (-6 dB)

  • THD > 80 Hz: 0.5 %

  • Max. SPL per pair at 1 m: ≥106 dB

  • Crossover Frequency: 3 kHz

  • Max. Power Consumption: 132 W

  • Weight: 12.6 lbs (5.7 kg)

  • Height x Width x Depth: 11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)

  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

  • Delivery Contents: Power cord, Quick Start Guide
