Sennheiser EW 112P G4 AS Portable Lavalier Set (Frequency Band AS)

SKU: EW112P-G4-AS

Portable Wireless lavalier with on-camera mount.

The Sennheiser EW 112P G4 Portable Wireless Lavalier Set is right at home on top of any camera or for capturing field recordings. Eventually, you’ll most likely get to a point in your filmmaking career when you realize that audio quality is just as important as video quality when it comes to creating compelling content. And at a certain point, reliability and consistency become the top priorities when recording wireless audio while on set or in the field. Enter the evolution wireless G4 100 Series—the next level in your journey as a professional filmmaker.

The evolution of wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Frequency range: AS 520 - 558 MHz

Sennheiser EW 112 G4 Features at a Glance:

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers the excellent sound quality, simple mounting and ease of use. The 112P features our Omni-directional ME 2-II lavalier microphone
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time

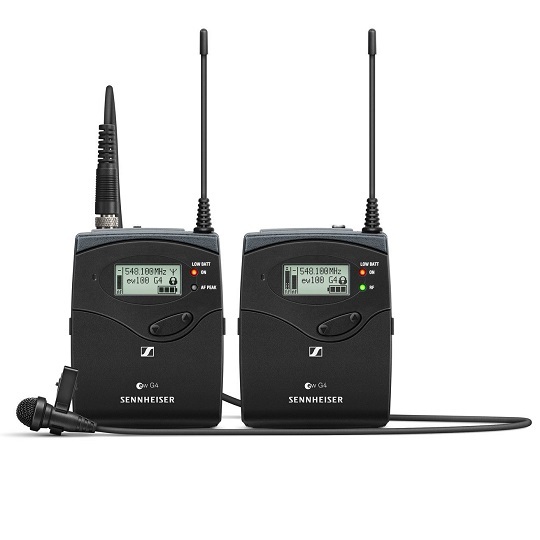

What's in the box?

EK 100 G4 camera receiver
SK 100 G4 bodypack transmitter
ME 2 clip-on microphone (ew 112 P variants only)
4 AA batteries
CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 100 XLR to 3.5 mm jack adapter cable
quick guide
safety guide
manufacturer declaration sheet

Sennheiser EW 112P G4 Tech Specs:

Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio ≥ 110 dBA
Switching bandwidth up to 42 MHz
Peak deviation +/- 48 kHz
Nominal deviation +/- 24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 ?A
Adjacent channel rejection ≥ 65 dB
Intermodulation attenuation ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dB?V middle: 15 dB?V high: 25 dBμV
Temperature Range -10 ?C to +55 ?C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB

SK 100 G4

Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Signal-to-noise ratio ≥ 110 dBA
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation +/- 48 kHz
Nominal deviation +/- 24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 ?A
Input impedance 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response Mic: 80 ? 18,000 Hz Line: 25 ? 18,000 Hz
Temperature Range -10 ?C to +55 ?C
Frequency stability ≤ +/- 15 ppm

ME 2

Connector 3.5 mm jack
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
Cable length approx. 1.60 m
Transducer principle pre-polarized condenser microphone
Pick-up pattern omnidirectional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Equivalent noise level 36 dB

SKU	EW112P-G4-AS
Model #	509557
Barcode #	4044155262087
Brand	Sennheiser

2 Years

Sennheiser EW 112P G4 Features:

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 meters / 330 feet
Up to 8 hours of operation time
