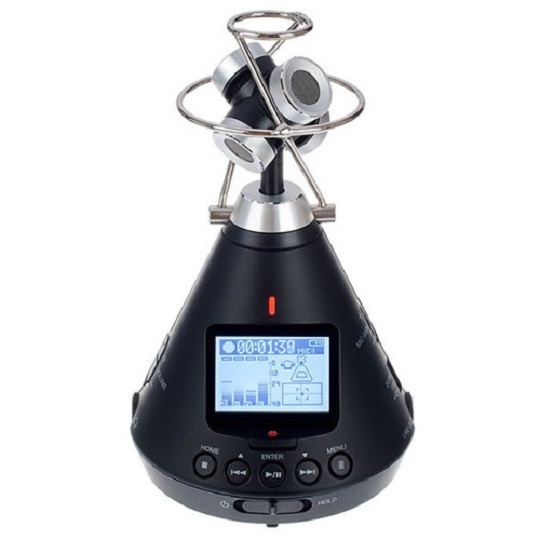

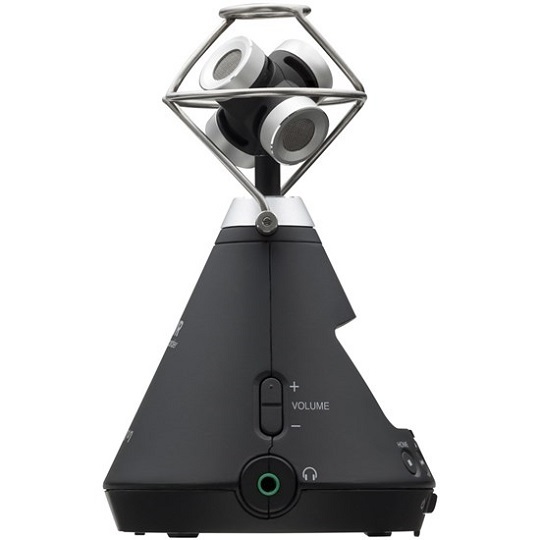

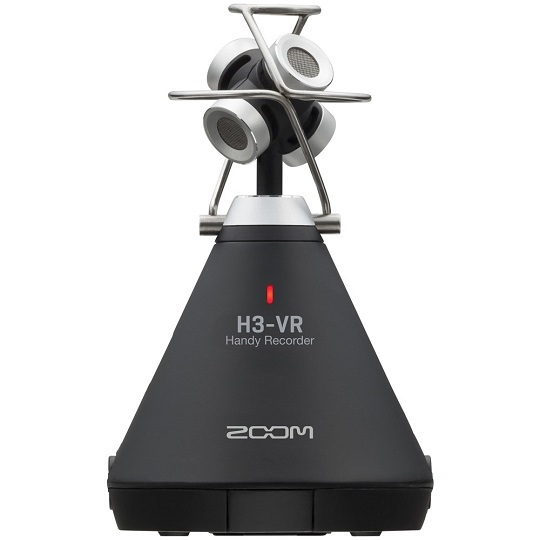

Zoom H3VR Handy Recorder for 360/VR Audio

Virtual Reality 360 Audio

SKU: H3-VR

$599.00
RRP $749.00
SAVE $150.00
Share:



One-Stop VR Audio

The Zoom H3-VR virtual reality audio recorder is the complete solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in the palm of your hand.



A New Way to go from A to B

In the past, capturing VR audio required a dedicated Ambisonic mic, a separate recorder and a computer for encoding the audio from raw Ambisonics A format to VR-ready Ambisonics B format. Now, with the H3-VR, all of the encoding and decoding is done on board, saving time, money and effort at every step.



Audio For Every Reality

Ambisonics Audio for VR

The H3-VR’s 4-capsule Ambisonic mic captures precise 360-degree VR audio recordings up to 24 bit/96 kHz. And without ever connecting to a computer, the onboard decoder allows you to export Ambisonics B-format files directly.

Binaural 3D Stereo
The H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that enhances 2D productions with 3D audio.

Standard Stereo
The H3-VR even offers standard stereo recording for recordings that will be played out of speakers rather than headphones.

5.1ch Surround for Video

Free to download, ZOOM Ambisonics Player software can easily convert Ambisonics audio to a 5.1ch surround file that is pre-aligned to the proper speakers, and is exported to your video or audio editor for syncing with standard video.

Live Streaming
 360
The H3-VR also enables you to live stream events in 360 degrees so that wherever your fans are, they’ll have access to the best seats in the house.



Zoom H3-VR on location

6-Axis Motion Sensor

Auto Mic Position and Level Detection make placing the H3-VR simple. Whether positioned upright, upside down, endfire or endfire inverted, the H3-VR automatically calibrates so your audio and video are already aligned for post.

The slam of dungeon doors, growl of monsters or howl of the wind can make or break a player’s fantasy. With the ability to capture high-quality in-game audio, you can elevate your player’s experience to new levels.



Monitoring & Playback

You can also monitor your audio live in stereo binaural or use the H3-VR’s onboard Ambisonics Decoding to simulate your recorded 360-experience during playback.



Out of the Shot But in Control


Obviously, when you're recording a 360-degree video, if can be tricky to stay out of shot which is why the H3 Control App lets you remotely access transport controls, level settings, and metadata notes right from your iOS device. Sweet!  *Optional BTA-1 adapter required



360º Post-Production Made Easy

Then, once you've recorded the H3-VR’s companion ZOOM Ambisonics Player software takes the work out of post-production by easily converting your Ambisonics files to Stereo, Binaural, 5.1ch surround and more. Play, trim, re-orientate and export your audio files in minutes.



What's in the Box?

What's Included

  • H3-VR Handy Recorder
  • Foam windscreen
  • Dual mounting bracket
  • AA batteries

Optional Accessories

  • BTA-1 Bluetooth Adapter
  • WSU-1 Hairy Windscreen





For more information on the Zoom H3-VR check out their website

Buy your Zoom H3-VR Recorder from your Zoom experts in Brisbane - Musiclab!

Zoom H3-VR 360/Virtual Reality Handy Recorder Tech Specs:



Recording Media:

Cards compatible with microSD/microSDHC/microSDXC specifications
(Class 4 or higher)

Recording formats:

Ambisonics  A,  Ambisonics  B  (FuMa/AmbiX)
WAV  4ch  poly  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48  kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit
Stereo
WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit,  96  kHz/16-bit,  96  kHz/24-bit
Binaural
WAV  stereo  (supports  BWF  and  iXML):  44.1  kHz/16-bit,  44.1  kHz/24-bit,  48kHz/16-bit,  48  kHz/24-bit

Display:

1.25" monochrome LCD (96×64)

Motion sensor:

6 axes (3-axis gyro, 3-axis acceleration)

Built-in Ambisonic mic:

4 matched unidirectional condenser mics
Maximum sound pressure input: 120 dB SPL
Mic gain: +18 – +48 dB

LINE OUT:

Connector: 3.5 mm stereo mini
Maximum output level: −10 dBu (1 kHz, 10 kΩ load)

PHONE OUT:

Connector: 3.5 mm stereo mini
Maximum output level: 20 mW + 20 mW (into 32Ω load)

USB:

Connector: microUSB

Mass storage operation

  • USB 2.0 High Speed

Audio interface operation

  • 2 in/2 out (stereo/binaural input), USB 2.0 Full Speed
  • 44.1 kHz/16-bit, 48 kHz/16-bit
  • 4 in/2 out ( Ambisonics A/FuMa/AmbiX input), USB 2.0 High Speed
  • 44.1 kHz/24-bit, 48 kHz/24-bit
Power:

2 AA batteries (alkaline, rechargeable NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A (supports USB bus power)

Estimated continuous recording time using batteries:

48 kHz/24-bit, FuMa Rec Mode

  •  Alkaline batteries: about 11.5 hours
  •  NiMH batteries (1900 mAh): about 11.5 hours
  •  Lithium batteries: about 24 hours



    • The above values are approximate.
    • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
External dimensions:

76 mm (W) × 78 mm (D) × 123 mm (H)

Weight (main unit only):

120 g

SKU H3-VR
Model # H3-VR
Brand Zoom

Zoom H3-VR 360/Virtual Reality Handy Recorder Features:

  •     4 built-in mics arranged in an Ambisonic array
  •     Full-sphere surround sound recording
  •     Single-knob gain control of all input levels
  •     Onboard Ambisonics A to B decoding
  •     Three recording modes: Ambisonics, Stereo Binaural or Standard Stereo
  •     Record up to 24bit/96kHz
  •     Stereo binaural monitoring of Ambisonics signal
  •     Headphone output and line output
  •     Slate tone
  •     Extensive metadata
  •     Auto Mic Position Detection using 6-axis gyroscope (upfront, endfire,
  •     upside-down, endfire inverted)
  •     Level Function to ensure precise angle placement
  •     Wireless iOS remote control available through the BTA-1 Bluetooth adapter
  •     Onboard Ambisonics playback with audio rotation
  •     Accurate internal clock with .5ppm discrepancy
  •     USB 2.0 Audio Interface Mode
  •     Zoom PC/Mac post-production software to play, change a direction, and convert
  •     to binaural, stereo,and 5.1ch surround file
  •     Powered by 2 AA batteries or USB bus power
  •     Records to SD card up to 512GB
