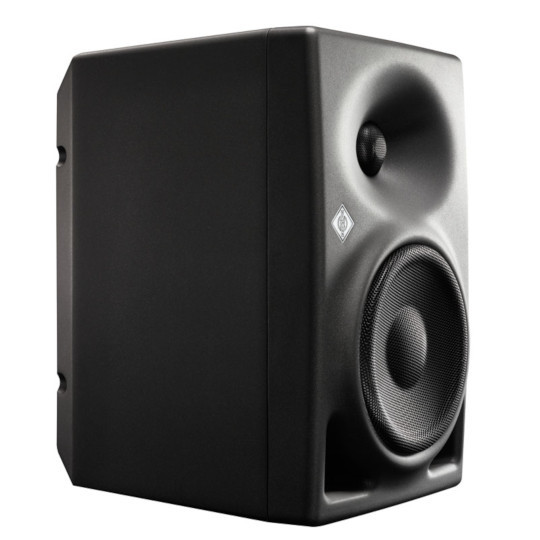

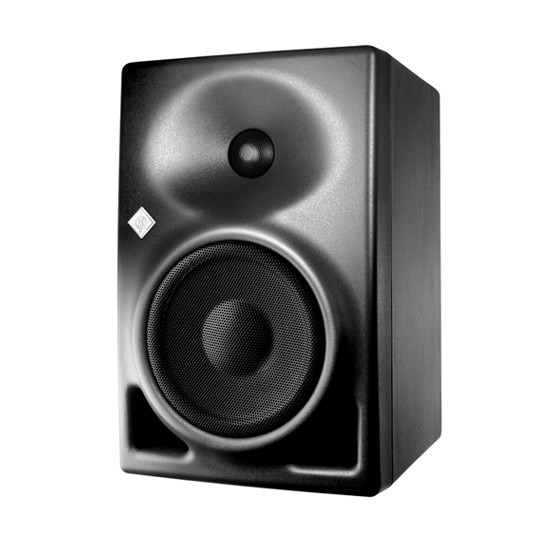

Neumann KH 120 5.25" Powered Studio Monitor (Single)

SKU: KH120AG

$955.00
RRP $1,169.00
SAVE $214.00
Share:



Mastering-grade Monitor made by an audio industry household name

The Neumann KH 120 A can serve as a near-field monitor in stereo speaker systems or as a rear speaker in multi-channel systems. Its treble driver is mounted into an elliptical Mathematically Modeled DispersionTM waveguide, resulting in reduced audio distortion, smoother off-axis response and more accurate frequency reproduction.

A compact aluminium cabinet with large front ports ensure resonant frequencies and bass compression is minimised, allowing the KH 120 A to be mounted in tight spaces. Powerful analog class AB amplifiers with a large amount of headroom provide improved transient response. Neumann’s high level of quality control and production consistency mean that any two KH 120 A monitors can be considered matched pairs. The KH 120 A is perfect for use in recording studios, broadcast applications, post-production and mastering houses.

Please note: This product is a single side KH120AG Monitor. Order 2 for a complete pair.



Best working environment: Close to professional ears

The KH 120 is typically used in near-field applications such as project, music, broadcast and post-production studios for recording, mixing and mastering. It it also available as a digital input “D” version.



Neumann KH 120 In a Nutshell:

Powerful compact bi-amplified studio monitor with superb impulse response and resolution.

  • Compact bi-amplified studio monitor with a high efficiency

  • Exceptional bass depth and transient response from 52 to 21k Hz

  • Precise dispersion, optimized for near-field applications

For more detailed information, please visit Neumann's website.

Buy your Neumann KH120 studio monitors at the right price from your Neumann specialists - Musiclab in Brisbane!



Neumann KH120 Studio Monitor Specs:

Free field frequency response ±6 dB     46 Hz … 24 kHz
Free field frequency response ±3 dB     52 Hz … 21 kHz
Free field frequency linearity deviation between 100 Hz and 10 kHz     ± 1.0 dB
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced     ±0.97; ±0.40; ±0.23 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)     <20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space     95 dB SPL (>120 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)     111.1 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz)     105.1 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz)     104.8 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions     107 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range)     97 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer)     104 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range)     88 / 93 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer)     89 / 94 dB(C) SPL
Analog input(s)     XLR: analog electronically balanced
Analog input impedance     10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m
Max. input level     +24 dBu
Common mode rejection ratio (CMRR)     >56 dB @ 15kHz
Input gain control (sensitivity)     0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level)     94; 100; 108; 114 dB SPL
Controller design     Analog; active
Crossover frequency     2.0 kHz
Crossover slope     24 dB/oct; 4th order
Equalization: Bass     0; -2.5; -5; -7.5 dB
Equalization: Low-Mid     0; -1.5; -3; -4.5 dB
Equalization: Treble     +1; 0; -1; -2 dB
Protection circuitry     Independent thermo limiters for woofer, tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
Infrasonic filter: frequency; slope     30 Hz; 6 dB/Oct.
Display: On; Normal Operation     Neumann logo “White”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute     Neumann logo “Red”
Display Brightness     White:on/dimmed/off; Red:on/dimmed
Output power woofer amplifier (THD+N with limiter deactivated: 10%)     80 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%)     80 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%)     50 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%)     50 W
Mains Power Supply: input voltage; frequency     100-240V; 50/60 Hz
Power consumption (230 V / 100 V): Idle     20 W
Power consumption (230 V / 100 V): Full output     200 W
In-rush current (Peak)     20 A
Cabinet material     Aluminium
Cabinet surface finish; color (front / back)     Painted; metallic anthracite (RAL 7021)
Operating conditions     +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing
Transport/storage conditions     -25° C to +70° C (-13° F to 158° F); <90% RH, non-condensing
Woofer     130 mm (5.25") magnetically shielded with protecting black metal grille
Tweeter     25 mm (1") with protecting black metal grille
Mounting points     2 x M8 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”)
Product dimensions (height x width x depth)     277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)
External net volume     9.7 liters
Product weight     6.4 kg (14 lbs 2 oz)
Packed dimensions (height x width x depth), mm (inches)     415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”)
Packed weight     8.4 kg (18 lbs 8 oz)
Packed cube     0.042 m³

SKU KH120AG
Model # 503930
Brand Neumann

Neumann KH 120 Features:

  • Compact bi-amplified nearfield studio monitor
  • 5.25" low-frequency driver (50W), 1" high-frequency driver (50W)
  • Elliptical Mathematically Modelled Dispersion (MMD) waveguide provides smooth off-axis response and accurate monitoring in non-ideal acoustical environments
  • Powerful titanium fabric dome tweeter delivers low-distortion and high-frequency reproduction
  • Composite sandwich cone woofer designs dampen breakup modes and reduce harmonic distortion
  • Free-field frequency response: 52Hz to 21kHz (+/-3dB)
  • Self-generated noise (with input gain set to 100dB for 0dBu): <20dB(A) at 10cm
  • Maximum SPL: (half space at 3% THD at 1m): 111.1dB SPL, averaged 100Hz to 6kHz
  • Crossover frequency: 2kHz
  • Crossover slope: 24dB/octave, 4th order
  • Bass equalization: 0dB, -2.5dB, -5dB, -7.5dB
  • Mid equalization: 0dB, -1.5dB, -3dB, -4.5dB
  • High equalization: +1dB, 0dB, -1dB, -2dB
  • Protection circuitry: low and high limiter
  • Input: XLR, >10 kOhms
  • Input gain control (sensitivity): -15dBu to 0dBu
  • Output level control: 94dB, 100dB, 108dB, 114dB SPL
  • Dimensions: 277 x 182 x 220 mm
